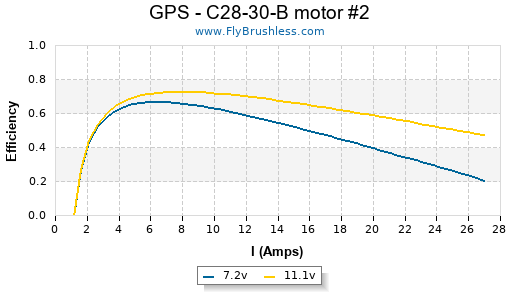

GPS - C28-30-B motor #2



Specifications

  • Type: Outrunner
  • Weight: 58.00g (2.05oz)
  • Maximum Amps: 15

Constants

  • kV: 1200
  • Rm: 0.21
  • Io: 1.17



Io Test Data

Dr Kiwi test results
Volts Amps RPM
10.035 1.17 11700

Test Data

Dr Kiwi test results
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
GWS HD 7x3.5 1 7 2.8 19 7800 25.9 148 5.22 93%
GWS HD 7x3.5 1 7.9 3.3 26 8820 29.2 189 6.67 93%
GWS HD 7x3.5 1 8.9 3.9 34 9780 32.4 239 8.43 92%
GWS HD 7x3.5 1 9.9 4.5 44 10770 35.7 295 10.41 91%
GWS HD 7x3.5 1 10.9 5.15 56 11700 38.8 352 12.42 89%
GWS HD 8x4 1 7 4.95 34 7260 27.5 286 10.09 86%
GWS HD 8x4 1 7.9 6 47 8070 30.6 358 12.63 85%
GWS HD 8x4 1 8.9 7.1 63 8910 33.8 440 15.52 83%
GWS HD 8x4 1 9.9 8.3 82 9720 36.8 532 18.77 82%
