XMotor - 2826CA-15T
Specifications
- Type: Outrunner
- Weight: 44.00g (1.55oz)
- Diameter: 28.00mm (1.10in)
- Length: 26.00mm (1.02in)
- Shaft Diameter: 3.17mm (0.12in)
- Maximum Amps: 15
Constants
- kV: 1200
- Rm: 0.134
- Io: 0.64
Test Data

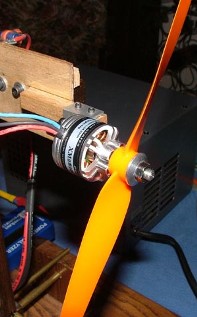

Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| GWS HD 7x3.5 | 1 | 6.9 | 2.4 | 16 | 7950 | 26.4 | 141 | 4.97 | 96% |
| GWS HD 7x3.5 | 1 | 7.9 | 2.95 | 23 | 9030 | 29.9 | 183 | 6.46 | 95% |
| GWS HD 7x3.5 | 1 | 8.9 | 3.5 | 31 | 10020 | 33.2 | 233 | 8.22 | 94% |
| GWS HD 7x3.5 | 1 | 9.9 | 4.15 | 41 | 10950 | 36.3 | 288 | 10.16 | 92% |
| GWS HD 7x3.5 | 1 | 10.9 | 4.8 | 52 | 11910 | 39.5 | 345 | 12.17 | 91% |
| GWS HD 7x3.5 | 1 | 14.7 | 8.05 | 118 | 15450 | 51.2 | 614 | 21.66 | 88% |
| APC SF 7x6 | 1 | 6.9 | 6.1 | 42 | 7050 | 40.1 | 247 | 8.71 | 85% |
| APC SF 7x6 | 1 | 7.9 | 7.6 | 60 | 7800 | 44.3 | 305 | 10.76 | 82% |
| APC SF 7x6 | 1 | 8.9 | 9.2 | 81 | 8490 | 48.2 | 366 | 12.91 | 79% |
| APC SF 7x6 | 1 | 9.9 | 10.8 | 106 | 9150 | 52.0 | 424 | 14.96 | 77% |
| APC SF 7x6 | 1 | 10.9 | 12.65 | 137 | 9750 | 55.4 | 489 | 17.25 | 75% |
| GWS HD 8x4 | 1 | 6.9 | 4.7 | 32 | 7350 | 27.8 | 286 | 10.09 | 89% |
| GWS HD 8x4 | 1 | 6.9 | 4.95 | 34 | 7470 | 28.3 | 295 | 10.41 | 90% |
| GWS HD 8x4 | 1 | 7.9 | 5.85 | 46 | 8280 | 31.4 | 365 | 12.87 | 87% |
| GWS HD 8x4 | 1 | 7.9 | 6 | 47 | 8340 | 31.6 | 368 | 12.98 | 88% |
| GWS HD 8x4 | 1 | 8.9 | 7.25 | 64 | 9240 | 35.0 | 455 | 16.05 | 87% |
| GWS HD 8x4 | 1 | 8.9 | 7 | 62 | 9090 | 34.4 | 443 | 15.63 | 85% |
| GWS HD 8x4 | 1 | 9.9 | 8.3 | 82 | 9900 | 37.5 | 530 | 18.70 | 83% |
| GWS HD 8x4 | 1 | 9.9 | 8.5 | 84 | 9960 | 37.7 | 541 | 19.08 | 84% |
| GWS HD 8x4 | 1 | 10.9 | 9.55 | 104 | 10650 | 40.3 | 621 | 21.91 | 81% |
| GWS HD 8x4 | 1 | 10.9 | 9.85 | 107 | 10710 | 40.6 | 630 | 22.22 | 82% |
| GWS HD 8x6 | 1 | 6.9 | 7.25 | 50 | 6720 | 38.2 | 324 | 11.43 | 81% |
| GWS HD 8x6 | 1 | 7.9 | 8.9 | 70 | 7470 | 42.4 | 400 | 14.11 | 79% |
| GWS HD 8x6 | 1 | 8.9 | 10.5 | 93 | 8100 | 46.0 | 470 | 16.58 | 76% |
| GWS HD 8x6 | 1 | 9.9 | 12.4 | 122 | 8790 | 49.9 | 550 | 19.40 | 74% |
| GWS HD 8x6 | 1 | 10.9 | 14.15 | 154 | 9270 | 52.7 | 629 | 22.19 | 71% |
| APC SF 8x6 | 1 | 6.9 | 9.7 | 66 | 6120 | 34.8 | 384 | 13.55 | 74% |
| APC SF 8x6 | 1 | 7.9 | 11.8 | 93 | 6660 | 37.8 | 450 | 15.87 | 70% |
| APC SF 8x6 | 1 | 8.9 | 14.2 | 126 | 7110 | 40.4 | 535 | 18.87 | 67% |
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
| APC SF 8x6 | 1 | 9.9 | 16.4 | 162 | 7500 | 42.6 | 600 | 21.16 | 63% |
| APC SF 8x6 | 1 | 10.9 | 19 | 207 | 7860 | 44.7 | 672 | 23.70 | 60% |
| APC E 8x6 | 1 | 6.9 | 8.3 | 57 | 6450 | 36.6 | 323 | 11.39 | 78% |
| APC E 8x6 | 1 | 7.9 | 10.15 | 80 | 7140 | 40.6 | 397 | 14.00 | 75% |
| APC E 8x6 | 1 | 8.9 | 11.85 | 105 | 7650 | 43.5 | 470 | 16.58 | 72% |
| APC E 8x6 | 1 | 9.9 | 14.05 | 139 | 8250 | 46.9 | 546 | 19.26 | 69% |
| APC E 8x6 | 1 | 10.9 | 16.1 | 175 | 8700 | 49.4 | 622 | 21.94 | 67% |
| APC SF 9x4.7 | 1 | 6.9 | 8.3 | 57 | 6450 | 28.7 | 440 | 15.52 | 78% |
| APC SF 9x4.7 | 1 | 7.9 | 9.9 | 78 | 7140 | 31.8 | 536 | 18.91 | 75% |
| APC SF 9x4.7 | 1 | 8.9 | 11.6 | 103 | 7770 | 34.6 | 635 | 22.40 | 73% |
| APC SF 9x4.7 | 1 | 9.9 | 13.4 | 132 | 8430 | 37.5 | 746 | 26.31 | 71% |
| APC SF 9x4.7 | 1 | 10.9 | 15.2 | 165 | 9000 | 40.1 | 844 | 29.77 | 69% |
| GWS HD 9x5 | 1 | 6.9 | 7.65 | 52 | 6600 | 31.2 | 429 | 15.13 | 80% |
| GWS HD 9x5 | 1 | 7.9 | 9.2 | 72 | 7320 | 34.7 | 520 | 18.34 | 77% |
| GWS HD 9x5 | 1 | 8.9 | 11.6 | 103 | 7950 | 37.6 | 629 | 22.19 | 74% |
| GWS HD 9x5 | 1 | 9.9 | 12 | 118 | 8580 | 40.6 | 730 | 25.75 | 72% |
