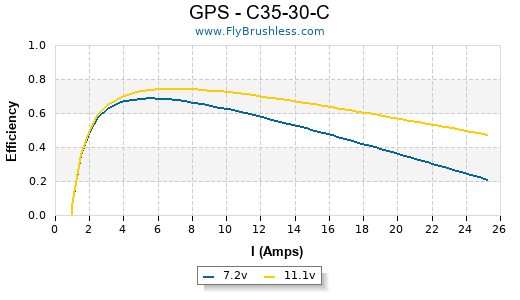

GPS - C35-30-C



Specifications

  • Type: Outrunner
  • Weight: 72.00g (2.54oz)
  • Diameter: 35.00mm (1.38in)
  • Length: 29.80mm (1.17in)
  • Shaft Diameter: 4.00mm (0.16in)
  • Maximum Amps: 20

Constants

  • kV: 1140
  • Rm: 0.224
  • Io: 0.95



Io Test Data

Dr Kiwi test results
Volts Amps RPM
10.55 0.95 11220

Test Data

Dr Kiwi test results
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
GWS HD 9x5 1 6.9 7.05 48 6360 30.1 410 14.46 81%
GWS HD 9x5 1 7.9 8.6 67 7050 33.4 516 18.20 78%
GWS HD 9x5 1 8.9 10.1 89 7710 36.5 616 21.73 76%
GWS HD 9x5 1 9.9 11.65 115 8310 39.4 722 25.47 74%
GWS HD 10x6 1 6.9 9.05 62 5910 33.6 483 17.04 75%
GWS HD 10x6 1 7.9 10.9 86 6450 36.6 592 20.88 72%
GWS HD 10x6 1 8.9 12.7 113 7020 39.9 700 24.69 69%
GWS HD 10x6 1 9.9 14.6 144 7560 43.0 803 28.32 67%
GWS HD 10x6 1 10.9 16.4 178 7980 45.3 906 31.96 64%
GWS HD 11x7 1 7.7 17.7 136 6240 41.4 894 31.53 71%
GWS HD 11x7 1 10.9 27.1 295 7770 51.5 1422 50.16 63%
GWS HD 11x7 1 11 28 308 7860 52.1 1468 51.78 63%
GWS HD 11x7 1 11.1 28.7 318 7950 52.7 1509 53.23 63%
GWS HD 12x8 1 7.4 20.6 152 5430 41.1 961 33.90 64%
GWS HD 12x8 1 7.5 21.1 158 5490 41.6 979 34.53 64%
GWS HD 12x8 1 7.6 22 167 5550 42.0 1021 36.01 64%
