Rimfire - 28-26-1000
Specifications
- Type: Outrunner
- Weight: 41.00g (1.45oz)
- Diameter: 27.95mm (1.10in)
- Length: 27.30mm (1.07in)
- Shaft Diameter: 3.00mm (0.12in)
- Maximum Amps: 12

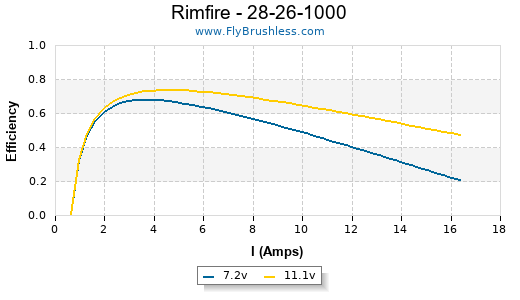

Constants
- kV: 970
- Rm: 0.346
- Io: 0.65
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 0.5 | 6550 |
| 8 | 0.55 | 7490 |
| 10 | 0.65 | 9460 |
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| GWS HD 8x4 | 1 | 7 | 2.6 | 18 | 5970 | 22.6 | 189 | 6.67 | 88% |
| GWS HD 8x4 | 1 | 7.9 | 3.2 | 25 | 6720 | 25.4 | 238 | 8.40 | 88% |
| GWS HD 8x4 | 1 | 9 | 3.85 | 34 | 7470 | 28.3 | 295 | 10.41 | 86% |
| GWS HD 8x4 | 1 | 9.9 | 4.5 | 44 | 8160 | 30.9 | 353 | 12.45 | 85% |
| GWS HD 8x4 | 1 | 10.9 | 5.25 | 57 | 8820 | 33.4 | 417 | 14.71 | 83% |
| GWS HD 8x4 | 1 | 14.7 | 8.55 | 125 | 11100 | 42.0 | 683 | 24.09 | 78% |
| APC SF 9x3.8 | 1 | 6.9 | 5.2 | 35 | 5220 | 18.8 | 267 | 9.42 | 78% |
| APC SF 9x3.8 | 1 | 7.9 | 5.75 | 45 | 5970 | 21.5 | 365 | 12.87 | 78% |
| APC SF 9x3.8 | 1 | 8.9 | 6.85 | 60 | 6420 | 23.1 | 443 | 15.63 | 74% |
| APC SF 9x3.8 | 1 | 9.9 | 8.15 | 80 | 6930 | 24.9 | 523 | 18.45 | 72% |
| APC SF 9x3.8 | 1 | 10.9 | 9.4 | 102 | 7350 | 26.4 | 605 | 21.34 | 70% |
| GWS HD 9x5 | 1 | 6.9 | 4.3 | 29 | 5460 | 25.9 | 285 | 10.05 | 82% |
| GWS HD 9x5 | 1 | 7.9 | 5.25 | 41 | 6090 | 28.8 | 362 | 12.77 | 79% |
| GWS HD 9x5 | 1 | 8.9 | 6.2 | 55 | 6660 | 31.5 | 428 | 15.10 | 77% |
| GWS HD 9x5 | 1 | 9.9 | 7.3 | 72 | 7230 | 34.2 | 511 | 18.02 | 75% |
| APC SF 10x4.7 | 1 | 6.9 | 6.7 | 46 | 4710 | 21.0 | 385 | 13.58 | 70% |
| APC SF 10x4.7 | 1 | 7.9 | 8.1 | 63 | 5130 | 22.8 | 463 | 16.33 | 67% |
| APC SF 10x4.7 | 1 | 8.9 | 9.6 | 85 | 5520 | 24.6 | 552 | 19.47 | 64% |
| APC SF 10x4.7 | 1 | 9.9 | 11 | 108 | 5820 | 25.9 | 630 | 22.22 | 61% |
| APC SF 10x4.7 | 1 | 10.8 | 12.1 | 130 | 6120 | 27.2 | 684 | 24.13 | 58% |
| GWS HD 10x6 | 1 | 6.9 | 5.6 | 38 | 5040 | 28.6 | 349 | 12.31 | 75% |
| GWS HD 10x6 | 1 | 7.9 | 6.75 | 53 | 5580 | 31.7 | 429 | 15.13 | 73% |
| GWS HD 10x6 | 1 | 8.9 | 7.9 | 70 | 6060 | 34.4 | 513 | 18.10 | 70% |
| GWS HD 10x6 | 1 | 9.9 | 9.25 | 91 | 6510 | 37.0 | 594 | 20.95 | 68% |
| GWS HD 10x6 | 1 | 10.9 | 10.35 | 112 | 6870 | 39.0 | 673 | 23.74 | 65% |
| APC SF 11x4.7 | 1 | 7 | 7.8 | 54 | 4200 | 18.7 | 430 | 15.17 | 62% |
| APC SF 11x4.7 | 1 | 7.4 | 8.55 | 63 | 4470 | 19.9 | 476 | 16.79 | 62% |
| APC SF 11x4.7 | 1 | 7.9 | 9.3 | 73 | 4620 | 20.6 | 516 | 18.20 | 60% |
| APC SF 11x4.7 | 1 | 8.9 | 11 | 97 | 4920 | 21.9 | 600 | 21.16 | 57% |
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
| APC SF 11x4.7 | 1 | 9.9 | 12.4 | 122 | 5190 | 23.1 | 677 | 23.88 | 54% |
| APC SF 11x4.7 | 1 | 10.8 | 13.4 | 144 | 5340 | 23.8 | 720 | 25.40 | 51% |
| GWS HD 11x7 | 1 | 6.9 | 7.45 | 51 | 4470 | 29.6 | 428 | 15.10 | 67% |
| GWS HD 11x7 | 1 | 7.8 | 8.75 | 68 | 4860 | 32.2 | 508 | 17.92 | 64% |
| GWS HD 11x7 | 1 | 8.9 | 10.2 | 90 | 5250 | 34.8 | 596 | 21.02 | 61% |
| GWS HD 11x7 | 1 | 9.9 | 11.5 | 113 | 5550 | 36.8 | 666 | 23.49 | 58% |
| GWS HD 11x7 | 1 | 10.8 | 12.7 | 137 | 5820 | 38.6 | 731 | 25.79 | 56% |
