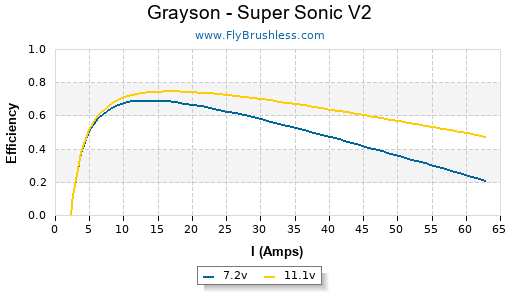

Grayson - Super Sonic V2


Grayson - Super Sonic V2

Specifications

  • Type: Outrunner
  • Weight: 54.00g (1.90oz)
  • Maximum Amps: 28

Constants

  • kV: 2180
  • Rm: 0.09
  • Io: 2.3



Io Test Data

Dr Kiwi test results
Volts Amps RPM
10 2.3 21360

Test Data

Dr Kiwi test results
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
APC E 4.7x4.25 1 6.9 6.65 45 13980 56.3 176 6.21 93%
APC E 4.7x4.25 1 6.9 6.65 45 13980 56.3 176 6.21 93%
APC E 4.7x4.25 1 7.9 8.2 64 15660 63.0 225 7.94 91%
APC E 4.7x4.25 1 7.9 8.2 64 15660 63.0 225 7.94 91%
APC E 4.7x4.25 1 8.8 10.15 89 17310 69.7 275 9.70 90%
APC E 4.7x4.25 1 8.8 10.15 89 17310 69.7 275 9.70 90%
APC E 4.7x4.25 1 9.8 11.4 111 19110 76.9 345 12.17 89%
APC E 4.7x4.25 1 9.8 11.4 111 19110 76.9 345 12.17 89%
APC E 4.7x4.25 1 10.8 13.1 141 20820 83.8 409 14.43 88%
APC E 4.7x4.25 1 10.8 13.1 141 20820 83.8 409 14.43 88%
Zagi Carbon 5.1x4.9 1 6.9 8.95 61 13500 62.6 260 9.17 90%
Zagi Carbon 5.1x4.9 1 7.8 11.05 86 15120 70.2 329 11.61 89%
Zagi Carbon 5.1x4.9 1 8.8 13.4 117 16710 77.5 402 14.18 87%
Zagi Carbon 5.1x4.9 1 9.8 15.8 154 18180 84.4 478 16.86 85%
Zagi Carbon 5.1x4.9 1 10.8 18.5 199 19710 91.5 562 19.82 84%
APC E 5.5x4.5 1 6.9 10.5 72 13230 56.4 255 8.99 88%
APC E 5.5x4.5 1 7.8 12.75 99 14760 62.9 323 11.39 87%
APC E 5.5x4.5 1 8.8 15.25 134 16230 69.2 402 14.18 85%
APC E 5.5x4.5 1 9.7 17.8 172 17820 75.9 498 17.57 84%
APC E 5.5x4.5 1 10.7 20.6 220 19200 81.8 577 20.35 82%
APC E 6x4 1 6.8 10.3 70 13110 49.7 340 11.99 88%
APC E 6x4 1 7.8 12.9 100 14370 54.4 439 15.49 85%
APC E 6x4 1 8.7 15.5 134 16230 61.5 546 19.26 86%
APC E 6x4 1 9.7 18.2 176 17610 66.7 655 23.10 83%
APC E 6x4 1 10.7 21.1 225 18990 71.9 760 26.81 81%
APC E 6x5.5 1 7.8 16.4 127 13950 72.7 461 16.26 82%
APC E 6x5.5 1 8.7 19.5 169 15300 79.7 555 19.58 81%
APC E 6x5.5 1 9.6 22.4 215 16620 86.6 648 22.86 79%
APC E 6x5.5 1 11.2 28.1 314 18360 95.6 800 28.22 75%
