Suppo - A2217K-8T


Suppo - A2217K-8T

Specifications

  • Type: Outrunner
  • Weight: 70.00g (2.47oz)
  • Diameter: 27.60mm (1.09in)
  • Length: 33.60mm (1.32in)
  • Shaft Diameter: 4.00mm (0.16in)
  • Maximum Amps: 22

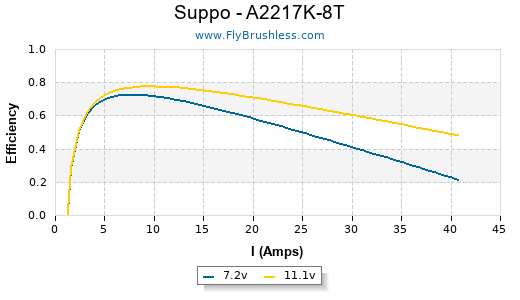

Constants

  • kV: 1175
  • Rm: 0.138
  • Io: 1.15



Io Test Data

Dr Kiwi test results
Volts Amps RPM
7 1 8060
8 1.05 9180
10 1.15 11470

Test Data

Dr Kiwi test results
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
GWS HD 9x5 1 6.9 8.75 60 6960 33.0 482 17.00 86%
GWS HD 9x5 1 7.8 10.55 82 7710 36.5 600 21.16 84%
GWS HD 9x5 1 8.8 12.45 109 8460 40.1 726 25.61 82%
GWS HD 9x5 1 9.8 14.7 144 9180 43.5 863 30.44 80%
APC E 10x5 1 6.8 11.4 77 6480 30.7 586 20.67 81%
APC E 10x5 1 7.8 13.6 106 7170 34.0 717 25.29 78%
APC E 10x5 1 8.7 16.1 140 7800 36.9 863 30.44 76%
APC E 10x5 1 9.7 18.5 179 8370 39.6 1004 35.42 73%
APC E 10x5 1 10.7 21.3 227 8940 42.3 1156 40.78 71%
GWS HD 10x6 1 6.8 11.25 76 6540 37.2 584 20.60 82%
GWS HD 10x6 1 7.8 13.55 105 7200 40.9 718 25.33 79%
GWS HD 10x6 1 8.8 15.9 139 7860 44.7 852 30.05 76%
GWS HD 10x6 1 9.7 18.2 176 8430 47.9 979 34.53 74%
GWS HD 10x6 1 10.7 20.8 222 9030 51.3 1135 40.04 72%
APC E 11x5.5 1 7 14.55 101 6180 32.2 726 25.61 75%
APC E 11x5.5 1 7.4 15.75 116 6420 33.4 791 27.90 74%
