GPS - 2215-25



Specifications

  • Type: Outrunner
  • Weight: 63.00g (2.22oz)
  • Maximum Amps: 20

Constants

  • kV: 960
  • Rm: 0.22
  • Io: 0.9



Io Test Data

Dr Kiwi test results
Volts Amps RPM
10 0.9 9420

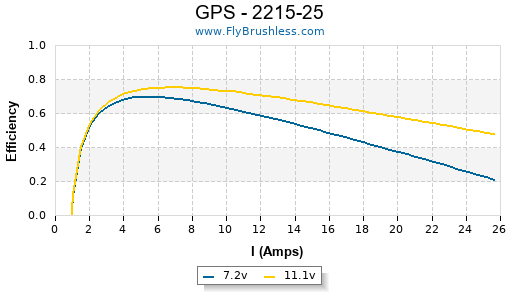

Test Data

Dr Kiwi test results
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
GWS HD 10x6 1 6.9 6.5 44 5400 30.7 395 13.93 82%
GWS HD 10x6 1 7.9 7.9 62 6030 34.3 493 17.39 80%
GWS HD 10x6 1 8.9 9.35 83 6570 37.3 594 20.95 77%
GWS HD 10x6 1 9.9 10.95 108 7170 40.7 698 24.62 75%
GWS HD 10x6 1 10.8 12.4 133 7620 43.3 800 28.22 73%
GWS HD 10x6 1 14.6 19 277 9300 52.8 1200 42.33 66%
GWS HD 11x7 1 6.9 9.25 63 4830 32.0 516 18.20 73%
GWS HD 11x7 1 7.9 11.1 87 5310 35.2 634 22.36 70%
GWS HD 11x7 1 8.9 12.9 114 5700 37.8 728 25.68 67%
GWS HD 11x7 1 9.8 14.7 144 6090 40.4 838 29.56 65%
GWS HD 11x7 1 10.8 16.6 179 6450 42.8 945 33.33 62%
