ARC - 2212-1070



Specifications

  • Type: Outrunner
  • Weight: 56.00g (1.98oz)
  • Diameter: 27.80mm (1.09in)
  • Length: 30.50mm (1.20in)
  • Shaft Diameter: 3.00mm (0.12in)
  • Maximum Amps: 15

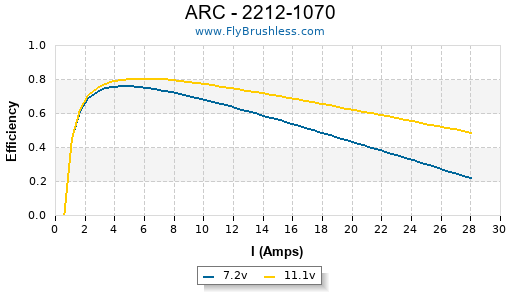

Constants

  • kV: 1125
  • Rm: 0.2
  • Io: 0.6



Io Test Data

Dr Kiwi test results
Volts Amps RPM
7 0.55 7875
8 0.55 8972
10 0.6 11100

Test Data

Dr Kiwi test results
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
GWS HD 8x4 1 7 4 28 7170 27.2 266 9.38 91%
GWS HD 8x4 1 7.9 4.9 38 8010 30.3 335 11.82 90%
GWS HD 8x4 1 8.9 5.9 52 8880 33.6 417 14.71 89%
GWS HD 8x4 1 9.9 7.05 69 9720 36.8 502 17.71 87%
GWS HD 8x4 1 10.9 8.2 89 10470 39.7 590 20.81 85%
GWS HD 9x5 1 7.9 8.4 66 7230 34.2 512 18.06 81%
GWS HD 9x5 1 8.9 10 89 7950 37.6 615 21.69 79%
GWS HD 9x5 1 9.8 11.7 114 8550 40.5 720 25.40 78%
GWS HD 9x5 1 10.8 13.4 144 9090 43.0 836 29.49 75%
GWS HD 10x6 1 6.9 9.1 62 6000 34.1 496 17.50 77%
GWS HD 10x6 1 7.8 11 85 6600 37.5 604 21.31 75%
GWS HD 10x6 1 8.8 12.95 113 7140 40.6 719 25.36 72%
GWS HD 10x6 1 9.8 14.7 144 7620 43.3 800 28.22 69%
GWS HD 10x6 1 10.7 16 171 7950 45.2 865 30.51 66%
