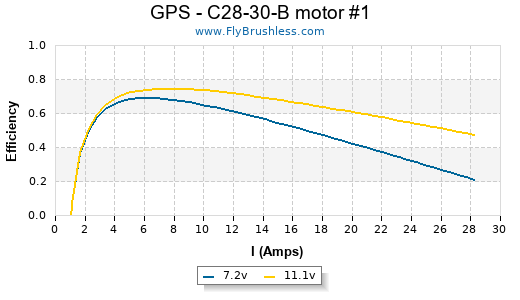

GPS - C28-30-B motor #1



Specifications

  • Type: Outrunner
  • Weight: 58.00g (2.05oz)
  • Maximum Amps: 15

Constants

  • kV: 1175
  • Rm: 0.2
  • Io: 1.05



Io Test Data

Dr Kiwi test results
Volts Amps RPM
10.025 1.05 11490

Test Data

Dr Kiwi test results
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
GWS HD 7x3.5 1 7 2.5 17 7710 25.6 136 4.80 94%
GWS HD 7x3.5 1 8 3 24 8700 28.8 176 6.21 93%
GWS HD 7x3.5 1 8.9 3.5 31 9660 32.0 222 7.83 92%
GWS HD 7x3.5 1 9.9 4.15 41 10650 35.3 276 9.74 92%
GWS HD 7x3.5 1 10.9 4.75 51 11550 38.3 330 11.64 90%
GWS HD 7x3.5 1 14.7 7.6 111 14940 49.5 584 20.60 86%
GWS HD 8x4 1 7 4.6 32 7200 27.3 273 9.63 88%
GWS HD 8x4 1 7.9 5.5 43 8010 30.3 339 11.96 86%
GWS HD 8x4 1 8.9 6.6 58 8850 33.5 422 14.89 85%
GWS HD 8x4 1 9.9 7.7 76 9660 36.6 506 17.85 83%
GWS HD 8x4 1 10.9 8.9 97 10410 39.4 590 20.81 81%
GWS HD 9x5 1 6.9 7.4 51 6510 30.8 418 14.74 80%
GWS HD 9x5 1 7.9 8.9 70 7200 34.1 517 18.24 78%
GWS HD 9x5 1 8.9 10.4 92 7830 37.1 620 21.87 75%
GWS HD 9x5 1 9.9 12 118 8460 40.1 725 25.57 73%
GWS HD 10x6 1 6.9 9.45 65 5970 33.9 496 17.50 74%
GWS HD 10x6 1 7.9 11.25 88 6570 37.3 600 21.16 71%
GWS HD 10x6 1 8.9 13.2 117 7110 40.4 713 25.15 68%
GWS HD 10x6 1 9.8 14.9 146 7560 43.0 805 28.40 66%
GWS HD 10x6 1 10.8 16.7 180 8040 45.7 905 31.92 63%
