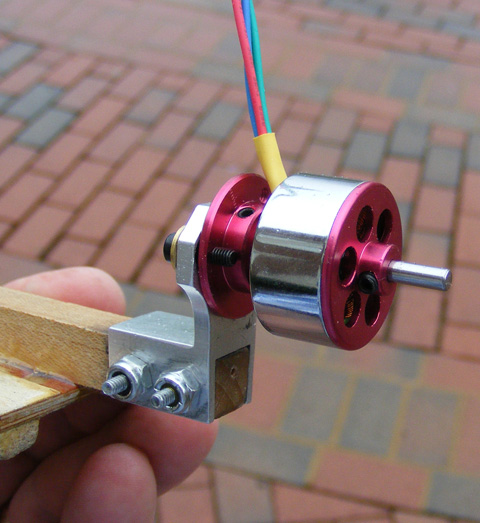

AEO - C20 PRO 1550
Specifications
- Type: Outrunner
- Weight: 27.00g (0.95oz)
- Diameter: 23.00mm (0.91in)
- Length: 24.00mm (0.94in)
- Shaft Diameter: 3.00mm (0.12in)
- Maximum Amps: 9
- Maximum RPM: 20000
Constants
- kV: 1735
- Rm: 0.45
- Io: 0.85
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 0.7 | 11640 |
| 8 | 0.75 | 13350 |
| 10 | 0.85 | 16680 |
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| Zagi Carbon 5.1x4.9 | 1 | 7 | 3.45 | 24 | 9810 | 45.5 | 136 | 4.80 | 81% |
| Zagi Carbon 5.1x4.9 | 1 | 7.9 | 4.1 | 32 | 10890 | 50.5 | 168 | 5.93 | 79% |
| Zagi Carbon 5.1x4.9 | 1 | 8.9 | 4.85 | 43 | 11910 | 55.3 | 205 | 7.23 | 77% |
| Zagi Carbon 5.1x4.9 | 1 | 9.9 | 5.55 | 54 | 12900 | 59.9 | 239 | 8.43 | 75% |
| Zagi Carbon 5.1x4.9 | 1 | 10.9 | 6.3 | 68 | 13830 | 64.2 | 278 | 9.81 | 73% |
| Zagi Carbon 5.1x4.9 | 1 | 14 | 8.75 | 122 | 16530 | 76.7 | 399 | 14.07 | 68% |
| Graupner CAM Speed 6.5x6.5 | 1 | 7 | 6.2 | 43 | 7980 | 49.1 | 178 | 6.28 | 66% |
| Graupner CAM Speed 6.5x6.5 | 1 | 7.4 | 6.7 | 49 | 8340 | 51.3 | 195 | 6.88 | 65% |
| GWS HD 7x3.5 | 1 | 6.9 | 3.95 | 27 | 9390 | 31.1 | 198 | 6.98 | 78% |
| GWS HD 7x3.5 | 1 | 7.9 | 4.65 | 36 | 10440 | 34.6 | 251 | 8.85 | 76% |
| GWS HD 7x3.5 | 1 | 8.9 | 5.45 | 48 | 11430 | 37.9 | 309 | 10.90 | 74% |
| GWS HD 7x3.5 | 1 | 9.9 | 6.3 | 62 | 12390 | 41.1 | 371 | 13.09 | 72% |
| GWS HD 7x3.5 | 1 | 10.9 | 7.05 | 76 | 13200 | 43.8 | 424 | 14.96 | 70% |
| APC SF 7x4 | 1 | 6.9 | 5.75 | 39 | 8250 | 31.2 | 263 | 9.28 | 69% |
| APC SF 7x4 | 1 | 7.9 | 6.9 | 54 | 9060 | 34.3 | 322 | 11.36 | 66% |
| APC SF 7x4 | 1 | 8.9 | 8 | 71 | 9690 | 36.7 | 382 | 13.47 | 63% |
| APC SF 7x4 | 1 | 9.8 | 9.1 | 89 | 10290 | 39.0 | 433 | 15.27 | 61% |
| APC SF 7x4 | 1 | 10.8 | 10.2 | 110 | 10770 | 40.8 | 483 | 17.04 | 57% |
| APC SF 7x6 | 1 | 7 | 7.4 | 51 | 7230 | 41.1 | 254 | 8.96 | 60% |
| APC SF 7x6 | 1 | 7.4 | 7.9 | 58 | 7500 | 42.6 | 268 | 9.45 | 58% |
| GWS HD 8x4 | 1 | 6.9 | 6.65 | 45 | 7740 | 29.3 | 322 | 11.36 | 65% |
| GWS HD 8x4 | 1 | 7.9 | 7.75 | 61 | 8430 | 31.9 | 381 | 13.44 | 62% |
| GWS HD 8x4 | 1 | 8.9 | 9 | 80 | 9060 | 34.3 | 443 | 15.63 | 59% |
| GWS HD 8x4 | 1 | 9.8 | 10.1 | 98 | 9540 | 36.1 | 498 | 17.57 | 56% |
