Suppo - H2212/6
Specifications
- Type: Outrunner
- Weight: 50.00g (1.76oz)
- Diameter: 27.60mm (1.09in)
- Length: 28.80mm (1.13in)
- Shaft Diameter: 3.20mm (0.13in)
- Maximum Amps: 40
Constants
- kV: 3570
- Rm: 0.08
- Io: 2.4
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 2 | 24620 |
| 8 | 2.1 | 28140 |
| 10 | 2.4 | 34820 |

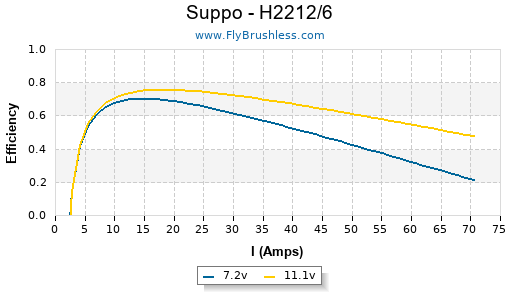

Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| APC E 4.1x4.1 | 1 | 6.9 | 12.8 | 88 | 20700 | 80.4 | 244 | 8.61 | 84% |
| APC E 4.1x4.1 | 1 | 7.8 | 15.65 | 122 | 23100 | 89.7 | 300 | 10.58 | 83% |
| APC E 4.1x4.1 | 1 | 8.8 | 19.2 | 168 | 25500 | 99.0 | 372 | 13.12 | 81% |
| APC E 4.1x4.1 | 1 | 9.7 | 22.2 | 215 | 27450 | 106.6 | 428 | 15.10 | 79% |
| APC E 4.1x4.1 | 1 | 11.4 | 28.4 | 323 | 30600 | 118.8 | 544 | 19.19 | 75% |
| APC E 4.5x4.1 | 1 | 10.4 | 30.6 | 318 | 27540 | 106.9 | 631 | 22.26 | 74% |
| APC E 4.5x4.1 | 1 | 10.7 | 32 | 342 | 27930 | 108.4 | 659 | 23.25 | 73% |
| APC E 4.75x4.75 | 1 | 10.8 | 43.2 | 466 | 24630 | 110.8 | 528 | 18.62 | 64% |
