Suppo - A2212-10



Specifications

  • Type: Outrunner
  • Weight: 50.00g (1.76oz)
  • Diameter: 27.60mm (1.09in)
  • Length: 26.70mm (1.05in)
  • Shaft Diameter: 3.00mm (0.12in)
  • Maximum Amps: 16

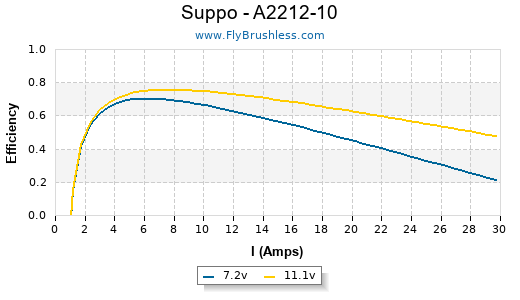

Constants

  • kV: 1435
  • Rm: 0.19
  • Io: 1



Io Test Data

Dr Kiwi test results
Volts Amps RPM
7 0.85 9870
8 0.9 11310
10 1 14030

Test Data

Dr Kiwi test results
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
GWS HD 7x3.5 1 6.9 3.6 24 9240 30.6 189 6.67 93%
GWS HD 7x3.5 1 7.9 4.3 33 10380 34.4 248 8.75 92%
GWS HD 7x3.5 1 8.9 5.1 45 11520 38.2 310 10.93 90%
GWS HD 7x3.5 1 9.9 5.9 58 12540 41.6 377 13.30 88%
GWS HD 7x3.5 1 10.9 6.8 74 13560 44.9 449 15.84 87%
APC E 7x5 1 6.9 7.1 48 8280 39.2 308 10.86 84%
APC E 7x5 1 7.9 8.55 67 9210 43.6 390 13.76 81%
APC E 7x5 1 8.8 10.15 89 10080 47.7 472 16.65 80%
APC E 7x5 1 9.8 11.75 115 10920 51.7 561 19.79 78%
APC E 7x5 1 10.8 13.35 144 11700 55.4 653 23.03 75%
GWS HD 8x4 1 6.9 6.8 46 8400 31.8 373 13.16 85%
GWS HD 8x4 1 7.8 8.2 63 9300 35.2 460 16.23 83%
GWS HD 8x4 1 8.8 9.75 85 10200 38.6 560 19.75 81%
GWS HD 8x4 1 9.8 11.3 110 11010 41.7 663 23.39 78%
GWS HD 8x4 1 10.8 13.05 140 11850 44.9 772 27.23 76%
APC E 8x4 1 6.9 8.4 57 7950 30.1 412 14.53 80%
APC E 8x4 1 7.8 10.2 79 8790 33.3 516 18.20 79%
APC E 8x4 1 8.8 11.95 105 9540 36.1 612 21.59 76%
APC E 8x4 1 9.8 13.85 135 10290 39.0 720 25.40 73%
APC E 8x4 1 10.8 15.9 171 11040 41.8 832 29.35 71%
GWS HD 9x5 1 7 11.35 79 7530 35.6 563 19.86 75%
