Grayson - Super Mega Jet


Grayson - Super Mega Jet

Specifications

  • Type: Outrunner
  • Weight: 76.00g (2.68oz)
  • Maximum Amps: 30

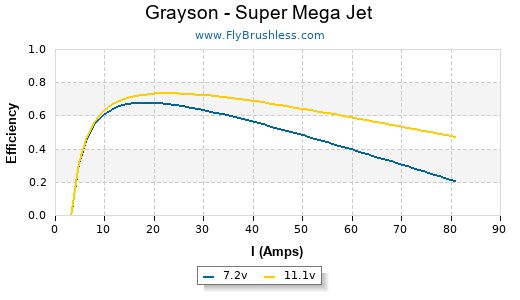

Constants

  • kV: 2230
  • Rm: 0.07
  • Io: 3.25



Io Test Data

Dr Kiwi test results
Volts Amps RPM
10 3.25 21900

Test Data

Dr Kiwi test results
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
APC E 4.1x4.1 1 6.9 6.1 42 14790 57.4 127 4.48 96%
APC E 4.1x4.1 1 7.9 7.15 56 16710 64.9 163 5.75 95%
APC E 4.1x4.1 1 8.9 8.7 77 18570 72.1 200 7.05 94%
APC E 4.1x4.1 1 9.9 10.3 101 20640 80.1 249 8.78 93%
APC E 4.1x4.1 1 10.8 11.7 126 22470 87.2 297 10.48 93%
APC E 4.5x4.1 1 6.9 7.35 50 14550 56.5 167 5.89 95%
APC E 4.5x4.1 1 7.9 8.85 69 16500 64.1 218 7.69 94%
APC E 4.5x4.1 1 8.9 10.3 91 18270 70.9 274 9.67 92%
APC E 4.5x4.1 1 9.9 12.5 123 20340 79.0 344 12.13 92%
APC E 4.5x4.1 1 10.8 14.2 153 22080 85.7 409 14.43 92%
APC E 4.75x5.5 1 6.9 10.45 72 14130 73.6 189 6.67 92%
APC E 4.75x5.5 1 7.9 12.8 101 15870 82.7 241 8.50 90%
APC E 4.75x5.5 1 8.8 15.25 134 17520 91.2 293 10.34 89%
APC E 4.75x5.5 1 9.8 18.7 183 19260 100.3 353 12.45 88%
APC E 4.75x5.5 1 10.7 20.9 223 20850 108.6 418 14.74 87%
APC E 5x5 1 6.9 10.55 72 14160 67.0 208 7.34 92%
APC E 5x5 1 7.8 12.8 99 15990 75.7 264 9.31 92%
APC E 5x5 1 8.8 15.35 135 17520 83.0 329 11.61 89%
APC E 5x5 1 9.8 18.7 183 19290 91.3 400 14.11 88%
APC E 5x5 1 10.7 21.1 225 20790 98.4 467 16.47 87%
Graupner CAM Speed 5.5x5.5 1 6.8 13.4 91 13590 70.8 312 11.01 90%
Graupner CAM Speed 5.5x5.5 1 7.8 16.45 128 15180 79.1 395 13.93 87%
Graupner CAM Speed 5.5x5.5 1 8.8 19.6 172 16710 87.0 482 17.00 85%
Graupner CAM Speed 5.5x5.5 1 11.3 29.7 335 20340 105.9 730 25.75 81%
APC E 6x4 1 6.8 12.35 83 13770 52.2 379 13.37 91%
APC E 6x4 1 7.8 15.05 117 15390 58.3 482 17.00 88%
APC E 6x4 1 8.8 18.2 160 17010 64.4 596 21.02 87%
APC E 6x4 1 9.7 21.4 207 18390 69.7 706 24.90 85%
APC E 6x4 1 11.3 28 316 20910 79.2 910 32.10 83%
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
APC E 6x5.5 1 10.8 32.1 346 18810 98.0 864 30.48 78%
Graupner Speed 6.5x6.5 1 10.5 40.2 422 17100 105.3 825 29.10 73%
