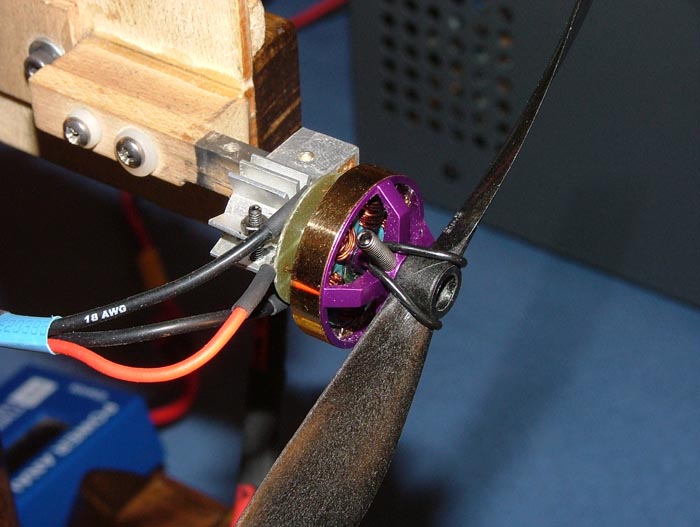

Cyclon - Nano
Specifications
- Type: Outrunner
- Weight: 19.00g (0.67oz)
- Maximum Amps: 8
Constants
- kV: 2220
- Rm: 0.55
- Io: 0.67
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 7.02 | 0.54 | 15060 |
| 8.06 | 0.57 | 17670 |
| 10 | 0.67 | 21300 |
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| GWS DD 4x2.5 | 1 | 7 | 1.95 | 13 | 13200 | 31.2 | 81 | 2.86 | 85% |
| GWS DD 4x2.5 | 1 | 7.4 | 2.1 | 15 | 13860 | 32.8 | 89 | 3.14 | 84% |
| GWS DD 4x2.5 | 1 | 8 | 2.35 | 18 | 14790 | 35.0 | 102 | 3.60 | 83% |
| GWS DD 4x2.5 | 1 | 8.9 | 2.7 | 24 | 16170 | 38.3 | 121 | 4.27 | 82% |
| GWS DD 4x2.5 | 1 | 10 | 3.2 | 32 | 17700 | 41.9 | 145 | 5.11 | 80% |
| GWS DD 4x2.5 | 1 | 11 | 3.6 | 39 | 19110 | 45.2 | 169 | 5.96 | 78% |
| GWS HD 4x4 | 1 | 7 | 3 | 21 | 12420 | 47.0 | 92 | 3.25 | 80% |
| GWS HD 4x4 | 1 | 7.4 | 3.25 | 24 | 12930 | 49.0 | 101 | 3.56 | 79% |
| GWS HD 4x4 | 1 | 7.9 | 3.4 | 26 | 13440 | 50.9 | 108 | 3.81 | 77% |
| GWS HD 4x4 | 1 | 8.9 | 4 | 35 | 14700 | 55.7 | 130 | 4.59 | 74% |
| GWS HD 4x4 | 1 | 9.9 | 4.65 | 46 | 15900 | 60.2 | 154 | 5.43 | 72% |
| GWS HD 4x4 | 1 | 10.9 | 5.3 | 57 | 17010 | 64.4 | 174 | 6.14 | 70% |
| APC E 4.2x4 | 1 | 7 | 3.05 | 21 | 12150 | 46.0 | 84 | 2.96 | 78% |
| APC E 4.2x4 | 1 | 7.4 | 3.25 | 24 | 12600 | 47.7 | 90 | 3.17 | 77% |
| APC E 4.2x4 | 1 | 7.9 | 3.55 | 28 | 13350 | 50.6 | 101 | 3.56 | 76% |
| APC E 4.2x4 | 1 | 8.9 | 4.1 | 36 | 14550 | 55.1 | 120 | 4.23 | 74% |
| APC E 4.2x4 | 1 | 9.9 | 4.8 | 47 | 15720 | 59.5 | 144 | 5.08 | 72% |
| APC E 4.2x4 | 1 | 10.9 | 5.5 | 59 | 16860 | 63.9 | 166 | 5.86 | 70% |
| GWS HD 4.5x4 | 1 | 7 | 3.15 | 22 | 11970 | 45.3 | 127 | 4.48 | 77% |
| GWS HD 4.5x4 | 1 | 7.4 | 3.35 | 24 | 12450 | 47.2 | 138 | 4.87 | 76% |
| GWS HD 4.5x4 | 1 | 7.9 | 3.6 | 28 | 13230 | 50.1 | 151 | 5.33 | 75% |
| GWS HD 4.5x4 | 1 | 8.9 | 4.25 | 37 | 14400 | 54.5 | 185 | 6.53 | 73% |
| GWS HD 4.5x4 | 1 | 9.9 | 4.9 | 48 | 15570 | 59.0 | 217 | 7.65 | 71% |
| GWS HD 4.5x4 | 1 | 10.9 | 5.65 | 61 | 16590 | 62.8 | 243 | 8.57 | 69% |
| APC E 4.5x4.1 | 1 | 7 | 3.5 | 24 | 11490 | 44.6 | 105 | 3.70 | 74% |
| APC E 4.5x4.1 | 1 | 7.4 | 3.75 | 27 | 12030 | 46.7 | 115 | 4.06 | 73% |
| APC E 4.5x4.1 | 1 | 7.9 | 4.1 | 32 | 12690 | 49.3 | 130 | 4.59 | 72% |
| APC E 4.5x4.1 | 1 | 8.9 | 4.8 | 42 | 13800 | 53.6 | 158 | 5.57 | 70% |
| APC E 4.5x4.1 | 1 | 9.9 | 5.6 | 55 | 14940 | 58.0 | 188 | 6.63 | 68% |
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
| APC E 4.5x4.1 | 1 | 10.9 | 6.35 | 69 | 15900 | 61.7 | 213 | 7.51 | 66% |
| GWS HD 5x3 | 1 | 7 | 2.9 | 20 | 12330 | 35.0 | 139 | 4.90 | 79% |
| GWS HD 5x3 | 1 | 7.4 | 3.15 | 23 | 12960 | 36.8 | 152 | 5.36 | 79% |
| GWS HD 5x3 | 1 | 7.9 | 3.35 | 26 | 13530 | 38.4 | 171 | 6.03 | 77% |
| GWS HD 5x3 | 1 | 8.9 | 3.9 | 34 | 14850 | 42.2 | 205 | 7.23 | 75% |
| GWS HD 5x3 | 1 | 9.9 | 4.5 | 44 | 15990 | 45.4 | 241 | 8.50 | 73% |
| GWS HD 5x3 | 1 | 10.9 | 5.1 | 55 | 17190 | 48.8 | 275 | 9.70 | 71% |
| Graupner 5x4 | 1 | 7 | 6.15 | 43 | 8910 | 33.8 | 127 | 4.48 | 57% |
| Graupner 5x4 | 1 | 7.4 | 6.65 | 49 | 9210 | 34.9 | 136 | 4.80 | 56% |
| GWS HD 5x4.3 | 1 | 7 | 4.55 | 31 | 10800 | 44.0 | 158 | 5.57 | 69% |
| GWS HD 5x4.3 | 1 | 7.4 | 4.8 | 35 | 11250 | 45.8 | 170 | 6.00 | 68% |
| APC E (Broad) 5.1x4.5 | 1 | 7 | 5.3 | 37 | 9720 | 41.4 | 164 | 5.78 | 63% |
| APC E (Broad) 5.1x4.5 | 1 | 7.4 | 5.6 | 41 | 10050 | 42.8 | 175 | 6.17 | 61% |
| Zagi Carbon 5.1x4.9 | 1 | 7 | 4.85 | 33 | 10410 | 48.3 | 160 | 5.64 | 67% |
| Zagi Carbon 5.1x4.9 | 1 | 7.4 | 5.2 | 38 | 10830 | 50.2 | 173 | 6.10 | 66% |
| APC E 5.5x4.5 | 1 | 7 | 5.1 | 35 | 9780 | 41.7 | 141 | 4.97 | 63% |
| APC E 5.5x4.5 | 1 | 7.4 | 5.45 | 40 | 10140 | 43.2 | 151 | 5.33 | 62% |
| APC 5.7x3 | 1 | 7 | 4.4 | 30 | 10860 | 30.9 | 160 | 5.64 | 70% |
| APC 5.7x3 | 1 | 7.4 | 4.75 | 35 | 11310 | 32.1 | 176 | 6.21 | 69% |
| GWS HD 6x3 | 1 | 6.7 | 4 | 26 | 10440 | 29.7 | 188 | 6.63 | 70% |
| GWS HD 6x3 | 1 | 7 | 4.15 | 29 | 10800 | 30.7 | 198 | 6.98 | 69% |
| GWS HD 6x3 | 1 | 7.4 | 4.45 | 32 | 11190 | 31.8 | 216 | 7.62 | 68% |
| GWS HD 6x3 | 1 | 7.9 | 4.9 | 38 | 11760 | 33.4 | 240 | 8.47 | 67% |
| GWS HD 6x3 | 1 | 8.9 | 5.75 | 51 | 12750 | 36.2 | 285 | 10.05 | 65% |
| GWS HD 6x3 | 1 | 9.9 | 6.7 | 66 | 13560 | 38.5 | 323 | 11.39 | 62% |
| APC E 6x4 | 1 | 7 | 5.4 | 37 | 9780 | 37.0 | 190 | 6.70 | 63% |
| APC E 6x4 | 1 | 7.4 | 5.8 | 42 | 10230 | 38.8 | 211 | 7.44 | 62% |
| GWS RS 6x5 | 1 | 7 | 7.2 | 50 | 8280 | 39.2 | 204 | 7.20 | 53% |
| GWS RS 6x5 | 1 | 7.4 | 7.5 | 55 | 8490 | 40.2 | 212 | 7.48 | 52% |
| GWS HD 7x3.5 | 1 | 7 | 5.3 | 37 | 9900 | 32.8 | 239 | 8.43 | 64% |
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
| GWS HD 7x3.5 | 1 | 7.4 | 5.7 | 42 | 10320 | 34.2 | 261 | 9.21 | 63% |
| APC SF 7x4 | 1 | 7.4 | 7.2 | 53 | 7920 | 30.0 | 264 | 9.31 | 48% |
