ARC - 20-34-130

Specifications

  • Type: Inrunner
  • Weight: 42.00g (1.48oz)
  • Diameter: 20.00mm (0.79in)
  • Length: 34.00mm (1.34in)
  • Shaft Diameter: 2.00mm (0.08in)
  • Maximum Amps: 15

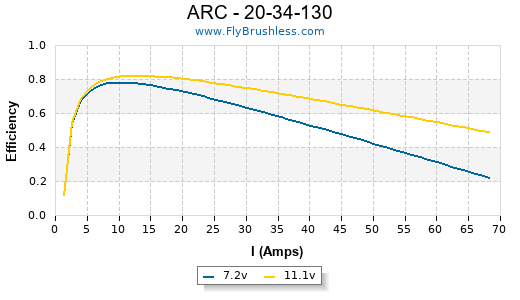

Constants

  • kV: 4640
  • Rm: 0.082
  • Io: 1.2



Io Test Data

Dr Kiwi test results
Volts Amps RPM
6 1 26580
8 1.1 36600
10 1.2 45900

Test Data

Dr Kiwi test results
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
Alfa 60/15 EDF 0x0 1 6.9 6.15 42 29880 0.0 112 3.95 93%
Alfa 60/15 EDF 0x0 1 7.9 8.15 64 32940 0.0 146 5.15 90%
Alfa 60/15 EDF 0x0 1 8.9 9.5 84 37600 0.0 182 6.42 91%
Alfa 60/15 EDF 0x0 1 9.9 11.3 111 41280 0.0 224 7.90 90%
Wemotec MicroFan Impeller 1.91x3 1 7 6.1 42 30510 86.7 129 4.55 94%
Wemotec MicroFan Impeller 1.91x3 1 7.9 7.5 59 34335 97.5 166 5.86 94%
Wemotec MicroFan Impeller 1.91x3 1 8.9 9.3 82 38295 108.8 211 7.44 93%
Wemotec MicroFan Impeller 1.91x3 1 9.9 11.15 110 41850 118.9 256 9.03 91%
GWS HD 8x4 4.43 7 4.45 31 7080 26.8 252 8.89 97%
GWS HD 8x4 4.43 8 5.45 43 8010 30.3 324 11.43 96%
GWS HD 8x4 4.43 8.9 6.55 58 8910 33.8 403 14.22 96%
GWS HD 8x4 4.43 9.9 8 79 9870 37.4 500 17.64 95%
GWS HD 8x4 4.43 10.9 9.35 101 10710 40.6 598 21.09 94%
GWS HD 9x5 5.33 6.9 5.1 35 5790 27.4 311 10.97 96%
GWS HD 9x5 4.43 6.9 7.75 53 6720 31.8 426 15.03 93%
GWS HD 9x5 6.6 7 3.3 23 4890 23.1 212 7.48 99%
GWS HD 9x5 5.33 7.9 6.35 50 6570 31.1 400 14.11 96%
GWS HD 9x5 4.43 7.9 9.6 75 7590 35.9 540 19.05 92%
GWS HD 9x5 6.6 8 4 32 5490 26.0 278 9.81 98%
GWS HD 9x5 4.43 8.9 11.6 103 8340 39.5 668 23.56 89%
GWS HD 9x5 5.33 8.9 7.7 68 7290 34.5 503 17.74 94%
GWS HD 9x5 6.6 8.9 4.9 43 6090 28.8 347 12.24 97%
GWS HD 9x5 5.33 9.9 9.4 93 8100 38.4 627 22.12 94%
GWS HD 9x5 6.6 9.9 6 59 6870 32.5 433 15.27 99%
GWS HD 9x5 4.43 9.9 14 138 9180 43.5 812 28.64 89%
APC SF 10x4.7 6.6 6.9 5.85 40 4620 20.6 367 12.95 95%
APC SF 10x4.7 6.6 7.9 7.25 57 5250 23.4 481 16.97 95%
APC SF 10x4.7 6.6 8.9 9 80 5820 25.9 615 21.69 93%
APC SF 10x4.7 5.33 8.9 9 80 5820 25.9 615 21.69 75%
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
APC SF 10x4.7 6.6 9.9 11 108 6360 28.3 742 26.17 91%
APC SF 10x4.7 6.6 10.9 13.1 142 6930 30.8 888 31.32 90%
GWS HD 10x6 6.6 6.9 4.45 30 4710 26.8 296 10.44 97%
GWS HD 10x6 5.33 6.9 7.1 48 5610 31.9 418 14.74 93%
GWS HD 10x6 6.6 7.9 5.5 43 5400 30.7 386 13.62 97%
GWS HD 10x6 5.33 7.9 8.9 70 6360 36.1 534 18.84 92%
GWS HD 10x6 5.33 8.9 10.85 96 7020 39.9 664 23.42 91%
GWS HD 10x6 6.6 8.9 6.9 61 6000 34.1 477 16.83 96%
GWS HD 10x6 5.33 9.9 12.8 126 7710 43.8 789 27.83 89%
GWS HD 10x6 6.6 9.9 8.1 80 6600 37.5 572 20.18 95%
GWS HD 10x6 6.6 10.9 9.6 104 7230 41.1 700 24.69 94%
GWS HD 10x6 5.33 10.9 15.2 165 8400 47.7 953 33.62 89%
APC SF 10x7 6.6 6.9 8.5 58 4440 29.4 454 16.01 92%
APC SF 10x7 6.6 7.9 10.8 85 5010 33.2 580 20.46 90%
APC SF 10x7 6.6 8.9 13.45 119 5520 36.6 707 24.94 88%
APC SF 10x7 6.6 9.8 16.25 159 5940 39.4 850 29.98 86%
APC SF 10x7 6.6 10.8 19.6 211 6390 42.4 993 35.03 84%
GWS HD 10x8 6.6 6.9 7.2 49 4530 34.3 356 12.56 93%
GWS HD 10x8 6.6 7.9 9.1 71 5130 38.9 451 15.91 92%
GWS HD 10x8 5.33 7.9 9.1 71 5130 38.9 451 15.91 75%
GWS HD 10x8 6.6 8.9 11.1 98 5700 43.2 560 19.75 91%
GWS HD 10x8 6.6 9.9 13.2 130 6210 47.0 666 23.49 89%
GWS HD 10x8 6.6 10.9 15.7 171 6720 50.9 797 28.11 88%
GWS HD 11x7 6.6 6.9 6.85 47 4560 30.2 449 15.84 94%
GWS HD 11x7 6.6 7.9 8.6 67 5160 34.2 576 20.32 93%
GWS HD 11x7 6.6 8.9 10.4 92 5700 37.8 705 24.87 91%
GWS HD 11x7 6.6 9.9 12.6 124 6270 41.6 849 29.95 90%
GWS HD 11x7 6.6 10.8 14.95 161 6780 44.9 1003 35.38 89%
