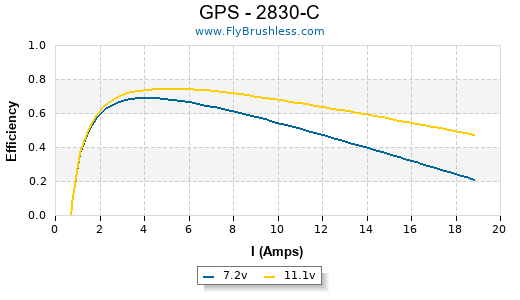

GPS - 2830-C
Specifications
- Type: Outrunner
- Weight: 58.00g (2.05oz)
- Diameter: 27.80mm (1.09in)
- Length: 31.00mm (1.22in)
- Shaft Diameter: 3.17mm (0.12in)
- Maximum Amps: 12
Constants
- kV: 880
- Rm: 0.3
- Io: 0.7
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 10 | 0.7 | 8640 |
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| APC Sport 7x7 | 1 | 14.6 | 8.15 | 118 | 10530 | 69.8 | 484 | 17.07 | 82% |
| APC E 8x8 | 1 | 10.9 | 10.1 | 110 | 6960 | 52.7 | 413 | 14.57 | 73% |
| APC E 8x8 | 1 | 14.6 | 15 | 219 | 8460 | 64.1 | 626 | 22.08 | 66% |
| GWS HD 9x5 | 1 | 7 | 3.8 | 26 | 5280 | 25.0 | 268 | 9.45 | 86% |
| GWS HD 9x5 | 1 | 7.9 | 4.65 | 36 | 5880 | 27.8 | 336 | 11.85 | 85% |
| GWS HD 9x5 | 1 | 8.9 | 5.5 | 48 | 6510 | 30.8 | 414 | 14.60 | 83% |
| GWS HD 9x5 | 1 | 9.9 | 6.5 | 64 | 7080 | 33.5 | 495 | 17.46 | 81% |
| GWS HD 9x5 | 1 | 10.9 | 7.5 | 81 | 7650 | 36.2 | 579 | 20.42 | 80% |
| GWS HD 10x6 | 1 | 6.9 | 5 | 34 | 4980 | 28.3 | 333 | 11.75 | 82% |
| GWS HD 10x6 | 1 | 7.9 | 6 | 47 | 5520 | 31.4 | 413 | 14.57 | 79% |
| GWS HD 10x6 | 1 | 8.9 | 7.15 | 63 | 6090 | 34.6 | 501 | 17.67 | 78% |
| GWS HD 10x6 | 1 | 9.9 | 8.35 | 82 | 6600 | 37.5 | 591 | 20.85 | 76% |
| GWS HD 10x6 | 1 | 10.9 | 9.5 | 103 | 7080 | 40.2 | 682 | 24.06 | 74% |
| GWS HD 11x7 | 1 | 6.9 | 7.1 | 48 | 4470 | 29.6 | 446 | 15.73 | 74% |
| GWS HD 11x7 | 1 | 7.9 | 8.5 | 67 | 4920 | 32.6 | 540 | 19.05 | 71% |
| GWS HD 11x7 | 1 | 8.8 | 9.9 | 87 | 5340 | 35.4 | 635 | 22.40 | 69% |
| GWS HD 11x7 | 1 | 9.8 | 11.3 | 110 | 5730 | 38.0 | 733 | 25.86 | 66% |
| GWS HD 11x7 | 1 | 10.8 | 12.7 | 137 | 6030 | 40.0 | 822 | 29.00 | 63% |
