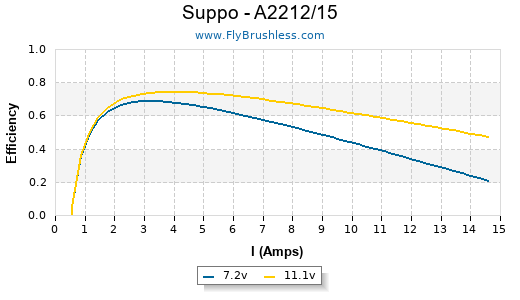

Suppo - A2212/15



Specifications

  • Type: Outrunner
  • Weight: 51.00g (1.80oz)
  • Diameter: 27.60mm (1.09in)
  • Length: 26.70mm (1.05in)
  • Shaft Diameter: 3.00mm (0.12in)
  • Maximum Amps: 12

Constants

  • kV: 920
  • Rm: 0.388
  • Io: 0.55



Io Test Data

Dr Kiwi test results
Volts Amps RPM
7 0.45 6260
8 0.5 7170
10 0.55 8910

Test Data

Dr Kiwi test results
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
GWS HD 9x5 1 7 3.6 25 5220 24.7 260 9.17 81%
GWS HD 9x5 1 7.9 4.4 34 5820 27.6 322 11.36 80%
GWS HD 9x5 1 8.9 5.2 46 6390 30.3 398 14.04 78%
GWS HD 9x5 1 9.9 6.05 59 6900 32.7 473 16.68 76%
GWS HD 9x5 1 10.9 6.85 74 7440 35.2 541 19.08 74%
GWS HD 9x5 1 14 9.8 137 8910 42.2 796 28.08 69%
GWS HD 9x7.5 1 6.9 5.3 36 4680 33.2 255 8.99 74%
GWS HD 9x7.5 1 7.9 6.3 49 5130 36.4 311 10.97 71%
GWS HD 9x7.5 1 8.9 7.6 67 5640 40.1 374 13.19 69%
GWS HD 9x7.5 1 9.9 8.6 85 6030 42.8 429 15.13 66%
APC E 10x5 1 6.9 4.7 32 4890 23.1 309 10.90 77%
APC E 10x5 1 7.9 5.6 44 5400 25.6 378 13.33 74%
APC E 10x5 1 8.9 6.6 58 5880 27.8 459 16.19 72%
APC E 10x5 1 9.9 7.7 76 6360 30.1 543 19.15 70%
APC E 10x5 1 10.9 8.7 94 6780 32.1 624 22.01 68%
GWS HD 10x6 1 6.9 4.75 32 4830 27.4 321 11.32 76%
GWS HD 10x6 1 7.9 5.7 45 5370 30.5 394 13.90 74%
GWS HD 10x6 1 8.9 6.7 59 5850 33.2 471 16.61 71%
GWS HD 10x6 1 9.9 7.75 76 6360 36.1 558 19.68 70%
GWS HD 10x6 1 10.9 8.8 95 6750 38.4 635 22.40 67%
GWS HD 10x8 1 6.9 6.75 46 4290 32.5 320 11.29 68%
GWS HD 10x8 1 7.9 8 63 4680 35.5 383 13.51 64%
GWS HD 10x8 1 8.9 9.3 82 5040 38.2 444 15.66 62%
GWS HD 10x8 1 9.9 10.6 104 5400 40.9 505 17.81 59%
GWS HD 10x8 1 10.9 11.9 129 5670 43.0 570 20.11 57%
APC E 11x5.5 1 6.9 5.6 38 4560 23.8 373 13.16 72%
APC E 11x5.5 1 7.9 6.8 53 5010 26.1 465 16.40 69%
APC E 11x5.5 1 8.9 7.9 70 5430 28.3 546 19.26 66%
APC E 11x5.5 1 9.9 9.2 91 5850 30.5 640 22.58 64%
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
APC E 11x5.5 1 10.9 10.3 112 6210 32.3 720 25.40 62%
