Scorpion - 2212-26



Specifications

  • Type: Outrunner
  • Weight: 51.00g (1.80oz)
  • Diameter: 27.88mm (1.10in)
  • Length: 24.60mm (0.97in)
  • Shaft Diameter: 3.00mm (0.12in)
  • Maximum Amps: 15

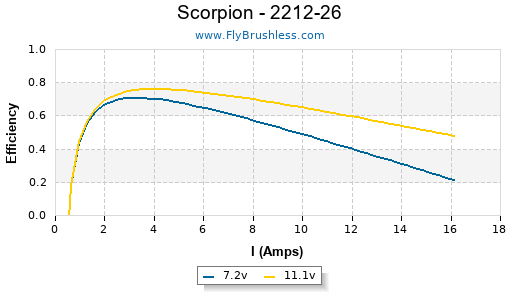

Constants

  • kV: 973
  • Rm: 0.35
  • Io: 0.525



Io Test Data

Dr Kiwi test results
Volts Amps RPM
7.025 0.465 6600
8.005 0.475 7530
10.025 0.525 9480

Test Data

Dr Kiwi test results
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
APC E 7x5 1 7 3 21 6210 29.4 166 5.86 91%
APC E 7x5 1 10.5 5.55 58 8880 42.0 355 12.52 87%
APC E 7x5 1 14 8.8 123 11310 53.5 593 20.92 83%
APC SF 7x6 1 7 3.5 24 6060 34.4 174 6.14 89%
APC SF 7x6 1 10.5 6.7 70 8520 48.4 356 12.56 83%
APC SF 7x6 1 14 10.6 148 10530 59.8 549 19.37 77%
APC Sport 7x6 1 6.9 3.15 21 6120 34.8 133 4.69 91%
APC Sport 7x6 1 7 3.5 24 6060 34.4 174 6.14 89%
APC Sport 7x6 1 7.9 3.85 30 6900 39.2 170 6.00 90%
APC Sport 7x6 1 8.9 4.6 40 7680 43.6 213 7.51 89%
APC Sport 7x6 1 9.9 5.4 53 8430 47.9 262 9.24 88%
APC Sport 7x6 1 10.9 6.2 67 9150 52.0 311 10.97 86%
APC Sport 7x7 1 7.9 4.1 32 6840 45.3 202 7.13 89%
APC Sport 7x7 1 8.9 4.9 43 7560 50.1 250 8.82 87%
APC Sport 7x7 1 9.9 5.7 56 8310 55.1 300 10.58 86%
APC Sport 7x7 1 10.9 6.6 71 9000 59.7 357 12.59 85%
GWS HD 8x4 1 6.9 2.55 17 5910 22.4 187 6.60 88%
GWS HD 8x4 1 7.9 3.15 24 6720 25.4 241 8.50 87%
GWS HD 8x4 1 8.9 3.8 33 7440 28.2 302 10.65 86%
GWS HD 8x4 1 9.9 4.5 44 8100 30.7 361 12.73 84%
GWS HD 8x4 1 10.9 5.3 57 8820 33.4 429 15.13 83%
GWS HD 8x6 1 6.9 4.6 31 5700 32.4 239 8.43 85%
GWS HD 8x6 1 7.9 5.7 45 6390 36.3 308 10.86 83%
GWS HD 8x6 1 8.9 6.8 60 7020 39.9 372 13.12 81%
GWS HD 8x6 1 9.9 7.95 78 7590 43.1 435 15.34 79%
GWS HD 8x6 1 10.9 9.2 100 8160 46.4 503 17.74 77%
GWS HD 8x6 1 14.6 13.5 197 9840 55.9 738 26.03 69%
GWS HD 9x5 1 6.9 4.9 33 5670 26.9 325 11.46 84%
GWS HD 9x5 1 6.9 4.2 28 5400 25.6 288 10.16 80%
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
GWS HD 9x5 1 6.9 5 34 5700 27.0 323 11.39 85%
GWS HD 9x5 1 6.9 4.65 32 5580 26.4 314 11.08 83%
GWS HD 9x5 1 6.9 4.7 32 5610 26.6 312 11.01 84%
GWS HD 9x5 1 7.9 6.05 47 6330 30.0 405 14.29 82%
GWS HD 9x5 1 7.9 5.7 45 6210 29.4 395 13.93 81%
GWS HD 9x5 1 7.9 5.75 45 6210 29.4 390 13.76 81%
GWS HD 9x5 1 7.9 6 47 6300 29.8 406 14.32 82%
GWS HD 9x5 1 7.9 5.2 41 6030 28.6 365 12.87 78%
GWS HD 9x5 1 8.9 6.8 60 6810 32.2 475 16.76 79%
GWS HD 9x5 1 8.9 7.2 64 6900 32.7 489 17.25 80%
GWS HD 9x5 1 8.9 6.2 55 6630 31.4 447 15.77 77%
GWS HD 9x5 1 8.9 7.1 63 6900 32.7 489 17.25 80%
GWS HD 9x5 1 8.9 6.75 60 6810 32.2 475 16.76 79%
GWS HD 9x5 1 9.9 8.35 82 7470 35.4 575 20.28 78%
GWS HD 9x5 1 9.9 7.95 78 7410 35.1 562 19.82 77%
GWS HD 9x5 1 9.9 8 79 7410 35.1 558 19.68 77%
GWS HD 9x5 1 9.9 8.2 81 7440 35.2 578 20.39 77%
GWS HD 9x5 1 9.9 7.3 72 7230 34.2 532 18.77 75%
GWS HD 9x5 1 10.9 9.2 100 7950 37.6 650 22.93 75%
GWS HD 9x5 1 10.9 9.45 103 7980 37.8 662 23.35 75%
GWS HD 9x5 1 10.9 8.3 90 7710 36.5 608 21.45 73%
GWS HD 9x5 1 10.9 9.6 104 8010 37.9 667 23.53 76%
GWS HD 9x5 1 10.9 9.1 99 7920 37.5 640 22.58 75%
APC SF 10x4.7 1 6.9 7.45 51 4860 21.6 435 15.34 72%
APC SF 10x4.7 1 7.9 8.9 70 5250 23.4 524 18.48 68%
APC SF 10x4.7 1 8.9 10.4 92 5670 25.2 613 21.62 65%
APC SF 10x4.7 1 9.9 11.4 112 5880 26.2 668 23.56 61%
APC SF 10x4.7 1 10.9 12.2 132 6060 27.0 710 25.04 57%
GWS HD 10x6 1 6.9 5.55 38 5010 28.5 351 12.38 75%
GWS HD 10x6 1 7.9 6.75 53 5550 31.5 434 15.31 72%
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
GWS HD 10x6 1 8.9 7.9 70 6030 34.3 520 18.34 70%
GWS HD 10x6 1 9.9 9.2 91 6510 37.0 604 21.31 68%
GWS HD 10x6 1 10.9 10.3 112 6900 39.2 680 23.99 65%
GWS HD 11x7 1 6.9 7.35 50 4410 29.2 435 15.34 66%
GWS HD 11x7 1 7 8.4 58 4620 30.6 472 16.65 68%
GWS HD 11x7 1 7.9 8.75 69 4830 32.0 523 18.45 63%
GWS HD 11x7 1 8.9 10.2 90 5160 34.2 609 21.48 60%
GWS HD 11x7 1 9.9 11.5 113 5490 36.4 680 23.99 57%
GWS HD 11x7 1 10.5 12.75 133 5700 37.8 727 25.64 56%
GWS HD 11x7 1 10.9 12.6 137 5760 38.2 750 26.46 54%
