KEDA - KA450H - 3200
Specifications
- Type: Outrunner
- Weight: 68.00g (2.40oz)
- Diameter: 28.20mm (1.11in)
- Length: 33.70mm (1.33in)
- Shaft Diameter: 3.17mm (0.12in)
- Maximum Amps: 24
Constants
- kV: 3175
- Rm: 0.063
- Io: 2.65
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 10 | 2.65 | 31230 |

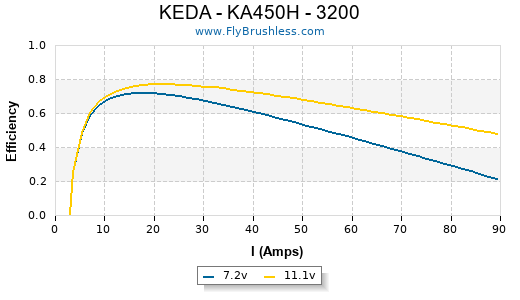

Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| APC E 4.1x4.1 | 1 | 6.9 | 11.1 | 76 | 19680 | 76.4 | 220 | 7.76 | 90% |
| APC E 4.1x4.1 | 1 | 7.9 | 13.8 | 109 | 22110 | 85.8 | 278 | 9.81 | 88% |
| APC E 4.1x4.1 | 1 | 8.9 | 17.2 | 153 | 24570 | 95.4 | 344 | 12.13 | 87% |
| APC E 4.1x4.1 | 1 | 9.8 | 20.5 | 200 | 26880 | 104.4 | 414 | 14.60 | 86% |
| APC E 4.1x4.1 | 1 | 10.7 | 24.6 | 263 | 28920 | 112.3 | 472 | 16.65 | 85% |
| APC E 4.2x4 | 1 | 6.8 | 11.6 | 78 | 19500 | 73.9 | 205 | 7.23 | 90% |
| APC E 4.2x4 | 1 | 7.8 | 14.4 | 112 | 22020 | 83.4 | 264 | 9.31 | 89% |
| APC E 4.2x4 | 1 | 8.8 | 17.6 | 154 | 24420 | 92.5 | 326 | 11.50 | 87% |
| APC E 4.2x4 | 1 | 9.7 | 21 | 203 | 26700 | 101.1 | 392 | 13.83 | 87% |
| APC E 4.2x4 | 1 | 10.7 | 24.5 | 262 | 28890 | 109.4 | 460 | 16.23 | 85% |
