Komodo - KH2208-9
Specifications
- Type: Outrunner
- Weight: 41.00g (1.45oz)
- Diameter: 27.82mm (1.10in)
- Length: 21.43mm (0.84in)
- Shaft Diameter: 3.17mm (0.12in)
- Maximum Amps: 12

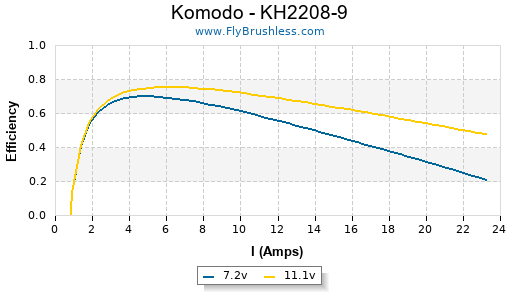

Constants
- kV: 1000
- Rm: 0.243
- Io: 0.8
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 0.65 | 6810 |
| 8 | 0.7 | 7810 |
| 10 | 0.8 | 9800 |
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| Zagi Carbon 5.1x4.9 | 1 | 11 | 2.65 | 29 | 10290 | 47.8 | 153 | 5.40 | 94% |
| Zagi Carbon 5.1x4.9 | 1 | 14.7 | 4.15 | 61 | 13500 | 62.6 | 265 | 9.35 | 92% |
| GWS HD 7x3.5 | 1 | 7 | 1.7 | 11 | 6570 | 21.8 | 94 | 3.32 | 94% |
| GWS HD 7x3.5 | 1 | 8 | 2 | 16 | 7530 | 25.0 | 123 | 4.34 | 94% |
| GWS HD 7x3.5 | 1 | 9 | 2.35 | 21 | 8400 | 27.8 | 159 | 5.61 | 93% |
| GWS HD 7x3.5 | 1 | 10 | 2.75 | 27 | 9300 | 30.8 | 197 | 6.95 | 93% |
| GWS HD 7x3.5 | 1 | 11 | 3.2 | 35 | 10170 | 33.7 | 244 | 8.61 | 92% |
| APC SF 7x6 | 1 | 7 | 3.7 | 25 | 6210 | 35.3 | 187 | 6.60 | 89% |
| APC SF 7x6 | 1 | 7.9 | 4.5 | 35 | 6960 | 39.5 | 235 | 8.29 | 88% |
| APC SF 7x6 | 1 | 8.9 | 5.5 | 48 | 7680 | 43.6 | 291 | 10.26 | 86% |
| APC SF 7x6 | 1 | 9.9 | 6.55 | 64 | 8370 | 47.6 | 351 | 12.38 | 85% |
| APC SF 7x6 | 1 | 10.9 | 7.65 | 83 | 9030 | 51.3 | 410 | 14.46 | 83% |
| APC SF 7x6 | 1 | 14.6 | 12.4 | 181 | 11190 | 63.6 | 647 | 22.82 | 77% |
| GWS HD 8x4 | 1 | 6.9 | 3.1 | 21 | 6300 | 23.9 | 213 | 7.51 | 91% |
| GWS HD 8x4 | 1 | 7.9 | 3.8 | 30 | 7110 | 26.9 | 272 | 9.59 | 90% |
| GWS HD 8x4 | 1 | 8.9 | 4.45 | 39 | 7860 | 29.8 | 334 | 11.78 | 88% |
| GWS HD 8x4 | 1 | 9.9 | 5.3 | 52 | 8670 | 32.8 | 406 | 14.32 | 88% |
| GWS HD 8x4 | 1 | 10.9 | 6.2 | 67 | 9390 | 35.6 | 485 | 17.11 | 86% |
| APC SF 9x3.8 | 1 | 6.9 | 5.15 | 35 | 5850 | 21.1 | 336 | 11.85 | 85% |
| APC SF 9x3.8 | 1 | 7.9 | 6.35 | 50 | 6540 | 23.5 | 422 | 14.89 | 83% |
| APC SF 9x3.8 | 1 | 8.9 | 7.75 | 68 | 7110 | 25.6 | 526 | 18.55 | 80% |
| APC SF 9x3.8 | 1 | 9.9 | 9.25 | 91 | 7710 | 27.7 | 623 | 21.98 | 78% |
| APC SF 9x3.8 | 1 | 10.9 | 10.75 | 117 | 8220 | 29.6 | 730 | 25.75 | 75% |
| APC E 9x4.5 | 1 | 6.9 | 4.9 | 33 | 5880 | 25.1 | 324 | 11.43 | 85% |
| APC E 9x4.5 | 1 | 7.9 | 6.05 | 47 | 6570 | 28.0 | 412 | 14.53 | 83% |
| APC E 9x4.5 | 1 | 8.9 | 7.3 | 64 | 7260 | 30.9 | 507 | 17.88 | 82% |
| APC E 9x4.5 | 1 | 9.9 | 8.6 | 85 | 7830 | 33.4 | 604 | 21.31 | 79% |
| APC E 9x4.5 | 1 | 10.9 | 9.9 | 107 | 8460 | 36.0 | 700 | 24.69 | 78% |
| APC SF 9x4.7 | 1 | 6.9 | 5.7 | 39 | 5730 | 25.5 | 362 | 12.77 | 83% |
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
| APC SF 9x4.7 | 1 | 7.9 | 6.9 | 54 | 6390 | 28.4 | 450 | 15.87 | 81% |
| APC SF 9x4.7 | 1 | 8.9 | 8.15 | 72 | 7050 | 31.4 | 545 | 19.22 | 79% |
| APC SF 9x4.7 | 1 | 9.9 | 9.45 | 93 | 7620 | 33.9 | 638 | 22.50 | 77% |
| APC SF 9x4.7 | 1 | 10.9 | 10.7 | 116 | 8220 | 36.6 | 730 | 25.75 | 75% |
| GWS HD 9x5 | 1 | 6.9 | 5.2 | 35 | 5850 | 27.7 | 343 | 12.10 | 85% |
| GWS HD 9x5 | 1 | 7.9 | 6.4 | 50 | 6510 | 30.8 | 426 | 15.03 | 82% |
| GWS HD 9x5 | 1 | 8.9 | 7.6 | 67 | 7170 | 34.0 | 518 | 18.27 | 81% |
| GWS HD 9x5 | 1 | 9.9 | 9 | 89 | 7740 | 36.6 | 622 | 21.94 | 78% |
| GWS HD 9x5 | 1 | 10.9 | 10.25 | 111 | 8340 | 39.5 | 719 | 25.36 | 77% |
| APC E 9x6 | 1 | 6.9 | 6.3 | 43 | 5580 | 31.7 | 365 | 12.87 | 81% |
| APC E 9x6 | 1 | 7.9 | 7.7 | 60 | 6240 | 35.5 | 453 | 15.98 | 79% |
| APC E 9x6 | 1 | 8.9 | 9.05 | 80 | 6780 | 38.5 | 547 | 19.29 | 76% |
| APC E 9x6 | 1 | 9.9 | 10.55 | 104 | 7380 | 41.9 | 645 | 22.75 | 75% |
| APC SF 10x3.8 | 1 | 6.9 | 7.1 | 48 | 5400 | 19.4 | 440 | 15.52 | 78% |
| APC SF 10x3.8 | 1 | 7.9 | 8.8 | 69 | 5940 | 21.4 | 548 | 19.33 | 75% |
| APC SF 10x3.8 | 1 | 8.9 | 10.65 | 94 | 6390 | 23.0 | 662 | 23.35 | 72% |
| APC SF 10x3.8 | 1 | 9.9 | 12.55 | 124 | 6810 | 24.5 | 782 | 27.58 | 69% |
| APC SF 10x3.8 | 1 | 10.9 | 14.3 | 155 | 7170 | 25.8 | 884 | 31.18 | 66% |
| APC SF 10x4.7 | 1 | 6.9 | 8.1 | 55 | 5190 | 23.1 | 478 | 16.86 | 75% |
| APC SF 10x4.7 | 1 | 7.9 | 9.85 | 77 | 5670 | 25.2 | 584 | 20.60 | 72% |
| APC SF 10x4.7 | 1 | 8.9 | 11.75 | 104 | 6120 | 27.2 | 702 | 24.76 | 69% |
| APC SF 10x4.7 | 1 | 9.9 | 13.5 | 133 | 6510 | 29.0 | 804 | 28.36 | 66% |
| APC SF 10x4.7 | 1 | 10.9 | 15.2 | 165 | 6870 | 30.6 | 890 | 31.39 | 63% |
| GWS HD 10x6 | 1 | 6.9 | 6.9 | 47 | 5490 | 31.2 | 429 | 15.13 | 80% |
| GWS HD 10x6 | 1 | 7.9 | 8.4 | 66 | 6060 | 34.4 | 522 | 18.41 | 77% |
| GWS HD 10x6 | 1 | 8.9 | 9.85 | 87 | 6600 | 37.5 | 623 | 21.98 | 74% |
| GWS HD 10x6 | 1 | 9.9 | 11.4 | 112 | 7110 | 40.4 | 724 | 25.54 | 72% |
| GWS HD 10x6 | 1 | 10.9 | 12.8 | 139 | 7560 | 43.0 | 816 | 28.78 | 69% |
Comments
Dr Kiwi on 2011-05-12 07:32:49
Overall length (= shaft length) = 44.87mm
