Common Sense RC - E5-M-18
Specifications
- Type: Outrunner
- Weight: 44.00g (1.55oz)
- Diameter: 27.80mm (1.09in)
- Length: 27.80mm (1.09in)
- Shaft Diameter: 3.00mm (0.12in)
- Maximum Amps: 16

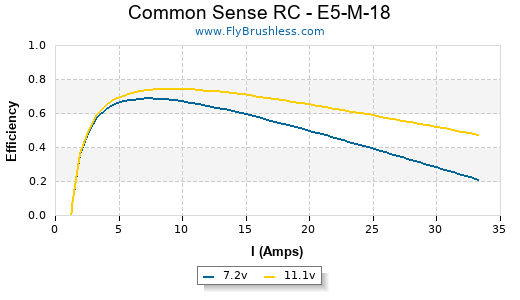

Constants
- kV: 1560
- Rm: 0.17
- Io: 1.25
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 1 | 10650 |
| 8 | 1.05 | 12150 |
| 10 | 1.25 | 15270 |
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| APC E 6x5.5 | 1 | 6.9 | 6.1 | 42 | 9360 | 48.8 | 184 | 6.49 | 87% |
| APC E 6x5.5 | 1 | 7.9 | 7.45 | 58 | 10530 | 54.8 | 238 | 8.40 | 85% |
| APC E 6x5.5 | 1 | 8.9 | 8.7 | 77 | 11610 | 60.5 | 292 | 10.30 | 84% |
| APC E 6x5.5 | 1 | 9.9 | 9.8 | 97 | 12750 | 66.4 | 368 | 12.98 | 83% |
| APC E 6x5.5 | 1 | 10.9 | 11.25 | 122 | 13950 | 72.7 | 439 | 15.49 | 82% |
| APC SF 7x4 | 1 | 6.9 | 6.95 | 47 | 8970 | 34.0 | 318 | 11.22 | 83% |
| APC SF 7x4 | 1 | 7.9 | 9.05 | 71 | 10140 | 38.4 | 418 | 14.74 | 82% |
| APC SF 7x4 | 1 | 8.8 | 10.9 | 95 | 11010 | 41.7 | 501 | 17.67 | 80% |
| APC SF 7x4 | 1 | 9.8 | 12.9 | 126 | 11910 | 45.1 | 594 | 20.95 | 78% |
| APC SF 7x4 | 1 | 10.8 | 15 | 162 | 12750 | 48.3 | 694 | 24.48 | 76% |
| GWS HD 8x4 | 1 | 6.9 | 7.9 | 54 | 8760 | 33.2 | 402 | 14.18 | 81% |
| GWS HD 8x4 | 1 | 7.8 | 9.9 | 77 | 9870 | 37.4 | 504 | 17.78 | 81% |
| GWS HD 8x4 | 1 | 8.8 | 11.7 | 102 | 10800 | 40.9 | 611 | 21.55 | 79% |
| GWS HD 8x4 | 1 | 9.8 | 13.9 | 136 | 11700 | 44.3 | 735 | 25.93 | 77% |
| GWS HD 8x4 | 1 | 10.8 | 16.1 | 173 | 12480 | 47.3 | 850 | 29.98 | 74% |
| APC SF 9x3.8 | 1 | 6.8 | 13.4 | 91 | 7440 | 26.8 | 575 | 20.28 | 70% |
| APC SF 9x3.8 | 1 | 7.4 | 15 | 111 | 7800 | 28.1 | 647 | 22.82 | 68% |
| APC E 9x4.5 | 1 | 6.8 | 12.55 | 85 | 7680 | 32.7 | 562 | 19.82 | 72% |
| APC E 9x4.5 | 1 | 7.4 | 14.05 | 103 | 8130 | 34.6 | 629 | 22.19 | 70% |
| GWS HD 9x5 | 1 | 6.8 | 12.65 | 86 | 7650 | 36.2 | 572 | 20.18 | 72% |
| GWS HD 9x5 | 1 | 7.4 | 14.15 | 104 | 8130 | 38.5 | 644 | 22.72 | 70% |
| APC E 9x6 | 1 | 6.8 | 14.9 | 101 | 7110 | 40.4 | 585 | 20.64 | 67% |
