Suppo - A2204/19
Specifications
- Type: Outrunner
- Weight: 23.00g (0.81oz)
- Diameter: 27.60mm (1.09in)
- Length: 17.30mm (0.68in)
- Shaft Diameter: 3.00mm (0.12in)
- Maximum Amps: 5

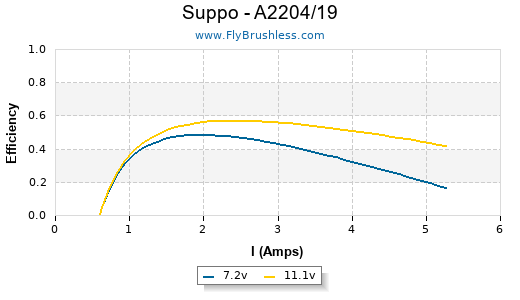

Constants
- kV: 1660
- Rm: 1.117
- Io: 0.6
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 0.5 | 10630 |
| 8 | 0.55 | 12230 |
| 10 | 0.6 | 15120 |
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| APC E 6x5.5 | 1 | 7 | 3 | 21 | 6870 | 35.8 | 97 | 3.42 | 59% |
| APC E 6x5.5 | 1 | 7.9 | 3.45 | 27 | 7500 | 39.1 | 113 | 3.99 | 57% |
| APC E 6x5.5 | 1 | 8.9 | 3.95 | 35 | 8040 | 41.9 | 134 | 4.73 | 54% |
| APC E 6x5.5 | 1 | 9.9 | 4.5 | 44 | 8640 | 45.0 | 156 | 5.50 | 53% |
| APC E 6x5.5 | 1 | 10.9 | 5 | 54 | 9060 | 47.2 | 175 | 6.17 | 50% |
| GWS HD 7x3.5 | 1 | 7 | 2.3 | 16 | 7710 | 25.6 | 132 | 4.66 | 66% |
| GWS HD 7x3.5 | 1 | 7.9 | 2.7 | 21 | 8460 | 28.0 | 162 | 5.71 | 65% |
| GWS HD 7x3.5 | 1 | 8.9 | 3.1 | 27 | 9150 | 30.3 | 192 | 6.77 | 62% |
| GWS HD 7x3.5 | 1 | 9.9 | 3.5 | 34 | 9840 | 32.6 | 227 | 8.01 | 60% |
| GWS HD 7x3.5 | 1 | 10.9 | 3.95 | 43 | 10530 | 34.9 | 262 | 9.24 | 58% |
| APC SF 7x4 | 1 | 7 | 3.15 | 22 | 6630 | 25.1 | 163 | 5.75 | 57% |
| APC SF 7x4 | 1 | 7.9 | 3.7 | 29 | 7140 | 27.1 | 193 | 6.81 | 54% |
| APC SF 7x4 | 1 | 8.9 | 4.25 | 37 | 7650 | 29.0 | 222 | 7.83 | 52% |
| APC SF 7x4 | 1 | 9.9 | 4.8 | 47 | 8130 | 30.8 | 257 | 9.07 | 49% |
| APC SF 7x4 | 1 | 10.9 | 5.4 | 58 | 8550 | 32.4 | 291 | 10.26 | 47% |
| APC SF 7x6 | 1 | 6.9 | 3.85 | 26 | 5640 | 32.0 | 147 | 5.19 | 49% |
| APC SF 7x6 | 1 | 7.9 | 4.5 | 35 | 6120 | 34.8 | 175 | 6.17 | 47% |
| APC SF 7x6 | 1 | 8.9 | 5.25 | 46 | 6450 | 36.6 | 198 | 6.98 | 44% |
| APC SF 7x6 | 1 | 9.9 | 5.9 | 58 | 6720 | 38.2 | 208 | 7.34 | 41% |
| APC SF 7x6 | 1 | 10.9 | 6.5 | 70 | 6810 | 38.7 | 216 | 7.62 | 38% |
| GWS HD 8x4 | 1 | 6.9 | 3.5 | 24 | 6120 | 23.2 | 191 | 6.74 | 53% |
| GWS HD 8x4 | 1 | 7.4 | 3.85 | 28 | 6330 | 24.0 | 208 | 7.34 | 52% |
| GWS HD 8x4 | 1 | 7.9 | 4.15 | 32 | 6570 | 24.9 | 223 | 7.87 | 50% |
| GWS HD 8x4 | 1 | 8.9 | 4.75 | 42 | 6990 | 26.5 | 248 | 8.75 | 47% |
| GWS HD 8x4 | 1 | 9.9 | 5.4 | 53 | 7440 | 28.2 | 283 | 9.98 | 45% |
