AXI - 2212/34
Specifications
- Type: Outrunner
- Weight: 57.00g (2.01oz)
- Diameter: 27.70mm (1.09in)
- Length: 30.00mm (1.18in)
- Shaft Diameter: 3.17mm (0.12in)
- Maximum Amps: 10

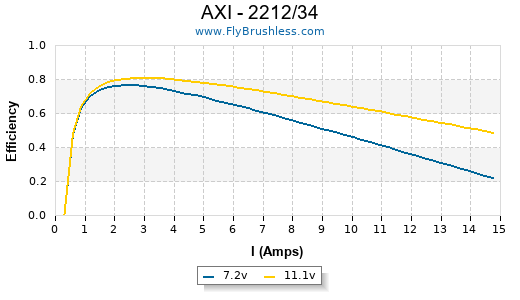

Constants
- kV: 745
- Rm: 0.38
- Io: 0.3
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 0.2 | 5160 |
| 8 | 0.25 | 5910 |
| 10 | 0.3 | 7380 |
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| GWS HD 8x4 | 1 | 14 | 4.45 | 62 | 9360 | 35.5 | 469 | 16.54 | 90% |
| GWS HD 9x5 | 1 | 7 | 2.5 | 17 | 4650 | 22.0 | 204 | 7.20 | 89% |
| GWS HD 9x5 | 1 | 7.6 | 2.7 | 20 | 4860 | 23.0 | 208 | 7.34 | 86% |
| GWS HD 9x5 | 1 | 7.9 | 3.05 | 24 | 5190 | 24.6 | 260 | 9.17 | 88% |
| GWS HD 9x5 | 1 | 8.9 | 3.65 | 32 | 5790 | 27.4 | 321 | 11.32 | 87% |
| GWS HD 9x5 | 1 | 9.9 | 4.3 | 42 | 6300 | 29.8 | 387 | 13.65 | 85% |
| GWS HD 9x5 | 1 | 10.9 | 5.05 | 55 | 6870 | 32.5 | 459 | 16.19 | 85% |
| GWS HD 9x5 | 1 | 11.3 | 4.8 | 54 | 6660 | 31.5 | 408 | 14.39 | 79% |
| GWS HD 9x5 | 1 | 14 | 7.7 | 107 | 8520 | 40.3 | 740 | 26.10 | 82% |
| APC SF 9x6 | 1 | 10.7 | 8.3 | 88 | 5790 | 32.9 | 460 | 16.23 | 73% |
| GWS RS 10x4.7 | 1 | 7.3 | 4.4 | 32 | 4290 | 19.1 | 314 | 11.08 | 79% |
| GWS RS 10x4.7 | 1 | 10.6 | 7.7 | 81 | 5610 | 25.0 | 560 | 19.75 | 71% |
| GWS HD 10x6 | 1 | 6.9 | 3.1 | 21 | 4260 | 24.2 | 238 | 8.40 | 83% |
| GWS HD 10x6 | 1 | 7.6 | 3.6 | 27 | 4680 | 26.6 | 272 | 9.59 | 83% |
| GWS HD 10x6 | 1 | 7.9 | 3.8 | 30 | 4770 | 27.1 | 302 | 10.65 | 81% |
| GWS HD 10x6 | 1 | 8.8 | 4.5 | 39 | 5280 | 30.0 | 360 | 12.70 | 81% |
| GWS HD 10x6 | 1 | 9.8 | 5.3 | 51 | 5730 | 32.6 | 436 | 15.38 | 78% |
| GWS HD 10x6 | 1 | 10.6 | 6.1 | 64 | 6100 | 34.7 | 474 | 16.72 | 77% |
| GWS HD 10x6 | 1 | 10.7 | 6 | 64 | 6150 | 34.9 | 500 | 17.64 | 77% |
| GWS HD 10x6 | 1 | 11.1 | 5.5 | 61 | 5940 | 33.8 | 450 | 15.87 | 72% |
| GWS HD 10x6 | 1 | 11.2 | 6.3 | 70 | 6300 | 35.8 | 508 | 17.92 | 76% |
| GWS HD 10x6 | 1 | 11.5 | 3.8 | 43 | 5340 | 30.3 | 364 | 12.84 | 62% |
| GWS HD 10x6 | 1 | 11.9 | 2.5 | 29 | 4620 | 26.2 | 272 | 9.59 | 52% |
| GWS HD 10x6 | 1 | 12.3 | 1 | 12 | 3270 | 18.6 | 132 | 4.66 | 36% |
| GWS HD 10x6 | 1 | 14 | 10.1 | 141 | 7860 | 44.7 | 875 | 30.86 | 75% |
| GWS HD 10x8 | 1 | 6.8 | 4.65 | 31 | 3840 | 29.1 | 250 | 8.82 | 76% |
| GWS HD 10x8 | 1 | 6.9 | 5.1 | 35 | 4080 | 30.9 | 284 | 10.02 | 79% |
| GWS HD 10x8 | 1 | 7.7 | 5.65 | 43 | 4260 | 32.3 | 304 | 10.72 | 74% |
| GWS HD 10x8 | 1 | 7.9 | 6.3 | 49 | 4500 | 34.1 | 359 | 12.66 | 76% |
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
| GWS HD 10x8 | 1 | 8.7 | 6.65 | 57 | 4650 | 35.2 | 364 | 12.84 | 72% |
| GWS HD 10x8 | 1 | 8.9 | 7.4 | 65 | 4890 | 37.0 | 425 | 14.99 | 74% |
| GWS HD 10x8 | 1 | 9.6 | 7.75 | 74 | 4980 | 37.7 | 428 | 15.10 | 70% |
| GWS HD 10x8 | 1 | 9.6 | 7.75 | 74 | 4980 | 37.7 | 428 | 15.10 | 70% |
| GWS HD 10x8 | 1 | 9.9 | 8.7 | 86 | 5280 | 40.0 | 503 | 17.74 | 72% |
| GWS HD 10x8 | 1 | 10.6 | 8.75 | 92 | 5370 | 40.7 | 486 | 17.14 | 68% |
| GWS HD 10x8 | 1 | 10.9 | 9.9 | 107 | 5640 | 42.7 | 570 | 20.11 | 69% |
| APC SF 11x4.7 | 1 | 7.3 | 5.1 | 37 | 4050 | 18.0 | 356 | 12.56 | 74% |
| APC SF 11x4.7 | 1 | 10.3 | 8.9 | 91 | 5250 | 23.4 | 648 | 22.86 | 68% |
| APC SF 11x4.7 | 1 | 10.7 | 9 | 96 | 5400 | 24.0 | 675 | 23.81 | 68% |
| GWS HD 11x7 | 1 | 6.8 | 4.5 | 30 | 3870 | 25.6 | 324 | 11.43 | 76% |
| GWS HD 11x7 | 1 | 6.8 | 4.4 | 29 | 3930 | 26.1 | 323 | 11.39 | 78% |
| GWS HD 11x7 | 1 | 7.1 | 3.2 | 22 | 3540 | 23.5 | 260 | 9.17 | 67% |
| GWS HD 11x7 | 1 | 7.4 | 5 | 37 | 4170 | 27.6 | 356 | 12.56 | 76% |
| GWS HD 11x7 | 1 | 7.7 | 5.5 | 42 | 4320 | 28.6 | 406 | 14.32 | 75% |
| GWS HD 11x7 | 1 | 7.8 | 5.4 | 42 | 4350 | 28.8 | 390 | 13.76 | 75% |
| GWS HD 11x7 | 1 | 8.7 | 6.3 | 54 | 4740 | 31.4 | 465 | 16.40 | 73% |
| GWS HD 11x7 | 1 | 8.7 | 6.5 | 56 | 4740 | 31.4 | 496 | 17.50 | 73% |
| GWS HD 11x7 | 1 | 9.6 | 7.35 | 70 | 5100 | 33.8 | 554 | 19.54 | 71% |
| GWS HD 11x7 | 1 | 9.7 | 7.4 | 71 | 5130 | 34.0 | 540 | 19.05 | 71% |
| GWS HD 11x7 | 1 | 10.6 | 6.3 | 66 | 4860 | 32.2 | 500 | 17.64 | 62% |
| GWS HD 11x7 | 1 | 10.6 | 8.4 | 89 | 5460 | 36.2 | 640 | 22.58 | 69% |
| GWS HD 11x7 | 1 | 10.7 | 8.3 | 88 | 5460 | 36.2 | 635 | 22.40 | 68% |
| GWS HD 11x7 | 1 | 10.8 | 8.7 | 93 | 5520 | 36.6 | 646 | 22.79 | 69% |
| GWS HD 11x7 | 1 | 10.8 | 8.5 | 91 | 5400 | 35.8 | 620 | 21.87 | 67% |
| GWS HD 11x7 | 1 | 11.1 | 8.9 | 98 | 5580 | 37.0 | 657 | 23.17 | 67% |
| GWS HD 11x7 | 1 | 11.2 | 4 | 44 | 4320 | 28.6 | 382 | 13.47 | 52% |
| GWS HD 11x7 | 1 | 11.7 | 2.2 | 25 | 3510 | 23.3 | 256 | 9.03 | 40% |
| GWS HD 11x7 | 1 | 12.1 | 1 | 12 | 2640 | 17.5 | 136 | 4.80 | 29% |
| APC SF 12x3.8 | 1 | 6.7 | 5.1 | 34 | 3720 | 13.4 | 372 | 13.12 | 75% |
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
| APC SF 12x3.8 | 1 | 7.7 | 6.4 | 49 | 4080 | 14.7 | 470 | 16.58 | 71% |
| APC SF 12x3.8 | 1 | 8.6 | 7.6 | 65 | 4380 | 15.8 | 564 | 19.89 | 68% |
| APC SF 12x3.8 | 1 | 9.6 | 8.9 | 85 | 4650 | 16.7 | 662 | 23.35 | 65% |
| APC SF 12x3.8 | 1 | 10.6 | 10.1 | 107 | 4890 | 17.6 | 744 | 26.24 | 62% |
| GWS HD 12x8 | 1 | 6.7 | 5.65 | 37 | 3570 | 27.1 | 384 | 13.55 | 72% |
| GWS HD 12x8 | 1 | 7.2 | 6.3 | 45 | 3720 | 28.2 | 414 | 14.60 | 69% |
| GWS HD 12x8 | 1 | 7.7 | 6.8 | 52 | 3960 | 30.0 | 470 | 16.58 | 69% |
| GWS HD 12x8 | 1 | 8.6 | 8.1 | 69 | 4290 | 32.5 | 570 | 20.11 | 67% |
| GWS HD 12x8 | 1 | 9.6 | 9.35 | 89 | 4590 | 34.8 | 660 | 23.28 | 64% |
| GWS HD 12x8 | 1 | 10.1 | 10.3 | 104 | 4650 | 35.2 | 680 | 23.99 | 62% |
| GWS HD 12x8 | 1 | 10.6 | 10.4 | 110 | 4830 | 36.6 | 730 | 25.75 | 61% |
| APC E 13x6.5 | 1 | 6.7 | 5.75 | 38 | 3510 | 21.6 | 410 | 14.46 | 70% |
| APC E 13x6.5 | 1 | 7.6 | 7 | 53 | 3840 | 23.6 | 506 | 17.85 | 68% |
| APC E 13x6.5 | 1 | 8.6 | 8.3 | 71 | 4170 | 25.7 | 606 | 21.38 | 65% |
| APC E 13x6.5 | 1 | 9.6 | 9.5 | 91 | 4470 | 27.5 | 698 | 24.62 | 62% |
| APC E 13x6.5 | 1 | 10.6 | 10.8 | 114 | 4770 | 29.4 | 800 | 28.22 | 60% |
