LightFlightRC - 28-37-4 Silver #3



Specifications

  • Type: Inrunner
  • Weight: 76.00g (2.68oz)
  • Diameter: 28.00mm (1.10in)
  • Length: 37.15mm (1.46in)
  • Shaft Diameter: 3.17mm (0.12in)
  • Maximum Amps: 25

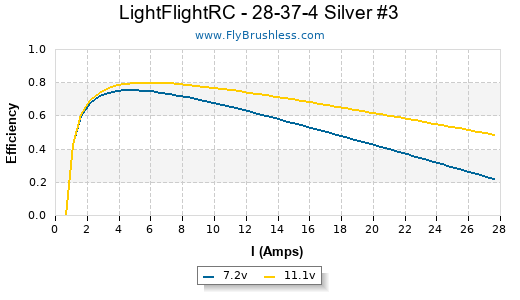

Constants

  • kV: 2164
  • Rm: 0.203
  • Io: 0.62



Io Test Data

Dr Kiwi test results
Volts Amps RPM
10.035 0.62 20850

Test Data

Dr Kiwi test results
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
Zagi Carbon 5.1x4.9 1 6.9 6.1 42 12570 58.3 226 7.97 84%
Zagi Carbon 5.1x4.9 1 7.9 7.6 60 14070 65.3 287 10.12 82%
Zagi Carbon 5.1x4.9 1 8.9 9.1 80 15420 71.5 348 12.28 80%
Zagi Carbon 5.1x4.9 1 9.9 10.85 107 16800 78.0 413 14.57 78%
Zagi Carbon 5.1x4.9 1 10.9 12.65 137 18030 83.7 484 17.07 76%
APC E 5.25x6.25 1 6.9 9.2 63 11550 68.4 191 6.74 77%
APC E 5.25x6.25 1 7.9 11.25 88 12750 75.5 237 8.36 75%
APC E 5.25x6.25 1 8.9 13.2 117 13950 82.6 280 9.88 72%
APC E 5.25x6.25 1 9.9 15.3 151 15000 88.8 321 11.32 70%
APC E 5.25x6.25 1 10.9 17.4 189 15990 94.6 364 12.84 68%
APC E 6x5.5 1 6.9 10.25 70 11100 57.8 280 9.88 74%
APC E 6x5.5 1 7.9 12.35 97 12300 64.1 354 12.49 72%
APC E 6x5.5 1 8.8 14.25 125 13410 69.8 423 14.92 70%
APC E 6x5.5 1 9.8 16.5 161 14430 75.2 495 17.46 68%
