Mega - RCn 400/15/6



Specifications

  • Type: Outrunner
  • Weight: 68.00g (2.40oz)
  • Diameter: 28.00mm (1.10in)
  • Length: 33.30mm (1.31in)
  • Shaft Diameter: 3.17mm (0.12in)
  • Maximum Amps: 15

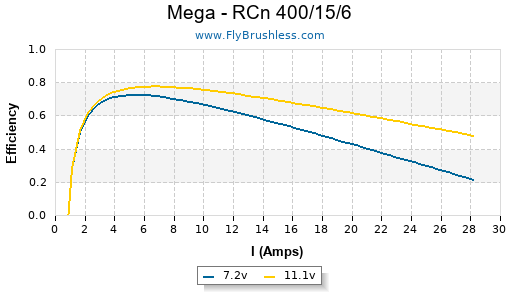

Constants

  • kV: 1030
  • Rm: 0.2
  • Io: 0.8



Io Test Data

Dr Kiwi test results
Volts Amps RPM
7 0.65 7060
8 0.7 8130
10 0.8 10110

Test Data

Dr Kiwi test results
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
Graupner CAM Speed 5.2x5.2 1 6.9 1.7 11 6660 32.8 59 2.08 94%
Graupner CAM Speed 5.2x5.2 1 7.9 2 15 7590 37.4 77 2.72 93%
Graupner CAM Speed 5.2x5.2 1 8.9 2.35 20 8460 41.7 94 3.32 92%
Graupner CAM Speed 5.2x5.2 1 9.9 2.75 27 9360 46.1 118 4.16 92%
Graupner CAM Speed 5.2x5.2 1 10.9 3.2 34 10230 50.4 142 5.01 91%
Graupner CAM Speed 5.2x5.2 1 14 4.65 65 12930 63.7 227 8.01 90%
Graupner CAM Speed 5.2x5.2 1 14.6 5.05 73 13410 66.0 251 8.85 89%
GWS HD 8x4 1 6.9 3.35 23 6330 24.0 215 7.58 89%
GWS HD 8x4 1 7.8 4.15 32 7140 27.1 278 9.81 89%
GWS HD 8x4 1 8.8 4.9 43 7920 30.0 338 11.92 87%
GWS HD 8x4 1 9.7 5.8 56 8670 32.8 411 14.50 87%
GWS HD 8x4 1 10.7 6.85 73 9420 35.7 493 17.39 85%
APC E 8x4 1 6.8 4 27 6180 23.4 240 8.47 88%
APC E 8x4 1 7.8 4.95 38 6960 26.4 306 10.79 87%
APC E 8x4 1 8.8 6.1 53 7740 29.3 380 13.40 85%
APC E 8x4 1 9.8 7.2 70 8490 32.2 476 16.79 84%
APC E 8x4 1 10.7 8.3 88 9150 34.7 548 19.33 83%
GWS HD 8x6 1 6.8 5.25 35 6000 34.1 255 8.99 86%
GWS HD 8x6 1 6.9 4.9 33 6090 34.6 259 9.14 86%
GWS HD 8x6 1 7.7 6.4 49 6660 37.8 315 11.11 84%
GWS HD 8x6 1 7.9 6.05 47 6840 38.9 325 11.46 84%
GWS HD 8x6 1 8.7 7.75 67 7350 41.8 391 13.79 82%
GWS HD 8x6 1 8.9 7.3 64 7530 42.8 396 13.97 82%
GWS HD 8x6 1 9.6 9.1 87 8010 45.5 458 16.16 81%
GWS HD 8x6 1 9.8 8.6 84 8190 46.5 467 16.47 81%
GWS HD 8x6 1 10.6 10.6 112 8610 48.9 535 18.87 79%
GWS HD 8x6 1 10.8 10.1 109 8850 50.3 546 19.26 80%
APC SF 8x6 1 6.7 6.8 45 5640 32.0 310 10.93 82%
APC SF 8x6 1 7.7 8.5 65 6240 35.5 386 13.62 79%
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
APC SF 8x6 1 8.6 10.3 88 6780 38.5 462 16.30 77%
APC SF 8x6 1 9.6 12.3 118 7290 41.4 550 19.40 74%
APC SF 8x6 1 10.5 13.9 145 7770 44.1 614 21.66 72%
APC E 8x6 1 6.8 5.65 38 5880 33.4 255 8.99 84%
APC E 8x6 1 7.8 7 54 6600 37.5 328 11.57 82%
APC E 8x6 1 8.7 8.3 72 7230 41.1 386 13.62 81%
APC E 8x6 1 9.7 9.9 96 7890 44.8 473 16.68 79%
APC E 8x6 1 10.6 10.9 115 8490 48.2 570 20.11 78%
APC E 9x4.5 1 8.7 8 69 7350 31.3 527 18.59 82%
GWS HD 9x5 1 6.9 5.3 36 6030 28.6 341 12.03 85%
GWS HD 9x5 1 7.9 6.45 50 6750 32.0 431 15.20 83%
GWS HD 9x5 1 8.9 7.8 69 7410 35.1 532 18.77 81%
GWS HD 9x5 1 9.8 9.2 90 8070 38.2 642 22.65 80%
GWS HD 9x5 1 10.8 10.85 117 8670 41.0 748 26.38 78%
APC SF 9x6 1 7 9.6 67 5430 30.9 459 16.19 75%
APC E 9x6 1 7 7.35 51 5820 33.1 401 14.14 81%
APC E 9x6 1 10.5 13.05 137 8010 45.5 755 26.63 74%
GWS HD 9x7.5 1 6.7 8.3 55 5280 37.5 332 11.71 77%
GWS HD 9x7.5 1 6.9 8.25 56 5490 39.0 354 12.49 77%
GWS HD 9x7.5 1 7.6 10.2 77 5850 41.5 412 14.53 75%
GWS HD 9x7.5 1 7.9 9.95 78 6060 43.0 428 15.10 74%
GWS HD 9x7.5 1 8.6 12.2 104 6360 45.2 496 17.50 72%
GWS HD 9x7.5 1 9.5 14.2 134 6840 48.6 569 20.07 70%
GWS HD 9x7.5 1 9.8 13.7 134 7140 50.7 588 20.74 71%
GWS HD 9x7.5 1 10.4 15.8 164 7290 51.8 646 22.79 68%
GWS HD 9x7.5 1 10.7 15.85 169 7620 54.1 680 23.99 69%
APC E 9x7.5 1 10.4 16.5 171 7260 51.6 650 22.93 68%
APC E 10x5 1 6.8 7.35 49 5580 26.4 436 15.38 80%
APC E 10x5 1 10.6 14 148 7860 37.2 865 30.51 72%
GWS HD 10x6 1 6.9 7.2 49 5670 32.2 429 15.13 80%
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
GWS HD 10x6 1 7.8 8.75 68 6300 35.8 533 18.80 78%
GWS HD 10x6 1 8.9 10.6 94 6930 39.4 649 22.89 76%
GWS HD 10x6 1 9.8 12.5 122 7470 42.4 772 27.23 74%
GWS HD 10x6 1 10.8 14.1 152 7950 45.2 883 31.15 71%
