Hyperion - Z2213-24
Specifications
- Type: Outrunner
- Weight: 58.00g (2.05oz)
- Diameter: 27.80mm (1.09in)
- Length: 31.60mm (1.24in)
- Shaft Diameter: 3.00mm (0.12in)
- Maximum Amps: 16

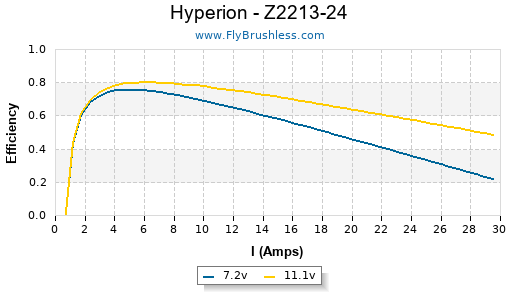

Constants
- kV: 920
- Rm: 0.19
- Io: 0.65
Io Test Data
Dr Kiwi test results
Volts | Amps | RPM |
---|---|---|
7 | 0.55 | 6320 |
8 | 0.6 | 7230 |
10 | 0.65 | 9030 |
Test Data
Dr Kiwi test results
Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
---|---|---|---|---|---|---|---|---|---|
APC SF 8x3.8 | 1 | 6.9 | 3.6 | 24 | 5790 | 20.8 | 234 | 8.25 | 91% |
APC SF 8x3.8 | 1 | 7.9 | 4.45 | 35 | 6510 | 23.4 | 305 | 10.76 | 90% |
APC SF 8x3.8 | 1 | 8.9 | 5.4 | 48 | 7140 | 25.7 | 378 | 13.33 | 87% |
APC SF 8x3.8 | 1 | 9.9 | 6.5 | 64 | 7800 | 28.1 | 458 | 16.16 | 86% |
APC SF 8x3.8 | 1 | 10.9 | 7.7 | 83 | 8460 | 30.4 | 549 | 19.37 | 84% |
APC SF 8x3.8 | 1 | 10.9 | 8.05 | 87 | 8610 | 31.0 | 530 | 18.70 | 86% |
APC SF 8x3.8 | 1 | 11 | 7.8 | 85 | 8625 | 31.0 | 0 | 0.00 | 85% |
GWS HD 8x4 | 1 | 6.9 | 2.7 | 18 | 5970 | 22.6 | 189 | 6.67 | 94% |
GWS HD 8x4 | 1 | 7 | 2.65 | 18 | 5970 | 22.6 | 188 | 6.63 | 93% |
GWS HD 8x4 | 1 | 7 | 3 | 21 | 6210 | 23.5 | 203 | 7.16 | 96% |
GWS HD 8x4 | 1 | 7.9 | 3.3 | 26 | 6690 | 25.3 | 240 | 8.47 | 92% |
GWS HD 8x4 | 1 | 7.9 | 3.25 | 25 | 6720 | 25.4 | 239 | 8.43 | 92% |
GWS HD 8x4 | 1 | 7.9 | 3.7 | 29 | 7020 | 26.6 | 261 | 9.21 | 97% |
GWS HD 8x4 | 1 | 8.9 | 3.95 | 35 | 7500 | 28.4 | 300 | 10.58 | 92% |
GWS HD 8x4 | 1 | 8.9 | 4.4 | 39 | 7770 | 29.4 | 322 | 11.36 | 95% |
GWS HD 8x4 | 1 | 8.9 | 3.95 | 35 | 7440 | 28.2 | 300 | 10.58 | 91% |
GWS HD 8x4 | 1 | 9.9 | 4.7 | 46 | 8220 | 31.1 | 366 | 12.91 | 90% |
GWS HD 8x4 | 1 | 9.9 | 5.2 | 51 | 8520 | 32.3 | 396 | 13.97 | 94% |
GWS HD 8x4 | 1 | 9.9 | 4.6 | 45 | 8190 | 31.0 | 363 | 12.80 | 90% |
GWS HD 8x4 | 1 | 10.9 | 5.45 | 59 | 8910 | 33.8 | 437 | 15.41 | 89% |
GWS HD 8x4 | 1 | 10.9 | 6 | 65 | 9270 | 35.1 | 464 | 16.37 | 92% |
GWS HD 8x4 | 1 | 10.9 | 5.3 | 57 | 8880 | 33.6 | 428 | 15.10 | 89% |
APC E 8x4 | 1 | 7 | 3.35 | 23 | 5850 | 22.2 | 219 | 7.72 | 91% |
APC E 8x4 | 1 | 7.9 | 4.1 | 32 | 6540 | 24.8 | 279 | 9.84 | 90% |
APC E 8x4 | 1 | 8.9 | 4.9 | 43 | 7290 | 27.6 | 346 | 12.20 | 89% |
APC E 8x4 | 1 | 9.9 | 5.8 | 57 | 8010 | 30.3 | 422 | 14.89 | 88% |
APC E 8x4 | 1 | 10.9 | 6.75 | 73 | 8670 | 32.8 | 500 | 17.64 | 86% |
MA Electric-only 8x4 | 1 | 7 | 4.2 | 29 | 5700 | 21.6 | 211 | 7.44 | 89% |
MA Electric-only 8x4 | 1 | 7.9 | 5.2 | 41 | 6390 | 24.2 | 272 | 9.59 | 88% |
Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
MA Electric-only 8x4 | 1 | 8.9 | 6.1 | 54 | 7020 | 26.6 | 334 | 11.78 | 86% |
MA Electric-only 8x4 | 1 | 9.9 | 7.05 | 69 | 7680 | 29.1 | 403 | 14.22 | 84% |
MA Electric-only 8x4 | 1 | 10.9 | 8.05 | 87 | 8370 | 31.7 | 486 | 17.14 | 83% |
Graupner CAM SLIM 8x4 | 1 | 6.9 | 2.9 | 20 | 5910 | 22.4 | 194 | 6.84 | 93% |
Graupner CAM SLIM 8x4 | 1 | 7.9 | 3.6 | 28 | 6690 | 25.3 | 254 | 8.96 | 92% |
Graupner CAM SLIM 8x4 | 1 | 8.9 | 4.3 | 38 | 7410 | 28.1 | 316 | 11.15 | 90% |
Graupner CAM SLIM 8x4 | 1 | 9.9 | 5 | 49 | 8130 | 30.8 | 378 | 13.33 | 89% |
Graupner CAM SLIM 8x4 | 1 | 10.9 | 5.85 | 63 | 8850 | 33.5 | 456 | 16.08 | 88% |
Graupner CAM 8x4 | 1 | 7 | 2.9 | 20 | 5940 | 22.5 | 177 | 6.24 | 92% |
Graupner CAM 8x4 | 1 | 7.9 | 3.4 | 26 | 6660 | 25.2 | 231 | 8.15 | 92% |
Graupner CAM 8x4 | 1 | 8.9 | 4.1 | 36 | 7440 | 28.2 | 291 | 10.26 | 91% |
Graupner CAM 8x4 | 1 | 9.9 | 4.75 | 47 | 8190 | 31.0 | 357 | 12.59 | 90% |
Graupner CAM 8x4 | 1 | 10.9 | 5.5 | 59 | 8850 | 33.5 | 424 | 14.96 | 88% |
GWS RS 8x4.3 | 1 | 6.9 | 3.5 | 24 | 5790 | 23.6 | 229 | 8.08 | 91% |
GWS RS 8x4.3 | 1 | 7.9 | 4.3 | 33 | 6570 | 26.8 | 294 | 10.37 | 90% |
GWS RS 8x4.3 | 1 | 8.9 | 5.05 | 44 | 7230 | 29.4 | 359 | 12.66 | 88% |
GWS RS 8x4.3 | 1 | 9.9 | 5.9 | 58 | 7920 | 32.2 | 430 | 15.17 | 87% |
GWS RS 8x4.3 | 1 | 10.9 | 6.8 | 74 | 8640 | 35.2 | 512 | 18.06 | 86% |
Graupner SF 8x4.5 | 1 | 6.9 | 4.4 | 30 | 5610 | 23.9 | 269 | 9.49 | 88% |
Graupner SF 8x4.5 | 1 | 7.9 | 5.4 | 42 | 6330 | 27.0 | 346 | 12.20 | 87% |
Graupner SF 8x4.5 | 1 | 8.9 | 6.4 | 56 | 6990 | 29.8 | 423 | 14.92 | 85% |
Graupner SF 8x4.5 | 1 | 9.9 | 7.5 | 74 | 7620 | 32.5 | 506 | 17.85 | 84% |
Graupner SF 8x4.5 | 1 | 10.9 | 8.55 | 93 | 8250 | 35.2 | 587 | 20.71 | 82% |
MA Electric-only 8x5 | 1 | 6.9 | 4.75 | 32 | 5550 | 26.3 | 219 | 7.72 | 87% |
MA Electric-only 8x5 | 1 | 7.9 | 5.9 | 46 | 6240 | 29.6 | 282 | 9.95 | 86% |
MA Electric-only 8x5 | 1 | 8.9 | 7 | 62 | 6900 | 32.7 | 345 | 12.17 | 84% |
MA Electric-only 8x5 | 1 | 9.9 | 8.15 | 80 | 7500 | 35.5 | 413 | 14.57 | 82% |
MA Electric-only 8x5 | 1 | 10.9 | 9.3 | 101 | 8070 | 38.2 | 483 | 17.04 | 80% |
GWS HD 8x6 | 1 | 7 | 4.75 | 33 | 5880 | 33.4 | 246 | 8.68 | 91% |
GWS HD 8x6 | 1 | 7.9 | 5.75 | 45 | 6540 | 37.2 | 307 | 10.83 | 90% |
Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
GWS HD 8x6 | 1 | 8.9 | 6.9 | 61 | 7200 | 40.9 | 374 | 13.19 | 88% |
GWS HD 8x6 | 1 | 9.9 | 8.2 | 81 | 7890 | 44.8 | 453 | 15.98 | 87% |
GWS HD 8x6 | 1 | 10.9 | 9.3 | 101 | 8490 | 48.2 | 520 | 18.34 | 85% |
APC E 8x6 | 1 | 7 | 5.05 | 35 | 5640 | 32.0 | 221 | 7.80 | 88% |
APC E 8x6 | 1 | 7.9 | 6.2 | 48 | 6300 | 35.8 | 278 | 9.81 | 87% |
APC E 8x6 | 1 | 8.9 | 7.45 | 66 | 6900 | 39.2 | 337 | 11.89 | 84% |
APC E 8x6 | 1 | 9.9 | 8.8 | 87 | 7500 | 42.6 | 405 | 14.29 | 82% |
APC E 8x6 | 1 | 9.9 | 8.8 | 87 | 7455 | 42.4 | 0 | 0.00 | 82% |
APC E 8x6 | 1 | 10.1 | 9.2 | 92 | 7575 | 43.0 | 0 | 0.00 | 82% |
APC E 8x6 | 1 | 10.9 | 10.25 | 111 | 8100 | 46.0 | 474 | 16.72 | 81% |
APC E 8x6 | 1 | 11 | 10.4 | 114 | 8070 | 45.9 | 0 | 0.00 | 80% |
Aeronaut Carbon 8.5x5 | 1 | 6.9 | 3.8 | 26 | 5760 | 27.3 | 215 | 7.58 | 91% |
Aeronaut Carbon 8.5x5 | 1 | 7.9 | 4.65 | 36 | 6450 | 30.5 | 278 | 9.81 | 89% |
Aeronaut Carbon 8.5x5 | 1 | 8.9 | 5.6 | 49 | 7170 | 34.0 | 348 | 12.28 | 88% |
Aeronaut Carbon 8.5x5 | 1 | 9.9 | 6.5 | 64 | 7890 | 37.4 | 432 | 15.24 | 87% |
Aeronaut Carbon 8.5x5 | 1 | 10.9 | 7.4 | 80 | 8490 | 40.2 | 507 | 17.88 | 85% |
MA Electric-only 8.5x6 | 1 | 6.9 | 6.4 | 44 | 5220 | 29.7 | 284 | 10.02 | 82% |
MA Electric-only 8.5x6 | 1 | 7.9 | 7.7 | 60 | 5880 | 33.4 | 355 | 12.52 | 81% |
MA Electric-only 8.5x6 | 1 | 8.9 | 9.1 | 80 | 6450 | 36.6 | 440 | 15.52 | 79% |
MA Electric-only 8.5x6 | 1 | 9.9 | 10.5 | 103 | 7020 | 39.9 | 517 | 18.24 | 77% |
MA Electric-only 8.5x6 | 1 | 10.9 | 12 | 130 | 7500 | 42.6 | 601 | 21.20 | 75% |
APC SF 9x3.8 | 1 | 6.9 | 4.85 | 33 | 5520 | 19.9 | 319 | 11.25 | 87% |
APC SF 9x3.8 | 1 | 7.9 | 6.1 | 48 | 6150 | 22.1 | 411 | 14.50 | 85% |
APC SF 9x3.8 | 1 | 8.9 | 7.45 | 66 | 6780 | 24.4 | 510 | 17.99 | 83% |
APC SF 9x3.8 | 1 | 9.9 | 8.9 | 88 | 7350 | 26.4 | 615 | 21.69 | 81% |
APC SF 9x3.8 | 1 | 10.9 | 10.3 | 112 | 7860 | 28.3 | 715 | 25.22 | 78% |
Graupner CAM 9x4 | 1 | 6.9 | 3.85 | 26 | 5730 | 21.7 | 248 | 8.75 | 90% |
Graupner CAM 9x4 | 1 | 7.9 | 4.7 | 37 | 6420 | 24.3 | 324 | 11.43 | 88% |
Graupner CAM 9x4 | 1 | 8.9 | 5.55 | 49 | 7140 | 27.1 | 400 | 14.11 | 87% |
Graupner CAM 9x4 | 1 | 9.9 | 6.5 | 64 | 7860 | 29.8 | 490 | 17.28 | 86% |
Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
Graupner CAM 9x4 | 1 | 10.9 | 7.45 | 81 | 8490 | 32.2 | 574 | 20.25 | 85% |
APC E 9x4.5 | 1 | 6.9 | 4.4 | 30 | 5610 | 23.9 | 297 | 10.48 | 88% |
APC E 9x4.5 | 1 | 7.9 | 5.5 | 43 | 6270 | 26.7 | 387 | 13.65 | 86% |
APC E 9x4.5 | 1 | 8.9 | 6.55 | 58 | 6930 | 29.5 | 473 | 16.68 | 85% |
APC E 9x4.5 | 1 | 9.9 | 7.8 | 77 | 7560 | 32.2 | 564 | 19.89 | 83% |
APC E 9x4.5 | 1 | 10.9 | 9 | 98 | 8130 | 34.6 | 666 | 23.49 | 81% |
APC SF 9x4.7 | 1 | 6.9 | 5 | 34 | 5520 | 24.6 | 327 | 11.53 | 87% |
APC SF 9x4.7 | 1 | 7 | 5.15 | 36 | 5610 | 25.0 | 322 | 11.36 | 87% |
APC SF 9x4.7 | 1 | 7.9 | 6.05 | 47 | 6180 | 27.5 | 411 | 14.50 | 85% |
APC SF 9x4.7 | 1 | 7.9 | 6.3 | 49 | 6270 | 27.9 | 408 | 14.39 | 86% |
APC SF 9x4.7 | 1 | 8.8 | 7.3 | 64 | 6780 | 30.2 | 0 | 0.00 | 84% |
APC SF 9x4.7 | 1 | 8.9 | 7.1 | 63 | 6810 | 30.3 | 494 | 17.43 | 83% |
APC SF 9x4.7 | 1 | 8.9 | 7.45 | 66 | 6960 | 31.0 | 492 | 17.35 | 85% |
APC SF 9x4.7 | 1 | 9.9 | 8.3 | 82 | 7470 | 33.2 | 590 | 20.81 | 82% |
APC SF 9x4.7 | 1 | 9.9 | 8.6 | 85 | 7590 | 33.8 | 578 | 20.39 | 83% |
APC SF 9x4.7 | 1 | 9.9 | 8.6 | 85 | 7470 | 33.2 | 0 | 0.00 | 82% |
APC SF 9x4.7 | 1 | 10.1 | 8.7 | 87 | 7620 | 33.9 | 0 | 0.00 | 82% |
APC SF 9x4.7 | 1 | 10.9 | 9.5 | 103 | 8070 | 35.9 | 695 | 24.52 | 80% |
APC SF 9x4.7 | 1 | 10.9 | 9.8 | 106 | 8190 | 36.5 | 677 | 23.88 | 82% |
APC SF 9x4.7 | 1 | 11 | 9.9 | 108 | 8190 | 36.5 | 0 | 0.00 | 81% |
GWS RS 9x4.7 | 1 | 6.9 | 5.55 | 38 | 5430 | 24.2 | 339 | 11.96 | 86% |
GWS RS 9x4.7 | 1 | 7.9 | 6.5 | 51 | 6090 | 27.1 | 432 | 15.24 | 84% |
GWS RS 9x4.7 | 1 | 8.9 | 7.65 | 68 | 6720 | 29.9 | 522 | 18.41 | 82% |
GWS RS 9x4.7 | 1 | 9.9 | 8.85 | 87 | 7350 | 32.7 | 619 | 21.83 | 81% |
GWS RS 9x4.7 | 1 | 10.9 | 10.05 | 109 | 7920 | 35.2 | 705 | 24.87 | 79% |
GWS HD 9x5 | 1 | 6.9 | 4.5 | 31 | 5580 | 26.4 | 307 | 10.83 | 88% |
GWS HD 9x5 | 1 | 7 | 4.45 | 31 | 5640 | 26.7 | 307 | 10.83 | 88% |
GWS HD 9x5 | 1 | 7 | 5 | 35 | 5850 | 27.7 | 330 | 11.64 | 91% |
GWS HD 9x5 | 1 | 7.9 | 5.5 | 43 | 6300 | 29.8 | 390 | 13.76 | 87% |
GWS HD 9x5 | 1 | 7.9 | 6.1 | 48 | 6510 | 30.8 | 416 | 14.67 | 90% |
Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
GWS HD 9x5 | 1 | 7.9 | 5.55 | 43 | 6240 | 29.6 | 395 | 13.93 | 86% |
GWS HD 9x5 | 1 | 8.9 | 6.65 | 59 | 6960 | 33.0 | 482 | 17.00 | 85% |
GWS HD 9x5 | 1 | 8.9 | 7.2 | 64 | 7170 | 34.0 | 500 | 17.64 | 88% |
GWS HD 9x5 | 1 | 8.9 | 6.5 | 57 | 6900 | 32.7 | 476 | 16.79 | 84% |
GWS HD 9x5 | 1 | 9.9 | 8.45 | 83 | 7800 | 36.9 | 593 | 20.92 | 86% |
GWS HD 9x5 | 1 | 9.9 | 7.7 | 76 | 7560 | 35.8 | 573 | 20.21 | 83% |
GWS HD 9x5 | 1 | 9.9 | 7.8 | 77 | 7560 | 35.8 | 577 | 20.35 | 83% |
GWS HD 9x5 | 1 | 10.9 | 9.75 | 106 | 8400 | 39.8 | 700 | 24.69 | 84% |
GWS HD 9x5 | 1 | 10.9 | 8.9 | 97 | 8100 | 38.4 | 675 | 23.81 | 81% |
GWS HD 9x5 | 1 | 10.9 | 9.1 | 99 | 8160 | 38.6 | 677 | 23.88 | 81% |
Ikarus 9x5 | 1 | 6.9 | 6.9 | 47 | 5190 | 24.6 | 391 | 13.79 | 82% |
Ikarus 9x5 | 1 | 7.9 | 8.3 | 65 | 5730 | 27.1 | 484 | 17.07 | 79% |
Ikarus 9x5 | 1 | 8.9 | 9.8 | 87 | 6300 | 29.8 | 578 | 20.39 | 77% |
Ikarus 9x5 | 1 | 9.9 | 11.3 | 111 | 6840 | 32.4 | 675 | 23.81 | 75% |
Ikarus 9x5 | 1 | 10.9 | 12.85 | 140 | 7320 | 34.7 | 770 | 27.16 | 73% |
Graupner SF 9x5 | 1 | 6.9 | 6.2 | 42 | 5310 | 25.1 | 376 | 13.26 | 84% |
Graupner SF 9x5 | 1 | 7.9 | 7.5 | 59 | 5910 | 28.0 | 470 | 16.58 | 81% |
Graupner SF 9x5 | 1 | 8.9 | 8.95 | 79 | 6480 | 30.7 | 570 | 20.11 | 79% |
Graupner SF 9x5 | 1 | 9.9 | 10.4 | 102 | 7050 | 33.4 | 678 | 23.92 | 77% |
Graupner SF 9x5 | 1 | 10.9 | 11.8 | 128 | 7560 | 35.8 | 770 | 27.16 | 75% |
Graupner CAM SLIM 9x5 | 1 | 6.9 | 4.5 | 31 | 5610 | 26.6 | 279 | 9.84 | 88% |
Graupner CAM SLIM 9x5 | 1 | 7.9 | 5.5 | 43 | 6300 | 29.8 | 353 | 12.45 | 87% |
Graupner CAM SLIM 9x5 | 1 | 8.9 | 6.6 | 58 | 6930 | 32.8 | 435 | 15.34 | 85% |
Graupner CAM SLIM 9x5 | 1 | 9.9 | 7.85 | 77 | 7560 | 35.8 | 527 | 18.59 | 83% |
Graupner CAM SLIM 9x5 | 1 | 10.9 | 9 | 98 | 8190 | 38.8 | 612 | 21.59 | 82% |
APC E 9x6 | 1 | 6.7 | 5.7 | 38 | 5220 | 29.7 | 0 | 0.00 | 85% |
APC E 9x6 | 1 | 6.9 | 5.85 | 40 | 5490 | 31.2 | 312 | 11.01 | 86% |
APC E 9x6 | 1 | 7.7 | 7 | 53 | 5835 | 33.1 | 0 | 0.00 | 82% |
APC E 9x6 | 1 | 7.9 | 7.05 | 55 | 6090 | 34.6 | 400 | 14.11 | 84% |
APC E 9x6 | 1 | 8.8 | 8.5 | 74 | 6570 | 37.3 | 0 | 0.00 | 81% |
Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
APC E 9x6 | 1 | 8.9 | 8.4 | 74 | 6720 | 38.2 | 491 | 17.32 | 82% |
APC E 9x6 | 1 | 9.9 | 9.7 | 96 | 7290 | 41.4 | 574 | 20.25 | 80% |
APC E 9x6 | 1 | 9.9 | 10.1 | 99 | 7170 | 40.7 | 0 | 0.00 | 79% |
APC E 9x6 | 1 | 10.1 | 10.4 | 105 | 7320 | 41.6 | 0 | 0.00 | 79% |
APC E 9x6 | 1 | 10.9 | 11.2 | 122 | 7860 | 44.7 | 678 | 23.92 | 78% |
APC E 9x6 | 1 | 11 | 11.5 | 126 | 7800 | 44.3 | 0 | 0.00 | 77% |
MA Electric-only 9x6 | 1 | 6.9 | 6.8 | 46 | 5190 | 29.5 | 304 | 10.72 | 82% |
MA Electric-only 9x6 | 1 | 7.9 | 8.25 | 65 | 5760 | 32.7 | 385 | 13.58 | 79% |
MA Electric-only 9x6 | 1 | 8.9 | 9.65 | 85 | 6300 | 35.8 | 466 | 16.44 | 77% |
MA Electric-only 9x6 | 1 | 9.9 | 11.25 | 111 | 6870 | 39.0 | 560 | 19.75 | 75% |
CAM Folder 9x6 | 1 | 6.9 | 5.8 | 40 | 5400 | 30.7 | 268 | 9.45 | 85% |
CAM Folder 9x6 | 1 | 7.9 | 6.95 | 54 | 6030 | 34.3 | 343 | 12.10 | 83% |
CAM Folder 9x6 | 1 | 8.9 | 8.1 | 72 | 6660 | 37.8 | 424 | 14.96 | 81% |
CAM Folder 9x6 | 1 | 9.9 | 9.15 | 90 | 7320 | 41.6 | 520 | 18.34 | 80% |
CAM Folder 9x6 | 1 | 10.9 | 10.2 | 111 | 7950 | 45.2 | 610 | 21.52 | 79% |
Graupner CAM 10x4 | 1 | 6.9 | 4.5 | 31 | 5640 | 21.4 | 287 | 10.12 | 89% |
Graupner CAM 10x4 | 1 | 7.9 | 5.5 | 43 | 6300 | 23.9 | 370 | 13.05 | 87% |
Graupner CAM 10x4 | 1 | 8.9 | 6.5 | 57 | 6990 | 26.5 | 460 | 16.23 | 85% |
Graupner CAM 10x4 | 1 | 9.9 | 7.6 | 75 | 7650 | 29.0 | 560 | 19.75 | 84% |
Graupner CAM 10x4 | 1 | 10.9 | 8.75 | 95 | 8250 | 31.2 | 659 | 23.25 | 82% |
APC SF 10x4.7 | 1 | 6.7 | 7.5 | 50 | 4920 | 21.9 | 0 | 0.00 | 80% |
APC SF 10x4.7 | 1 | 6.9 | 7.8 | 53 | 5070 | 22.6 | 457 | 16.12 | 80% |
APC SF 10x4.7 | 1 | 6.9 | 7.7 | 53 | 5040 | 22.4 | 470 | 16.58 | 79% |
APC SF 10x4.7 | 1 | 7.7 | 9.2 | 70 | 5460 | 24.3 | 0 | 0.00 | 77% |
APC SF 10x4.7 | 1 | 7.9 | 9.55 | 75 | 5580 | 24.8 | 566 | 19.97 | 77% |
APC SF 10x4.7 | 1 | 7.9 | 9.4 | 74 | 5550 | 24.7 | 579 | 20.42 | 76% |
APC SF 10x4.7 | 1 | 8.8 | 11.2 | 98 | 5955 | 26.5 | 0 | 0.00 | 74% |
APC SF 10x4.7 | 1 | 8.9 | 11.35 | 101 | 6090 | 27.1 | 672 | 23.70 | 74% |
APC SF 10x4.7 | 1 | 8.9 | 11.2 | 99 | 6060 | 27.0 | 701 | 24.73 | 74% |
APC SF 10x4.7 | 1 | 9.9 | 13.2 | 130 | 6540 | 29.1 | 790 | 27.87 | 72% |
Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
APC SF 10x4.7 | 1 | 9.9 | 13 | 128 | 6480 | 28.8 | 810 | 28.57 | 71% |
APC SF 10x4.7 | 1 | 9.9 | 13.5 | 133 | 6510 | 29.0 | 0 | 0.00 | 71% |
APC SF 10x4.7 | 1 | 10.1 | 13.8 | 139 | 6585 | 29.3 | 0 | 0.00 | 71% |
APC SF 10x4.7 | 1 | 10.9 | 14.9 | 162 | 6930 | 30.8 | 925 | 32.63 | 69% |
APC SF 10x4.7 | 1 | 10.9 | 15 | 163 | 6900 | 30.7 | 895 | 31.57 | 69% |
APC SF 10x4.7 | 1 | 11 | 15.8 | 173 | 6990 | 31.1 | 0 | 0.00 | 69% |
GWS RS 10x4.7 | 1 | 6.9 | 7.8 | 53 | 4980 | 22.2 | 473 | 16.68 | 78% |
GWS RS 10x4.7 | 1 | 7.9 | 9.6 | 75 | 5400 | 24.0 | 570 | 20.11 | 74% |
GWS RS 10x4.7 | 1 | 8.9 | 11.2 | 99 | 6000 | 26.7 | 697 | 24.59 | 73% |
GWS RS 10x4.7 | 1 | 9.9 | 13.1 | 129 | 6480 | 28.8 | 822 | 29.00 | 71% |
GWS RS 10x4.7 | 1 | 10.9 | 14.8 | 161 | 6870 | 30.6 | 940 | 33.16 | 69% |
APC E 10x5 | 1 | 6.7 | 5.7 | 38 | 5190 | 24.6 | 0 | 0.00 | 84% |
APC E 10x5 | 1 | 6.9 | 6 | 41 | 5310 | 25.1 | 384 | 13.55 | 84% |
APC E 10x5 | 1 | 7 | 6.25 | 43 | 5400 | 25.6 | 381 | 13.44 | 84% |
APC E 10x5 | 1 | 7.7 | 7.3 | 56 | 5820 | 27.6 | 0 | 0.00 | 82% |
APC E 10x5 | 1 | 7.9 | 7.4 | 58 | 5940 | 28.1 | 490 | 17.28 | 82% |
APC E 10x5 | 1 | 7.9 | 7.6 | 60 | 6030 | 28.6 | 477 | 16.83 | 83% |
APC E 10x5 | 1 | 8.8 | 8.8 | 77 | 6480 | 30.7 | 0 | 0.00 | 80% |
APC E 10x5 | 1 | 8.9 | 8.8 | 78 | 6480 | 30.7 | 592 | 20.88 | 79% |
APC E 10x5 | 1 | 8.9 | 9.05 | 80 | 6570 | 31.1 | 579 | 20.42 | 80% |
APC E 10x5 | 1 | 9.9 | 10.25 | 101 | 7020 | 33.2 | 700 | 24.69 | 77% |
APC E 10x5 | 1 | 9.9 | 10.5 | 103 | 7050 | 33.4 | 0 | 0.00 | 77% |
APC E 10x5 | 1 | 9.9 | 10.6 | 104 | 7170 | 34.0 | 683 | 24.09 | 79% |
APC E 10x5 | 1 | 10.1 | 10.9 | 110 | 7200 | 34.1 | 0 | 0.00 | 77% |
APC E 10x5 | 1 | 10.8 | 12.5 | 135 | 7560 | 35.8 | 803 | 28.32 | 76% |
APC E 10x5 | 1 | 10.9 | 12.2 | 132 | 7650 | 36.2 | 794 | 28.01 | 76% |
APC E 10x5 | 1 | 10.9 | 11.9 | 129 | 7560 | 35.8 | 823 | 29.03 | 75% |
APC E 10x5 | 1 | 11 | 12.3 | 135 | 7635 | 36.1 | 0 | 0.00 | 75% |
Graupner SF 10x5 | 1 | 6.9 | 7.8 | 53 | 4980 | 23.6 | 469 | 16.54 | 78% |
Graupner SF 10x5 | 1 | 7.9 | 9.45 | 74 | 5520 | 26.1 | 576 | 20.32 | 76% |
Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
Graupner SF 10x5 | 1 | 8.9 | 11.75 | 104 | 6060 | 28.7 | 695 | 24.52 | 74% |
Graupner SF 10x5 | 1 | 9.9 | 12.8 | 126 | 6540 | 31.0 | 812 | 28.64 | 72% |
Graupner SF 10x5 | 1 | 10.9 | 14.6 | 159 | 7020 | 33.2 | 930 | 32.80 | 70% |
GWS HD 10x6 | 1 | 6.9 | 6.05 | 41 | 5310 | 30.2 | 388 | 13.69 | 84% |
GWS HD 10x6 | 1 | 6.9 | 6.1 | 42 | 5310 | 30.2 | 395 | 13.93 | 84% |
GWS HD 10x6 | 1 | 6.9 | 6.2 | 42 | 5370 | 30.5 | 382 | 13.47 | 85% |
GWS HD 10x6 | 1 | 7 | 6.7 | 46 | 5520 | 31.4 | 411 | 14.50 | 86% |
GWS HD 10x6 | 1 | 7.9 | 8.5 | 67 | 6060 | 34.4 | 508 | 17.92 | 83% |
GWS HD 10x6 | 1 | 7.9 | 7.35 | 58 | 5910 | 33.6 | 483 | 17.04 | 81% |
GWS HD 10x6 | 1 | 7.9 | 7.45 | 58 | 5910 | 33.6 | 487 | 17.18 | 81% |
GWS HD 10x6 | 1 | 7.9 | 7.6 | 60 | 6000 | 34.1 | 477 | 16.83 | 83% |
GWS HD 10x6 | 1 | 8.9 | 9.1 | 80 | 6600 | 37.5 | 578 | 20.39 | 81% |
GWS HD 10x6 | 1 | 8.9 | 9.6 | 85 | 6660 | 37.8 | 616 | 21.73 | 81% |
GWS HD 10x6 | 1 | 8.9 | 8.75 | 77 | 6480 | 36.8 | 586 | 20.67 | 79% |
GWS HD 10x6 | 1 | 8.9 | 8.85 | 78 | 6480 | 36.8 | 590 | 20.81 | 79% |
GWS HD 10x6 | 1 | 9.9 | 10.4 | 102 | 7050 | 40.1 | 695 | 24.52 | 77% |
GWS HD 10x6 | 1 | 9.9 | 10.6 | 104 | 7140 | 40.6 | 677 | 23.88 | 78% |
GWS HD 10x6 | 1 | 9.9 | 11 | 108 | 7230 | 41.1 | 715 | 25.22 | 79% |
GWS HD 10x6 | 1 | 9.9 | 10.25 | 101 | 7020 | 39.9 | 693 | 24.44 | 77% |
GWS HD 10x6 | 1 | 10.8 | 11.6 | 125 | 7500 | 42.6 | 790 | 27.87 | 75% |
GWS HD 10x6 | 1 | 10.9 | 12 | 130 | 7650 | 43.5 | 779 | 27.48 | 76% |
GWS HD 10x6 | 1 | 10.9 | 12.6 | 137 | 7740 | 44.0 | 828 | 29.21 | 77% |
GWS HD 10x6 | 1 | 10.9 | 11.8 | 128 | 7530 | 42.8 | 800 | 28.22 | 75% |
GWS HD 10x6 | 1 | 10.9 | 11.8 | 128 | 7530 | 42.8 | 809 | 28.54 | 75% |
APC SF 11x4.7 | 1 | 6.7 | 9 | 60 | 4650 | 20.7 | 0 | 0.00 | 75% |
APC SF 11x4.7 | 1 | 7.7 | 11 | 84 | 5100 | 22.7 | 0 | 0.00 | 72% |
APC SF 11x4.7 | 1 | 8.8 | 13.2 | 116 | 5580 | 24.8 | 0 | 0.00 | 69% |
APC SF 11x4.7 | 1 | 9.9 | 15.7 | 155 | 6000 | 26.7 | 0 | 0.00 | 66% |
APC SF 11x4.7 | 1 | 10.1 | 15.9 | 160 | 6060 | 27.0 | 0 | 0.00 | 65% |
APC SF 11x4.7 | 1 | 11 | 17.5 | 192 | 6330 | 28.2 | 0 | 0.00 | 63% |
Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
APC E 11x5.5 | 1 | 6.7 | 7.2 | 48 | 4890 | 25.5 | 0 | 0.00 | 79% |
APC E 11x5.5 | 1 | 6.9 | 7.8 | 53 | 5100 | 26.6 | 470 | 16.58 | 80% |
APC E 11x5.5 | 1 | 7.7 | 9.1 | 70 | 5445 | 28.4 | 0 | 0.00 | 77% |
APC E 11x5.5 | 1 | 7.9 | 9.45 | 74 | 5640 | 29.4 | 579 | 20.42 | 78% |
APC E 11x5.5 | 1 | 8.8 | 11 | 96 | 6060 | 31.6 | 0 | 0.00 | 75% |
APC E 11x5.5 | 1 | 8.9 | 11.1 | 98 | 6090 | 31.7 | 688 | 24.27 | 74% |
APC E 11x5.5 | 1 | 9.9 | 12.9 | 127 | 6540 | 34.1 | 0 | 0.00 | 72% |
APC E 11x5.5 | 1 | 9.9 | 13 | 128 | 6570 | 34.2 | 800 | 28.22 | 72% |
APC E 11x5.5 | 1 | 10.1 | 13.3 | 134 | 6630 | 34.5 | 0 | 0.00 | 71% |
APC E 11x5.5 | 1 | 10.9 | 14.8 | 161 | 6990 | 36.4 | 922 | 32.52 | 70% |
APC E 11x5.5 | 1 | 11 | 14.9 | 163 | 7050 | 36.7 | 0 | 0.00 | 70% |
GWS HD 11x7 | 1 | 6.9 | 9.45 | 65 | 4890 | 32.4 | 527 | 18.59 | 77% |
GWS HD 11x7 | 1 | 6.9 | 8.9 | 61 | 4860 | 32.2 | 514 | 18.13 | 77% |
GWS HD 11x7 | 1 | 7.9 | 10.7 | 84 | 5370 | 35.6 | 619 | 21.83 | 74% |
GWS HD 11x7 | 1 | 7.9 | 11.3 | 89 | 5400 | 35.8 | 643 | 22.68 | 74% |
GWS HD 11x7 | 1 | 8.9 | 12.5 | 111 | 5820 | 38.6 | 734 | 25.89 | 71% |
GWS HD 11x7 | 1 | 8.9 | 13.25 | 117 | 5850 | 38.8 | 760 | 26.81 | 71% |
GWS HD 11x7 | 1 | 9.9 | 15 | 148 | 6240 | 41.4 | 875 | 30.86 | 69% |
GWS HD 11x7 | 1 | 9.9 | 14.55 | 144 | 6240 | 41.4 | 858 | 30.27 | 69% |
GWS HD 11x7 | 1 | 10.9 | 16.2 | 176 | 6600 | 43.8 | 956 | 33.72 | 66% |
GWS HD 11x7 | 1 | 10.9 | 16.8 | 183 | 6600 | 43.8 | 979 | 34.53 | 66% |
