ARC - 2814-1310
Specifications
- Type: Outrunner
- Weight: 99.00g (3.49oz)
- Diameter: 34.60mm (1.36in)
- Length: 35.60mm (1.40in)
- Shaft Diameter: 5.00mm (0.20in)
- Maximum Amps: 30

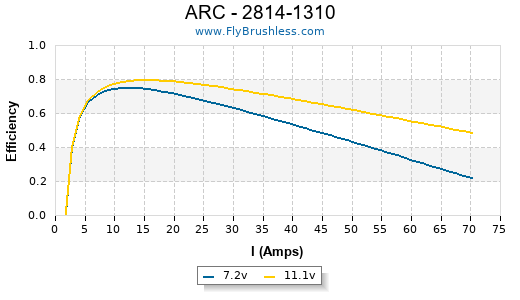

Constants
- kV: 1325
- Rm: 0.08
- Io: 1.65
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 1.4 | 9180 |
| 8 | 1.45 | 10500 |
| 10 | 1.65 | 13066 |
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| APC E 9x4.5 | 1 | 7.8 | 16.25 | 126 | 8850 | 37.7 | 759 | 26.77 | 86% |
| APC E 9x4.5 | 1 | 8.7 | 19.5 | 169 | 9750 | 41.5 | 927 | 32.70 | 85% |
| APC E 9x4.5 | 1 | 9.4 | 22 | 206 | 10320 | 44.0 | 1054 | 37.18 | 83% |
| APC E 9x4.5 | 1 | 11.1 | 29.2 | 324 | 11640 | 49.6 | 1390 | 49.03 | 79% |
| APC E 10x5 | 1 | 7.4 | 19.9 | 147 | 8010 | 37.9 | 891 | 31.43 | 82% |
| APC E 10x5 | 1 | 10.8 | 35.3 | 381 | 10590 | 50.1 | 1619 | 57.11 | 74% |
