ARC - 2814-980
Specifications
- Type: Outrunner
- Weight: 98.00g (3.46oz)
- Diameter: 34.60mm (1.36in)
- Length: 35.60mm (1.40in)
- Shaft Diameter: 5.00mm (0.20in)
- Maximum Amps: 30
Constants
- kV: 995
- Rm: 0.1
- Io: 1
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 0.9 | 6912 |
| 8 | 0.95 | 7900 |
| 10 | 1 | 9850 |

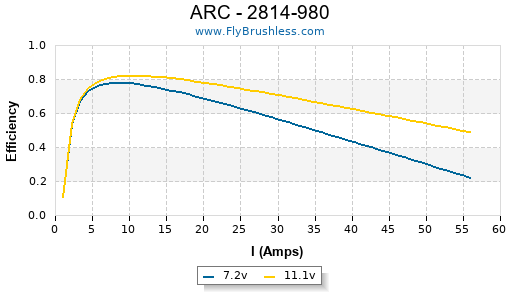

Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| APC E 10x7 | 1 | 6.9 | 11.35 | 78 | 5880 | 39.0 | 527 | 18.59 | 86% |
| APC E 10x7 | 1 | 7.8 | 13.8 | 107 | 6570 | 43.5 | 657 | 23.17 | 85% |
| APC E 10x7 | 1 | 8.8 | 16.6 | 146 | 7260 | 48.1 | 805 | 28.40 | 83% |
| APC E 10x7 | 1 | 9.8 | 19.1 | 187 | 7890 | 52.3 | 953 | 33.62 | 81% |
| APC E 10x7 | 1 | 10.7 | 22 | 235 | 8490 | 56.3 | 1100 | 38.80 | 80% |
| APC E 11x7 | 1 | 7.8 | 17.15 | 133 | 6210 | 41.2 | 820 | 28.92 | 80% |
| APC E 11x7 | 1 | 8.7 | 20.4 | 177 | 6750 | 44.7 | 973 | 34.32 | 78% |
| APC E 11x7 | 1 | 11.1 | 28.55 | 316 | 7890 | 52.3 | 1354 | 47.76 | 71% |
