GPS - HXT C2230-15
Specifications
- Type: Outrunner
- Weight: 33.00g (1.16oz)
- Maximum Amps: 15

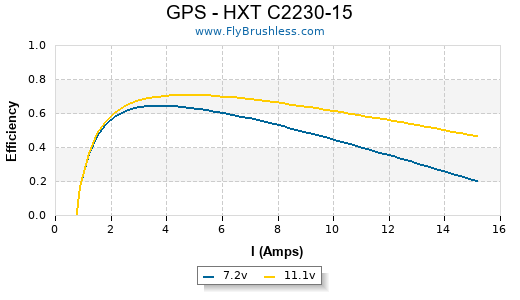

Constants
- kV: 1660
- Rm: 0.375
- Io: 0.75
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 0.65 | 11250 |
| 8 | 0.65 | 12900 |
| 10 | 0.75 | 16100 |
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| GWS HD 5x3 | 1 | 7 | 2 | 14 | 10560 | 30.0 | 98 | 3.46 | 91% |
| GWS HD 5x3 | 1 | 7.4 | 2.15 | 15 | 11100 | 31.5 | 108 | 3.81 | 90% |
| GWS HD 5x3 | 1 | 8 | 2.4 | 19 | 11880 | 33.8 | 124 | 4.37 | 89% |
| GWS HD 5x3 | 1 | 9 | 2.85 | 25 | 13260 | 37.7 | 155 | 5.47 | 89% |
| GWS HD 5x3 | 1 | 10 | 3.25 | 32 | 14490 | 41.2 | 185 | 6.53 | 87% |
| GWS HD 5x3 | 1 | 10.9 | 3.65 | 39 | 15720 | 44.7 | 220 | 7.76 | 87% |
| Graupner CAM 5x4 | 1 | 6.9 | 4.2 | 28 | 9240 | 35.0 | 158 | 5.57 | 81% |
| Graupner CAM 5x4 | 1 | 7.4 | 4.6 | 34 | 9750 | 36.9 | 175 | 6.17 | 79% |
| Graupner CAM 5x4 | 1 | 7.9 | 5.05 | 39 | 10260 | 38.9 | 197 | 6.95 | 78% |
| Graupner CAM 5x4 | 1 | 8.9 | 5.95 | 52 | 11220 | 42.5 | 234 | 8.25 | 76% |
| Graupner CAM 5x4 | 1 | 9.9 | 6.9 | 68 | 12150 | 46.0 | 277 | 9.77 | 74% |
| Graupner CAM 5x4 | 1 | 10.9 | 7.8 | 85 | 12960 | 49.1 | 316 | 11.15 | 72% |
| GWS HD 5x4.3 | 1 | 6.9 | 3.3 | 22 | 9720 | 39.6 | 119 | 4.20 | 85% |
| GWS HD 5x4.3 | 1 | 7.4 | 3.65 | 27 | 10260 | 41.8 | 132 | 4.66 | 84% |
| GWS HD 5x4.3 | 1 | 7.9 | 4 | 31 | 10920 | 44.5 | 149 | 5.26 | 83% |
| GWS HD 5x4.3 | 1 | 8.9 | 4.75 | 42 | 11940 | 48.6 | 186 | 6.56 | 81% |
| GWS HD 5x4.3 | 1 | 9.9 | 5.15 | 50 | 13230 | 53.9 | 221 | 7.80 | 81% |
| GWS HD 5x4.3 | 1 | 10.9 | 5.8 | 63 | 14310 | 58.3 | 258 | 9.10 | 79% |
| GWS HD 6x3 | 1 | 6.9 | 2.9 | 20 | 9990 | 28.4 | 150 | 5.29 | 87% |
| GWS HD 6x3 | 1 | 7.4 | 3.15 | 23 | 10560 | 30.0 | 172 | 6.07 | 86% |
| GWS HD 6x3 | 1 | 8 | 3.45 | 27 | 11220 | 31.9 | 192 | 6.77 | 84% |
| GWS HD 6x3 | 1 | 8.9 | 4.1 | 36 | 12330 | 35.0 | 235 | 8.29 | 83% |
| GWS HD 6x3 | 1 | 9.9 | 4.75 | 47 | 13470 | 38.3 | 286 | 10.09 | 82% |
| GWS HD 6x3 | 1 | 10.9 | 5.45 | 59 | 14520 | 41.2 | 337 | 11.89 | 80% |
| GWS RS 6x5 | 1 | 6.9 | 5.65 | 38 | 8400 | 39.8 | 199 | 7.02 | 73% |
| GWS RS 6x5 | 1 | 7.4 | 6.15 | 45 | 8820 | 41.8 | 218 | 7.69 | 72% |
| GWS RS 6x5 | 1 | 7.9 | 6.8 | 53 | 9180 | 43.5 | 244 | 8.61 | 70% |
| GWS RS 6x5 | 1 | 8.9 | 8.1 | 72 | 9840 | 46.6 | 288 | 10.16 | 67% |
| GWS RS 6x5 | 1 | 9.9 | 9.4 | 93 | 10410 | 49.3 | 322 | 11.36 | 63% |
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
| GWS RS 6x5 | 1 | 10.9 | 10.7 | 116 | 10860 | 51.4 | 354 | 12.49 | 60% |
| GWS HD 7x3.5 | 1 | 7 | 3.95 | 27 | 9420 | 31.2 | 204 | 7.20 | 81% |
| GWS HD 7x3.5 | 1 | 7.4 | 4.25 | 31 | 9870 | 32.7 | 226 | 7.97 | 80% |
| GWS HD 7x3.5 | 1 | 7.9 | 4.7 | 37 | 10500 | 34.8 | 259 | 9.14 | 80% |
| GWS HD 7x3.5 | 1 | 8.9 | 5.55 | 49 | 11520 | 38.2 | 318 | 11.22 | 78% |
| GWS HD 7x3.5 | 1 | 9.9 | 6.4 | 63 | 12420 | 41.2 | 376 | 13.26 | 76% |
| GWS HD 7x3.5 | 1 | 10.9 | 7.35 | 80 | 13350 | 44.2 | 441 | 15.56 | 74% |
| APC SF 7x4 | 1 | 6.9 | 6.1 | 42 | 8160 | 30.9 | 270 | 9.52 | 71% |
| APC SF 7x4 | 1 | 7.4 | 6.7 | 49 | 8520 | 32.3 | 297 | 10.48 | 69% |
| APC SF 7x4 | 1 | 7.9 | 7.3 | 57 | 8850 | 33.5 | 325 | 11.46 | 67% |
| APC SF 7x4 | 1 | 8.9 | 8.5 | 75 | 9540 | 36.1 | 382 | 13.47 | 65% |
| APC SF 7x4 | 1 | 9.9 | 9.75 | 96 | 10080 | 38.2 | 432 | 15.24 | 61% |
| APC SF 7x4 | 1 | 10.9 | 10.8 | 117 | 10500 | 39.8 | 473 | 16.68 | 58% |
| GWS HD 8x4 | 1 | 7 | 6.7 | 46 | 7740 | 29.3 | 320 | 11.29 | 67% |
| GWS HD 8x4 | 1 | 7.4 | 7.25 | 53 | 8100 | 30.7 | 345 | 12.17 | 66% |
| GWS RS 8x4.3 | 1 | 6.9 | 8.05 | 55 | 7020 | 28.6 | 339 | 11.96 | 61% |
