ELE - 460FX
Specifications
- Type: Outrunner
- Weight: 60.00g (2.12oz)
- Maximum Amps: 25
Constants
- kV: 2950
- Rm: 0
- Io: 0
Test Data

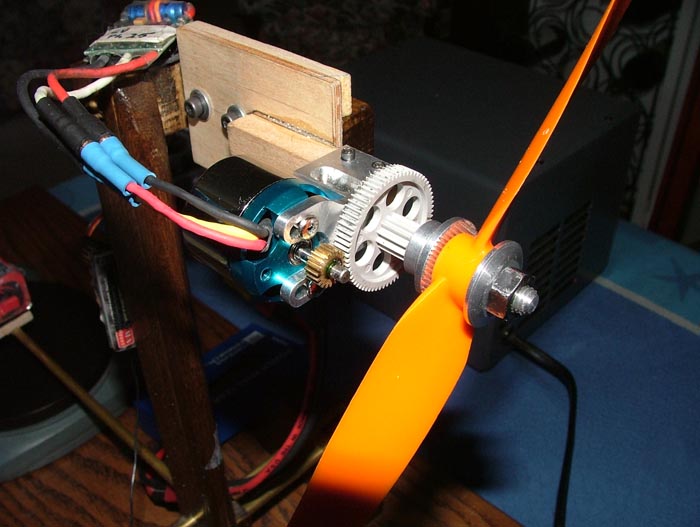

Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| APC E 4.1x4.1 | 1 | 6.9 | 9.55 | 65 | 19110 | 74.2 | 218 | 7.69 | 94% |
| APC E 4.1x4.1 | 1 | 7.9 | 11.95 | 94 | 21390 | 83.0 | 274 | 9.67 | 92% |
| APC E 4.1x4.1 | 1 | 8.8 | 14.65 | 128 | 23640 | 91.8 | 338 | 11.92 | 91% |
| APC E 4.1x4.1 | 1 | 9.8 | 17.7 | 173 | 25840 | 100.3 | 407 | 14.36 | 89% |
| APC E 8x8 | 3.5 | 6.9 | 7.9 | 54 | 5550 | 42.0 | 256 | 9.03 | 95% |
| APC E 8x8 | 3.5 | 7.9 | 9.8 | 77 | 6270 | 47.5 | 331 | 11.68 | 94% |
| APC E 8x8 | 3.5 | 8.9 | 11.8 | 105 | 6960 | 52.7 | 415 | 14.64 | 93% |
| APC E 8x8 | 3.5 | 9.9 | 14 | 138 | 7650 | 58.0 | 504 | 17.78 | 92% |
| APC E 8x8 | 3.5 | 10.9 | 16.6 | 180 | 8280 | 62.7 | 596 | 21.02 | 90% |
| GWS HD 9x5 | 3.5 | 6.9 | 5.8 | 40 | 5700 | 27.0 | 324 | 11.43 | 98% |
| GWS HD 9x5 | 3.167 | 6.9 | 7.6 | 52 | 6180 | 29.3 | 382 | 13.47 | 96% |
| GWS HD 9x5 | 3.5 | 7.9 | 7.1 | 56 | 6480 | 30.7 | 419 | 14.78 | 97% |
| GWS HD 9x5 | 3.167 | 7.9 | 9.4 | 74 | 6930 | 32.8 | 490 | 17.28 | 94% |
| GWS HD 9x5 | 3.167 | 8.9 | 11.55 | 102 | 7710 | 36.5 | 612 | 21.59 | 93% |
| GWS HD 9x5 | 3.5 | 8.9 | 8.7 | 77 | 7230 | 34.2 | 530 | 18.70 | 96% |
| GWS HD 9x5 | 3.5 | 9.9 | 10.25 | 101 | 7920 | 37.5 | 643 | 22.68 | 95% |
| GWS HD 9x5 | 3.167 | 9.9 | 13.75 | 136 | 8490 | 40.2 | 737 | 26.00 | 92% |
| GWS HD 9x5 | 3.5 | 10.9 | 12.2 | 132 | 8640 | 40.9 | 771 | 27.20 | 94% |
| GWS HD 9x5 | 3.167 | 10.9 | 16.4 | 178 | 9210 | 43.6 | 880 | 31.04 | 91% |
| APC E 9x9 | 3.167 | 6.8 | 14.4 | 97 | 5610 | 47.8 | 415 | 14.64 | 89% |
| APC E 9x9 | 3.5 | 6.9 | 11.3 | 77 | 5370 | 45.8 | 365 | 12.87 | 92% |
| APC E 9x9 | 3.167 | 7.8 | 17.6 | 137 | 6270 | 53.4 | 512 | 18.06 | 86% |
| APC E 9x9 | 3.5 | 7.9 | 13.9 | 109 | 5940 | 50.6 | 459 | 16.19 | 89% |
| APC E 9x9 | 3.5 | 8.9 | 16.5 | 146 | 6600 | 56.2 | 569 | 20.07 | 88% |
| APC E 9x9 | 3.5 | 9.9 | 19.4 | 192 | 7260 | 61.9 | 697 | 24.59 | 87% |
| GWS HD 10x6 | 3.5 | 6.9 | 7.8 | 53 | 5580 | 31.7 | 432 | 15.24 | 96% |
| GWS HD 10x6 | 3.167 | 6.9 | 10.4 | 71 | 5940 | 33.8 | 502 | 17.71 | 92% |
| GWS HD 10x6 | 3.167 | 7.9 | 13.15 | 103 | 6720 | 38.2 | 640 | 22.58 | 91% |
| GWS HD 10x6 | 3.5 | 7.9 | 9.7 | 76 | 6300 | 35.8 | 552 | 19.47 | 95% |
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
| GWS HD 10x6 | 3.5 | 8.9 | 11.7 | 104 | 6930 | 39.4 | 674 | 23.77 | 92% |
| GWS HD 10x6 | 3.167 | 8.9 | 15.75 | 140 | 7350 | 41.8 | 776 | 27.37 | 89% |
| GWS HD 10x6 | 3.5 | 9.9 | 14.1 | 139 | 7680 | 43.6 | 825 | 29.10 | 92% |
| GWS HD 10x6 | 3.167 | 9.9 | 18.6 | 184 | 8070 | 45.9 | 935 | 32.98 | 88% |
| GWS HD 10x6 | 3.167 | 10.8 | 22.1 | 238 | 8700 | 49.4 | 1080 | 38.10 | 86% |
| GWS HD 10x6 | 3.5 | 10.9 | 16.6 | 180 | 8310 | 47.2 | 974 | 34.36 | 90% |
| GWS HD 11x7 | 3.167 | 6.8 | 14.9 | 101 | 5520 | 36.6 | 703 | 24.80 | 87% |
| GWS HD 11x7 | 3.5 | 6.9 | 11.55 | 79 | 5280 | 35.0 | 630 | 22.22 | 91% |
| GWS HD 11x7 | 3.167 | 7.7 | 18.1 | 139 | 6180 | 41.0 | 871 | 30.72 | 86% |
| GWS HD 11x7 | 3.5 | 7.9 | 14.3 | 112 | 5910 | 39.2 | 790 | 27.87 | 89% |
| GWS HD 11x7 | 3.5 | 8.9 | 17.25 | 153 | 6540 | 43.4 | 968 | 34.15 | 87% |
| GWS HD 11x7 | 3.5 | 9.9 | 20.5 | 202 | 7110 | 47.1 | 1150 | 40.57 | 85% |
| GWS HD 11x7 | 3.167 | 10.7 | 29.8 | 318 | 7650 | 50.7 | 1384 | 48.82 | 77% |
| GWS HD 11x7 | 3.5 | 10.9 | 24 | 261 | 7680 | 50.9 | 1343 | 47.37 | 84% |
