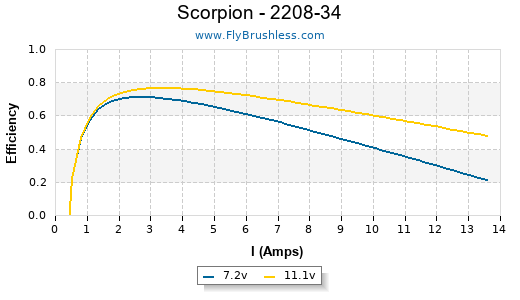

Scorpion - 2208-34
Specifications
- Type: Outrunner
- Weight: 40.00g (1.41oz)
- Diameter: 27.88mm (1.10in)
- Length: 20.55mm (0.81in)
- Shaft Diameter: 3.00mm (0.12in)
- Maximum Amps: 15
Constants
- kV: 1153
- Rm: 0.415
- Io: 0.42
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 10.015 | 0.42 | 11250 |
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| APC E 7x5 | 1 | 7 | 4 | 28 | 6870 | 32.5 | 206 | 7.27 | 85% |
| APC E 7x5 | 1 | 10.5 | 7.05 | 74 | 9390 | 44.5 | 402 | 14.18 | 78% |
| APC E 7x5 | 1 | 14 | 10.9 | 152 | 11550 | 54.7 | 620 | 21.87 | 72% |
| APC SF 7x6 | 1 | 6.9 | 4.65 | 32 | 6510 | 37.0 | 210 | 7.41 | 82% |
| APC SF 7x6 | 1 | 7.9 | 5.75 | 45 | 7200 | 40.9 | 261 | 9.21 | 79% |
| APC SF 7x6 | 1 | 8.9 | 6.9 | 61 | 7830 | 44.5 | 312 | 11.01 | 76% |
| APC SF 7x6 | 1 | 9.9 | 8.1 | 80 | 8430 | 47.9 | 367 | 12.95 | 74% |
| APC SF 7x6 | 1 | 10.9 | 9.2 | 100 | 8850 | 50.3 | 413 | 14.57 | 70% |
| GWS HD 8x4 | 1 | 6.9 | 4.1 | 28 | 6810 | 25.8 | 252 | 8.89 | 86% |
| GWS HD 8x4 | 1 | 7 | 3.4 | 23 | 6510 | 24.7 | 225 | 7.94 | 81% |
| GWS HD 8x4 | 1 | 7.9 | 4.2 | 33 | 7230 | 27.4 | 284 | 10.02 | 79% |
| GWS HD 8x4 | 1 | 7.9 | 5 | 39 | 7590 | 28.8 | 318 | 11.22 | 83% |
| GWS HD 8x4 | 1 | 8.9 | 5.9 | 52 | 8310 | 31.5 | 387 | 13.65 | 81% |
| GWS HD 8x4 | 1 | 8.9 | 5 | 44 | 7980 | 30.2 | 344 | 12.13 | 78% |
| GWS HD 8x4 | 1 | 9.9 | 5.85 | 57 | 8670 | 32.8 | 412 | 14.53 | 76% |
| GWS HD 8x4 | 1 | 9.9 | 6.85 | 67 | 9000 | 34.1 | 459 | 16.19 | 79% |
| GWS HD 8x4 | 1 | 10.9 | 6.8 | 74 | 9300 | 35.2 | 484 | 17.07 | 74% |
| GWS HD 8x4 | 1 | 10.9 | 7.85 | 85 | 9630 | 36.5 | 526 | 18.55 | 77% |
| GWS HD 9x5 | 1 | 6.9 | 6.25 | 43 | 5940 | 28.1 | 358 | 12.63 | 75% |
| GWS HD 9x5 | 1 | 6.9 | 5.35 | 36 | 5700 | 27.0 | 321 | 11.32 | 72% |
| GWS HD 9x5 | 1 | 7.9 | 6.4 | 50 | 6240 | 29.6 | 391 | 13.79 | 69% |
| GWS HD 9x5 | 1 | 7.9 | 7.5 | 59 | 6480 | 30.7 | 437 | 15.41 | 71% |
| GWS HD 9x5 | 1 | 8.9 | 7.5 | 66 | 6780 | 32.1 | 463 | 16.33 | 66% |
| GWS HD 9x5 | 1 | 8.9 | 8.7 | 77 | 6990 | 33.1 | 510 | 17.99 | 68% |
| GWS HD 9x5 | 1 | 9.9 | 9.8 | 97 | 7440 | 35.2 | 576 | 20.32 | 65% |
| GWS HD 9x5 | 1 | 9.9 | 8.65 | 85 | 7230 | 34.2 | 537 | 18.94 | 63% |
| GWS HD 9x5 | 1 | 10.9 | 9.7 | 105 | 7680 | 36.4 | 603 | 21.27 | 61% |
| GWS HD 10x6 | 1 | 6.9 | 6.65 | 45 | 5070 | 28.8 | 364 | 12.84 | 64% |
| GWS HD 10x6 | 1 | 7 | 7.7 | 53 | 5430 | 30.9 | 401 | 14.14 | 67% |
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
| GWS HD 10x6 | 1 | 7.9 | 7.9 | 62 | 5550 | 31.5 | 439 | 15.49 | 61% |
| GWS HD 10x6 | 1 | 8.9 | 9.1 | 80 | 5910 | 33.6 | 503 | 17.74 | 58% |
| GWS HD 10x6 | 1 | 9.9 | 10.3 | 101 | 6270 | 35.6 | 565 | 19.93 | 55% |
| GWS HD 10x6 | 1 | 10.5 | 11.7 | 122 | 6600 | 37.5 | 618 | 21.80 | 55% |
| GWS HD 10x6 | 1 | 10.9 | 11.5 | 125 | 6540 | 37.2 | 619 | 21.83 | 52% |
| GWS HD 11x7 | 1 | 7 | 9.2 | 64 | 4440 | 29.4 | 440 | 15.52 | 55% |
| GWS HD 11x7 | 1 | 10.5 | 12.7 | 133 | 5160 | 34.2 | 595 | 20.99 | 43% |
