Common Sense RC - E5-L-13
Specifications
- Type: Outrunner
- Weight: 58.00g (2.05oz)
- Diameter: 27.85mm (1.10in)
- Length: 31.80mm (1.25in)
- Shaft Diameter: 3.00mm (0.12in)
- Maximum Amps: 24

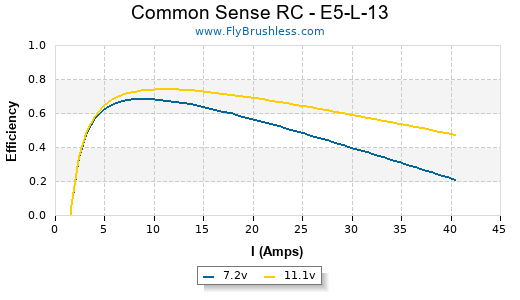

Constants
- kV: 1285
- Rm: 0.14
- Io: 1.55
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 1.2 | 8760 |
| 8 | 1.35 | 10080 |
| 10 | 1.55 | 12570 |
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| APC Sport 7x7 | 1 | 6.9 | 6.85 | 47 | 7770 | 51.5 | 225 | 7.94 | 88% |
| APC Sport 7x7 | 1 | 7.9 | 8.3 | 65 | 8700 | 57.7 | 322 | 11.36 | 86% |
| APC Sport 7x7 | 1 | 8.8 | 10.1 | 88 | 9660 | 64.0 | 402 | 14.18 | 85% |
| APC Sport 7x7 | 1 | 9.8 | 11.9 | 116 | 10560 | 70.0 | 483 | 17.04 | 84% |
| APC Sport 7x7 | 1 | 10.8 | 13.75 | 148 | 11430 | 75.8 | 564 | 19.89 | 82% |
| APC Sport 7x7 | 1 | 14 | 20.3 | 284 | 15270 | 101.2 | 846 | 29.84 | 85% |
| GWS HD 8x4 | 1 | 6.9 | 5.95 | 41 | 7890 | 29.9 | 326 | 11.50 | 89% |
| GWS HD 8x4 | 1 | 7.9 | 7.3 | 57 | 8880 | 33.6 | 413 | 14.57 | 87% |
| GWS HD 8x4 | 1 | 8.9 | 9 | 80 | 9900 | 37.5 | 522 | 18.41 | 87% |
| GWS HD 8x4 | 1 | 9.8 | 10.6 | 103 | 10800 | 40.9 | 628 | 22.15 | 86% |
| GWS HD 8x4 | 1 | 10.8 | 12.4 | 133 | 11700 | 44.3 | 747 | 26.35 | 84% |
| APC E 8x6 | 1 | 6.8 | 10.45 | 71 | 7080 | 40.2 | 379 | 13.37 | 81% |
| APC E 8x6 | 1 | 7.8 | 12.95 | 101 | 7830 | 44.5 | 474 | 16.72 | 78% |
| APC E 8x6 | 1 | 8.8 | 15.55 | 136 | 8550 | 48.6 | 565 | 19.93 | 76% |
| APC E 8x6 | 1 | 9.7 | 18.7 | 181 | 9240 | 52.5 | 660 | 23.28 | 74% |
| APC E 8x6 | 1 | 10.7 | 21.3 | 227 | 9780 | 55.6 | 750 | 26.46 | 71% |
| GWS HD 9x5 | 1 | 6.8 | 9.8 | 66 | 7230 | 34.2 | 505 | 17.81 | 83% |
| GWS HD 9x5 | 1 | 7.8 | 12.05 | 93 | 8040 | 38.1 | 633 | 22.33 | 80% |
| GWS HD 9x5 | 1 | 8.8 | 14.35 | 126 | 8790 | 41.6 | 762 | 26.88 | 78% |
| GWS HD 9x5 | 1 | 9.7 | 17.2 | 166 | 9540 | 45.2 | 917 | 32.35 | 77% |
| GWS HD 9x5 | 1 | 10.7 | 19.7 | 210 | 10200 | 48.3 | 1056 | 37.25 | 74% |
| APC E 10x5 | 1 | 6.8 | 12.8 | 87 | 6690 | 31.7 | 612 | 21.59 | 77% |
| APC E 10x5 | 1 | 7.8 | 15.55 | 121 | 7380 | 34.9 | 757 | 26.70 | 74% |
| APC E 10x5 | 1 | 8.7 | 18.25 | 158 | 8010 | 37.9 | 891 | 31.43 | 72% |
| APC E 10x5 | 1 | 9.7 | 21 | 203 | 8610 | 40.8 | 1034 | 36.47 | 69% |
| APC E 10x5 | 1 | 10.7 | 23.7 | 253 | 9270 | 43.9 | 1179 | 41.59 | 67% |
| GWS HD 11x7 | 1 | 7.4 | 19.7 | 145 | 6240 | 41.4 | 870 | 30.69 | 66% |
| APC E 11x7 | 1 | 7.5 | 21.1 | 158 | 6060 | 40.2 | 848 | 29.91 | 63% |
| APC E 12x6 | 1 | 7.4 | 21.8 | 161 | 5880 | 33.4 | 963 | 33.97 | 62% |
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
| GWS HD 12x6 | 1 | 7.4 | 21.2 | 156 | 6000 | 34.1 | 948 | 33.44 | 63% |
