Suppo - A2217/12



Specifications

  • Type: Outrunner
  • Weight: 65.00g (2.29oz)
  • Diameter: 27.60mm (1.09in)
  • Length: 31.60mm (1.24in)
  • Shaft Diameter: 3.00mm (0.12in)
  • Maximum Amps: 15

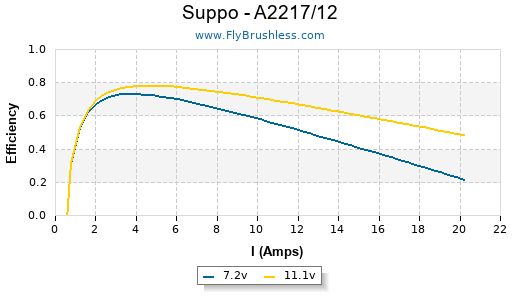

Constants

  • kV: 785
  • Rm: 0.278
  • Io: 0.55



Io Test Data

Dr Kiwi test results
Volts Amps RPM
7 0.45 5400
8 0.5 6160
10 0.55 7690

Test Data

Dr Kiwi test results
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
GWS HD 10x6 1 7 3.95 27 4650 26.4 295 10.41 85%
GWS HD 10x6 1 7.9 4.75 37 5190 29.5 365 12.87 84%
GWS HD 10x6 1 8.9 5.7 50 5760 32.7 446 15.73 82%
GWS HD 10x6 1 9.9 6.75 66 6270 35.6 539 19.01 81%
GWS HD 10x6 1 10.9 7.7 83 6720 38.2 619 21.83 79%
GWS HD 10x6 1 14 11.15 156 8160 46.4 923 32.56 74%
GWS HD 11x7 1 6.9 5.55 38 4350 28.8 396 13.97 80%
GWS HD 11x7 1 7.9 6.7 52 4770 31.6 488 17.21 77%
GWS HD 11x7 1 8.9 7.9 70 5220 34.6 588 20.74 75%
GWS HD 11x7 1 9.9 9.3 92 5640 37.4 697 24.59 73%
GWS HD 11x7 1 10.9 10.6 115 6090 40.4 798 28.15 71%
GWS HD 11x7 1 14 14.9 208 7200 47.7 1139 40.18 66%
APC E 12x6 1 10.8 11.9 128 5790 32.9 873 30.79 68%
GWS HD 12x8 1 6.9 7.4 51 3930 29.8 478 16.86 73%
GWS HD 12x8 1 7.9 8.9 70 4350 33.0 587 20.71 70%
GWS HD 12x8 1 8.9 10.5 93 4680 35.5 693 24.44 67%
GWS HD 12x8 1 9.9 12.05 119 5040 38.2 803 28.32 65%
