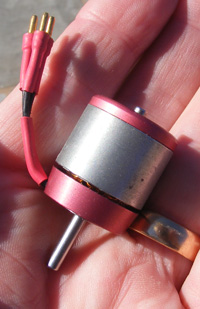

Ikarus - 2023011
Specifications
- Type: Outrunner
- Weight: 33.00g (1.16oz)
- Diameter: 22.00mm (0.87in)
- Length: 25.30mm (1.00in)
- Shaft Diameter: 3.17mm (0.12in)
- Maximum Amps: 8
Constants
- kV: 1250
- Rm: 0.303
- Io: 0.45
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 0.35 | 8590 |
| 8 | 0.4 | 9780 |
| 10 | 0.45 | 12190 |
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| Zagi Carbon 5.1x4.9 | 1 | 6.9 | 2.05 | 14 | 8100 | 37.6 | 83 | 2.93 | 94% |
| Zagi Carbon 5.1x4.9 | 1 | 7.8 | 2.45 | 19 | 9120 | 42.3 | 104 | 3.67 | 94% |
| Zagi Carbon 5.1x4.9 | 1 | 8.9 | 2.9 | 25 | 10170 | 47.2 | 130 | 4.59 | 91% |
| Zagi Carbon 5.1x4.9 | 1 | 9.8 | 3.4 | 33 | 11160 | 51.8 | 159 | 5.61 | 91% |
| Zagi Carbon 5.1x4.9 | 1 | 10.8 | 3.95 | 42 | 12090 | 56.1 | 187 | 6.60 | 90% |
| Zagi Carbon 5.1x4.9 | 1 | 14.4 | 6.1 | 87 | 15360 | 71.3 | 305 | 10.76 | 85% |
| APC E 5.5x4.5 | 1 | 6.9 | 2.4 | 16 | 7950 | 33.9 | 78 | 2.75 | 92% |
| APC E 5.5x4.5 | 1 | 7.8 | 2.9 | 22 | 8910 | 38.0 | 101 | 3.56 | 91% |
| APC E 5.5x4.5 | 1 | 8.8 | 3.5 | 30 | 9900 | 42.2 | 124 | 4.37 | 90% |
| APC E 5.5x4.5 | 1 | 9.8 | 4 | 39 | 10830 | 46.1 | 148 | 5.22 | 88% |
| APC E 5.5x4.5 | 1 | 10.8 | 4.7 | 50 | 11670 | 49.7 | 180 | 6.35 | 86% |
| Aeronaut 6.5x4 | 1 | 6.9 | 3 | 20 | 7650 | 29.0 | 142 | 5.01 | 89% |
| Aeronaut 6.5x4 | 1 | 7.8 | 3.6 | 28 | 8580 | 32.5 | 178 | 6.28 | 88% |
| Aeronaut 6.5x4 | 1 | 8.8 | 4.2 | 36 | 9510 | 36.0 | 227 | 8.01 | 86% |
| Aeronaut 6.5x4 | 1 | 9.8 | 4.9 | 48 | 10380 | 39.3 | 276 | 9.74 | 85% |
| Aeronaut 6.5x4 | 1 | 10.8 | 5.6 | 60 | 11220 | 42.5 | 323 | 11.39 | 83% |
| GWS HD 7x3.5 | 1 | 6.8 | 2.7 | 18 | 8310 | 27.5 | 143 | 5.04 | 98% |
| GWS HD 7x3.5 | 1 | 6.9 | 2.4 | 16 | 7950 | 26.4 | 141 | 4.97 | 92% |
| GWS HD 7x3.5 | 1 | 7.8 | 3.25 | 25 | 9390 | 31.1 | 185 | 6.53 | 96% |
| GWS HD 7x3.5 | 1 | 7.9 | 2.95 | 23 | 8970 | 29.7 | 183 | 6.46 | 91% |
| GWS HD 7x3.5 | 1 | 8.8 | 3.5 | 30 | 9870 | 32.7 | 226 | 7.97 | 90% |
| GWS HD 7x3.5 | 1 | 8.8 | 3.8 | 33 | 10290 | 34.1 | 225 | 7.94 | 94% |
| GWS HD 7x3.5 | 1 | 9.8 | 4.1 | 40 | 10830 | 35.9 | 272 | 9.59 | 88% |
| GWS HD 7x3.5 | 1 | 9.8 | 4.4 | 43 | 11220 | 37.2 | 274 | 9.67 | 92% |
| GWS HD 7x3.5 | 1 | 10.7 | 5 | 53 | 12060 | 40.0 | 323 | 11.39 | 90% |
| GWS HD 7x3.5 | 1 | 10.7 | 4.7 | 50 | 11700 | 38.8 | 326 | 11.50 | 87% |
| APC SF 7x4 | 1 | 6.8 | 3.9 | 26 | 7170 | 27.2 | 205 | 7.23 | 84% |
| APC SF 7x4 | 1 | 6.8 | 4.1 | 27 | 7560 | 28.6 | 208 | 7.34 | 89% |
| APC SF 7x4 | 1 | 7.8 | 4.75 | 37 | 8010 | 30.3 | 255 | 8.99 | 82% |
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
| APC SF 7x4 | 1 | 7.8 | 4.95 | 38 | 8370 | 31.7 | 260 | 9.17 | 86% |
| APC SF 7x4 | 1 | 8.7 | 5.8 | 50 | 9060 | 34.3 | 314 | 11.08 | 83% |
| APC SF 7x4 | 1 | 8.7 | 5.7 | 49 | 8700 | 33.0 | 310 | 10.93 | 80% |
| APC SF 7x4 | 1 | 9.7 | 6.7 | 64 | 9450 | 35.8 | 368 | 12.98 | 78% |
| APC SF 7x4 | 1 | 9.7 | 6.7 | 64 | 9690 | 36.7 | 363 | 12.80 | 80% |
| APC SF 7x4 | 1 | 10.6 | 7.7 | 81 | 10050 | 38.1 | 423 | 14.92 | 76% |
| APC SF 7x4 | 1 | 10.7 | 7.6 | 81 | 10380 | 39.3 | 420 | 14.82 | 78% |
| APC E 7x5 | 1 | 6.8 | 4.4 | 29 | 6960 | 33.0 | 199 | 7.02 | 82% |
| APC E 7x5 | 1 | 7.7 | 5.35 | 41 | 7770 | 36.8 | 254 | 8.96 | 81% |
| APC E 7x5 | 1 | 8.7 | 6.25 | 54 | 8490 | 40.2 | 305 | 10.76 | 78% |
| APC E 7x5 | 1 | 9.7 | 7.25 | 70 | 9180 | 43.5 | 361 | 12.73 | 76% |
| APC E 7x5 | 1 | 10.6 | 8.1 | 85 | 9750 | 46.2 | 413 | 14.57 | 74% |
| GWS HD 8x4 | 1 | 6.8 | 4.7 | 31 | 7320 | 27.7 | 252 | 8.89 | 86% |
| GWS HD 8x4 | 1 | 6.8 | 4.45 | 30 | 6900 | 26.1 | 250 | 8.82 | 81% |
| GWS HD 8x4 | 1 | 7.8 | 5.4 | 42 | 7620 | 28.9 | 314 | 11.08 | 78% |
| GWS HD 8x4 | 1 | 7.8 | 5.6 | 43 | 8100 | 30.7 | 310 | 10.93 | 83% |
| GWS HD 8x4 | 1 | 8.7 | 6.45 | 56 | 8340 | 31.6 | 385 | 13.58 | 77% |
| GWS HD 8x4 | 1 | 8.8 | 6.4 | 56 | 8730 | 33.1 | 368 | 12.98 | 79% |
| GWS HD 8x4 | 1 | 9.7 | 7.3 | 70 | 9000 | 34.1 | 444 | 15.66 | 74% |
| GWS HD 8x4 | 1 | 9.7 | 7.6 | 73 | 9360 | 35.5 | 442 | 15.59 | 77% |
| GWS HD 8x4 | 1 | 10.6 | 8.4 | 89 | 9600 | 36.4 | 505 | 17.81 | 72% |
| GWS HD 8x4 | 1 | 10.6 | 8.5 | 90 | 9930 | 37.6 | 501 | 17.67 | 75% |
| GWS HD - black 8x4 | 1 | 6.8 | 4.35 | 29 | 6990 | 26.5 | 250 | 8.82 | 82% |
| GWS HD - black 8x4 | 1 | 7.7 | 5.25 | 40 | 7710 | 29.2 | 311 | 10.97 | 80% |
| GWS HD - black 8x4 | 1 | 8.7 | 6.15 | 53 | 8430 | 31.9 | 370 | 13.05 | 78% |
| GWS HD - black 8x4 | 1 | 9.6 | 7.2 | 69 | 9120 | 34.5 | 438 | 15.45 | 76% |
| GWS HD - black 8x4 | 1 | 10.6 | 8.25 | 87 | 9750 | 36.9 | 500 | 17.64 | 74% |
| GWS HD 9x5 | 1 | 6.3 | 6.2 | 39 | 5580 | 26.4 | 305 | 10.76 | 71% |
| GWS HD 9x5 | 1 | 6.7 | 6.6 | 44 | 5880 | 27.8 | 340 | 11.99 | 70% |
| GWS HD 9x5 | 1 | 6.7 | 7 | 46 | 5940 | 28.1 | 340 | 11.99 | 71% |
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
| GWS HD 9x5 | 1 | 6.7 | 6.7 | 44 | 6000 | 28.4 | 356 | 12.56 | 72% |
| GWS HD 9x5 | 1 | 7.6 | 7.8 | 59 | 6450 | 30.5 | 417 | 14.71 | 68% |
| GWS HD 9x5 | 1 | 7.6 | 8.1 | 61 | 6450 | 30.5 | 404 | 14.25 | 68% |
| GWS HD 9x5 | 1 | 7.7 | 7.9 | 60 | 6540 | 31.0 | 427 | 15.06 | 68% |
| GWS HD 9x5 | 1 | 8.7 | 9.1 | 79 | 7020 | 33.2 | 488 | 17.21 | 65% |
| Ikarus Shockflyer 9x5 | 1 | 6.6 | 8.5 | 56 | 5190 | 24.6 | 340 | 11.99 | 63% |
