Suppo - A2814/8
Specifications
- Type: Outrunner
- Weight: 103.00g (3.63oz)
- Diameter: 35.10mm (1.38in)
- Length: 37.00mm (1.46in)
- Shaft Diameter: 4.00mm (0.16in)
- Maximum Amps: 30

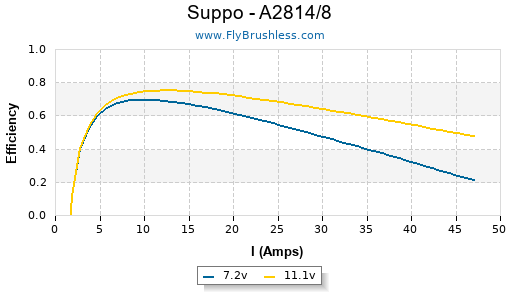

Constants
- kV: 1105
- Rm: 0.12
- Io: 1.65
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 1.5 | 7530 |
| 8 | 1.6 | 8620 |
| 10 | 1.65 | 10760 |
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| GWS HD 9x5 | 1 | 7.9 | 9.55 | 75 | 7350 | 34.8 | 546 | 19.26 | 84% |
| GWS HD 9x5 | 1 | 7.9 | 7.8 | 61 | 6570 | 31.1 | 423 | 14.92 | 75% |
| GWS HD 9x5 | 1 | 8.8 | 11.4 | 100 | 8190 | 38.8 | 670 | 23.63 | 84% |
| GWS HD 9x5 | 1 | 9.8 | 13.25 | 129 | 8880 | 42.0 | 810 | 28.57 | 82% |
| GWS HD 10x6 | 1 | 6.9 | 10.05 | 69 | 6360 | 36.1 | 540 | 19.05 | 83% |
| GWS HD 10x6 | 1 | 7.8 | 12.2 | 95 | 7080 | 40.2 | 681 | 24.02 | 82% |
| GWS HD 10x6 | 1 | 8.8 | 14.4 | 126 | 7800 | 44.3 | 820 | 28.92 | 80% |
| GWS HD 10x6 | 1 | 9.8 | 16.9 | 165 | 8490 | 48.2 | 982 | 34.64 | 78% |
| GWS HD 10x6 | 1 | 10.8 | 19.1 | 206 | 9120 | 51.8 | 1131 | 39.89 | 76% |
| GWS HD 11x7 | 1 | 6.8 | 14.7 | 99 | 5820 | 38.6 | 745 | 26.28 | 77% |
| GWS HD 11x7 | 1 | 7.7 | 17.55 | 135 | 6450 | 42.8 | 914 | 32.24 | 76% |
| GWS HD 11x7 | 1 | 8.7 | 20.5 | 178 | 7020 | 46.5 | 1095 | 38.62 | 73% |
| GWS HD 11x7 | 1 | 10.7 | 27 | 288 | 8070 | 53.5 | 1454 | 51.29 | 68% |
| GWS HD 12x8 | 1 | 7.7 | 22.4 | 172 | 5850 | 44.3 | 1062 | 37.46 | 69% |
| GWS HD 12x8 | 1 | 11.3 | 37 | 418 | 7500 | 56.8 | 1800 | 63.49 | 60% |
