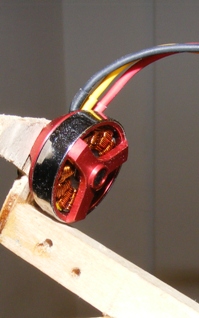

Strecker - 195-03 74
Specifications
- Type: Outrunner
- Weight: 14.00g (0.49oz)
- Shaft Diameter: 2.00mm (0.08in)
- Maximum Amps: 6
Constants
- kV: 1890
- Rm: 0.6
- Io: 0.35
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 10 | 0.35 | 18330 |
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| Gunther 4.92x4.33 | 1 | 7 | 3 | 21 | 9810 | 40.2 | 135 | 4.76 | 74% |
| Gunther 4.92x4.33 | 1 | 7.4 | 3.3 | 24 | 10230 | 42.0 | 147 | 5.19 | 73% |
| Gunther 4.92x4.33 | 1 | 7.9 | 3.55 | 28 | 10740 | 44.0 | 162 | 5.71 | 72% |
| Gunther 4.92x4.33 | 1 | 8.9 | 4.3 | 38 | 11700 | 48.0 | 194 | 6.84 | 70% |
| Gunther 4.92x4.33 | 1 | 9.9 | 4.9 | 48 | 12510 | 51.3 | 224 | 7.90 | 67% |
| Gunther 4.92x4.33 | 1 | 10.9 | 5.5 | 59 | 13260 | 54.4 | 253 | 8.92 | 64% |
| GWS HD 5x3 | 1 | 7 | 1.9 | 13 | 11010 | 31.3 | 111 | 3.92 | 83% |
| GWS HD 5x3 | 1 | 7.4 | 2.1 | 15 | 11580 | 32.9 | 125 | 4.41 | 83% |
| GWS HD 5x3 | 1 | 7.9 | 2.3 | 18 | 12330 | 35.0 | 140 | 4.94 | 83% |
| GWS HD 5x3 | 1 | 8.9 | 2.7 | 24 | 13500 | 38.4 | 169 | 5.96 | 80% |
| GWS HD 5x3 | 1 | 9.9 | 3.15 | 31 | 14670 | 41.7 | 200 | 7.05 | 78% |
| GWS HD 5x3 | 1 | 10.9 | 3.65 | 39 | 15780 | 44.8 | 233 | 8.22 | 77% |
| Zagi Carbon 5.1x4.9 | 1 | 7 | 3.3 | 23 | 9540 | 44.3 | 130 | 4.59 | 72% |
| Zagi Carbon 5.1x4.9 | 1 | 7.4 | 3.6 | 26 | 9870 | 45.8 | 141 | 4.97 | 71% |
| Zagi Carbon 5.1x4.9 | 1 | 7.9 | 3.95 | 31 | 10350 | 48.0 | 156 | 5.50 | 69% |
| Zagi Carbon 5.1x4.9 | 1 | 8.9 | 4.65 | 41 | 11130 | 51.6 | 181 | 6.38 | 66% |
| Zagi Carbon 5.1x4.9 | 1 | 9.9 | 5.2 | 51 | 11940 | 55.4 | 208 | 7.34 | 64% |
| Zagi Carbon 5.1x4.9 | 1 | 10.9 | 6 | 65 | 12690 | 58.9 | 236 | 8.32 | 62% |
| GWS HD 6x3 | 1 | 7 | 2.95 | 20 | 9900 | 28.1 | 162 | 5.71 | 75% |
| GWS HD 6x3 | 1 | 7.4 | 3.2 | 23 | 10290 | 29.2 | 178 | 6.28 | 74% |
| GWS HD 6x3 | 1 | 7.9 | 3.5 | 27 | 10860 | 30.9 | 200 | 7.05 | 73% |
| GWS HD 6x3 | 1 | 8.9 | 4.15 | 36 | 11790 | 33.5 | 237 | 8.36 | 70% |
| GWS HD 6x3 | 1 | 9.9 | 4.85 | 48 | 12570 | 35.7 | 272 | 9.59 | 67% |
| GWS HD 6x3 | 1 | 10.9 | 5.5 | 59 | 13350 | 37.9 | 311 | 10.97 | 65% |
| Wes CF 16/12 6.3x4.7 | 1 | 6.4 | 4.3 | 27 | 7410 | 33.0 | 140 | 4.94 | 61% |
| Wes CF 16/12 6.3x4.7 | 1 | 7 | 4.75 | 33 | 7620 | 33.9 | 156 | 5.50 | 58% |
| GWS HD 7x3.5 | 1 | 7 | 3.7 | 25 | 9120 | 30.2 | 193 | 6.81 | 69% |
| GWS HD 7x3.5 | 1 | 7.4 | 4 | 29 | 9420 | 31.2 | 208 | 7.34 | 67% |
| APC SF 7x4 | 1 | 7 | 5.05 | 35 | 7350 | 27.8 | 207 | 7.30 | 56% |
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
| APC SF 7x4 | 1 | 7.4 | 5.3 | 39 | 7500 | 28.4 | 219 | 7.72 | 54% |
| GWS HD 8x4 | 1 | 7 | 5.85 | 40 | 6660 | 25.2 | 244 | 8.61 | 50% |
| GWS HD 8x4 | 1 | 7.4 | 6.1 | 45 | 6780 | 25.7 | 250 | 8.82 | 48% |
| Wes CF 20/10 8x4 | 1 | 6.5 | 5.8 | 37 | 5580 | 21.1 | 182 | 6.42 | 45% |
| Wes CF 20/10 8x4 | 1 | 6.8 | 6.1 | 41 | 5670 | 21.5 | 194 | 6.84 | 44% |
