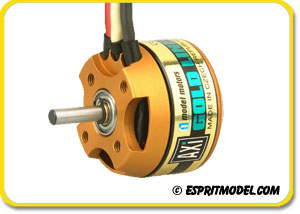

AXI - 2208/26
Specifications
- Type: Outrunner
- Weight: 45.00g (1.59oz)
- Diameter: 27.70mm (1.09in)
- Length: 26.00mm (1.02in)
- Shaft Diameter: 3.17mm (0.12in)
- Maximum Amps: 11
Constants
- kV: 1420
- Rm: 0.155
- Io: 0.6
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| APC E 5.25x6.25 | 1 | 7 | 3.8 | 26 | 8730 | 51.7 | 84 | 2.96 | 88% |
| APC E 5.25x6.25 | 1 | 8 | 4.8 | 38 | 9960 | 59.0 | 109 | 3.84 | 88% |
| APC E 5.25x6.25 | 1 | 8.9 | 5.7 | 50 | 10950 | 64.8 | 133 | 4.69 | 87% |
| APC E 5.25x6.25 | 1 | 9.9 | 6.7 | 66 | 11970 | 70.8 | 159 | 5.61 | 85% |
| APC E 5.25x6.25 | 1 | 10.9 | 7.75 | 84 | 12990 | 76.9 | 187 | 6.60 | 84% |
| APC E 6x5.5 | 1 | 7 | 4.5 | 31 | 8580 | 44.7 | 132 | 4.66 | 86% |
| APC E 6x5.5 | 1 | 7.9 | 5.65 | 44 | 9660 | 50.3 | 170 | 6.00 | 86% |
| APC E 6x5.5 | 1 | 8.9 | 6.7 | 59 | 10710 | 55.8 | 212 | 7.48 | 85% |
| APC E 6x5.5 | 1 | 9.9 | 7.7 | 76 | 11730 | 61.1 | 257 | 9.07 | 83% |
| APC E 6x5.5 | 1 | 10.9 | 8.8 | 95 | 12720 | 66.2 | 305 | 10.76 | 82% |
| GWS HD 7x3.5 | 1 | 6.9 | 3.35 | 23 | 9000 | 29.8 | 186 | 6.56 | 92% |
| GWS HD 7x3.5 | 1 | 7.9 | 4.2 | 33 | 10200 | 33.8 | 235 | 8.29 | 91% |
| GWS HD 7x3.5 | 1 | 8.9 | 5.05 | 44 | 11370 | 37.7 | 302 | 10.65 | 90% |
| GWS HD 7x3.5 | 1 | 9.9 | 5.95 | 58 | 12450 | 41.3 | 363 | 12.80 | 89% |
| GWS HD 7x3.5 | 1 | 10.9 | 6.9 | 75 | 13410 | 44.5 | 432 | 15.24 | 87% |
| APC E 7x5 | 1 | 6.9 | 6.5 | 44 | 8220 | 38.9 | 277 | 9.77 | 84% |
| APC E 7x5 | 1 | 7.9 | 8.05 | 63 | 9180 | 43.5 | 358 | 12.63 | 82% |
| APC E 7x5 | 1 | 8.9 | 9.65 | 85 | 9960 | 47.2 | 427 | 15.06 | 79% |
| APC E 7x5 | 1 | 9.9 | 11.15 | 110 | 10800 | 51.1 | 506 | 17.85 | 77% |
| APC E 7x5 | 1 | 10.9 | 13.1 | 142 | 11580 | 54.8 | 605 | 21.34 | 75% |
| GWS HD 8x4 | 1 | 6.9 | 6.75 | 46 | 8190 | 31.0 | 356 | 12.56 | 84% |
| GWS HD 8x4 | 1 | 7.9 | 8.1 | 63 | 9120 | 34.5 | 436 | 15.38 | 81% |
| GWS HD 8x4 | 1 | 8.9 | 9.85 | 87 | 9990 | 37.8 | 540 | 19.05 | 79% |
| GWS HD 8x4 | 1 | 9.9 | 11.5 | 113 | 10800 | 40.9 | 635 | 22.40 | 77% |
| GWS HD 8x4 | 1 | 10.9 | 13.3 | 144 | 11550 | 43.8 | 734 | 25.89 | 75% |
| GWS HD 9x5 | 1 | 6.9 | 10.5 | 72 | 7140 | 33.8 | 500 | 17.64 | 73% |
