AX - AX-2205C 1400
Specifications
- Type: Outrunner
- Weight: 26.00g (0.92oz)
- Diameter: 28.00mm (1.10in)
- Length: 24.00mm (0.94in)
- Shaft Diameter: 3.00mm (0.12in)
- Maximum Amps: 10

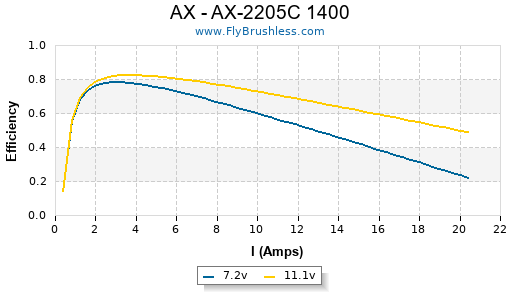

Constants
- kV: 1448
- Rm: 0.274
- Io: 0.35
Io Test Data
Bruce Abbot test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 0.35 | 10004 |
| 10.5 | 0.45 | 15004 |
Test Data
Bruce Abbot test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| GWS EP 6x3 | 1 | 7 | 2.2 | 15 | 9226 | 26.2 | 131 | 4.62 | 91% |
| GWS EP 6x3 | 1 | 10.5 | 4.22 | 44 | 13268 | 37.7 | 281 | 9.91 | 87% |
| APC E 6x4 | 1 | 10.5 | 5.95 | 62 | 12481 | 47.3 | 285 | 10.05 | 82% |
| APC 6x4 | 1 | 10.5 | 5.99 | 62 | 12458 | 47.2 | 324 | 11.43 | 82% |
| GWS EP 6x5 | 1 | 7 | 4.31 | 30 | 8358 | 39.6 | 180 | 6.35 | 82% |
| GWS EP 7x3.5 | 1 | 7 | 3.07 | 21 | 8859 | 21.0 | 181 | 6.38 | 87% |
| GWS EP 7x3.5 | 1 | 10.5 | 5.72 | 60 | 12577 | 29.8 | 376 | 13.26 | 83% |
| APC SF 7x4 | 1 | 10.5 | 9.47 | 99 | 10870 | 41.2 | 487 | 17.18 | 71% |
| GWS EP 8x4 | 1 | 7 | 5.61 | 39 | 7822 | 29.6 | 311 | 10.97 | 77% |
| GWS EP 8x4 | 1 | 10.5 | 10.1 | 106 | 10588 | 40.1 | 576 | 20.32 | 70% |
| GWS EP 8x4.3 | 1 | 7 | 6.57 | 45 | 7438 | 30.3 | 331 | 11.68 | 73% |
| GWS EP 9x5 | 1 | 7 | 8.49 | 59 | 6625 | 28.2 | 412 | 14.53 | 65% |
