TurboPropRC - TP 220100
Specifications
- Type: Outrunner
- Weight: 45.00g (1.59oz)
- Diameter: 27.70mm (1.09in)
- Length: 27.25mm (1.07in)
- Shaft Diameter: 3.00mm (0.12in)
- Maximum Amps: 10

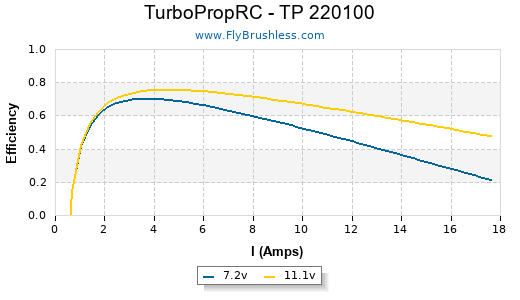

Constants
- kV: 1080
- Rm: 0.32
- Io: 0.6
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 0.5 | 7290 |
| 8 | 0.55 | 8280 |
| 10.01 | 0.6 | 10350 |
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| GWS HD 8x4 | 1 | 6.9 | 3.2 | 22 | 6480 | 24.6 | 216 | 7.62 | 87% |
| GWS HD 8x4 | 1 | 7.9 | 3.95 | 31 | 7260 | 27.5 | 275 | 9.70 | 85% |
| GWS HD 8x4 | 1 | 8.9 | 4.7 | 41 | 8070 | 30.6 | 341 | 12.03 | 84% |
| GWS HD 8x4 | 1 | 9.9 | 5.5 | 54 | 8820 | 33.4 | 412 | 14.53 | 82% |
| GWS HD 8x4 | 1 | 10.9 | 6.3 | 68 | 9480 | 35.9 | 482 | 17.00 | 81% |
| GWS HD 9x5 | 1 | 6.9 | 5.35 | 36 | 5880 | 27.8 | 340 | 11.99 | 79% |
| GWS HD 9x5 | 1 | 7.9 | 6.4 | 50 | 6480 | 30.7 | 418 | 14.74 | 76% |
| GWS HD 9x5 | 1 | 8.9 | 7.65 | 68 | 7140 | 33.8 | 509 | 17.95 | 74% |
| GWS HD 9x5 | 1 | 9.9 | 8.9 | 88 | 7710 | 36.5 | 598 | 21.09 | 72% |
| GWS HD 10x6 | 1 | 6.9 | 6.95 | 47 | 5430 | 30.9 | 406 | 14.32 | 73% |
| GWS HD 10x6 | 1 | 7.9 | 8.3 | 65 | 5970 | 33.9 | 499 | 17.60 | 70% |
| GWS HD 10x6 | 1 | 8.9 | 9.65 | 85 | 6420 | 36.5 | 587 | 20.71 | 67% |
| GWS HD 10x6 | 1 | 9.9 | 11.1 | 109 | 6900 | 39.2 | 671 | 23.67 | 65% |
| GWS HD 10x6 | 1 | 10.9 | 12.6 | 137 | 7320 | 41.6 | 760 | 26.81 | 62% |
