KEDA - TR2826/32
Specifications
- Type: Outrunner
- Weight: 47.00g (1.66oz)
- Diameter: 28.00mm (1.10in)
- Length: 26.00mm (1.02in)
- Shaft Diameter: 3.17mm (0.12in)
- Maximum Amps: 10

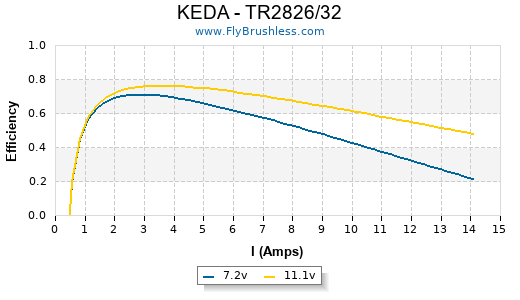

Constants
- kV: 1050
- Rm: 0.4
- Io: 0.45
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 0.35 | 7170 |
| 8 | 0.35 | 8160 |
| 10 | 0.45 | 10300 |
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| GWS HD 7x3.5 | 1 | 6.9 | 1.45 | 10 | 6750 | 22.4 | 98 | 3.46 | 93% |
| GWS HD 7x3.5 | 1 | 7.9 | 1.75 | 13 | 7620 | 25.3 | 127 | 4.48 | 92% |
| GWS HD 7x3.5 | 1 | 8.9 | 2.1 | 18 | 8490 | 28.1 | 163 | 5.75 | 91% |
| GWS HD 7x3.5 | 1 | 9.9 | 2.55 | 25 | 9450 | 31.3 | 204 | 7.20 | 91% |
| GWS HD 7x3.5 | 1 | 10.9 | 2.95 | 32 | 10260 | 34.0 | 247 | 8.71 | 90% |
| GWS HD 8x4 | 1 | 6.9 | 2.8 | 19 | 6270 | 23.8 | 201 | 7.09 | 87% |
| GWS HD 8x4 | 1 | 7.9 | 3.45 | 27 | 7020 | 26.6 | 257 | 9.07 | 85% |
| GWS HD 8x4 | 1 | 8.9 | 4.1 | 36 | 7740 | 29.3 | 312 | 11.01 | 83% |
| GWS HD 8x4 | 1 | 9.9 | 4.8 | 47 | 8430 | 31.9 | 373 | 13.16 | 81% |
| GWS HD 8x4 | 1 | 10.9 | 5.5 | 59 | 9060 | 34.3 | 435 | 15.34 | 79% |
| GWS HD 9x5 | 1 | 6.9 | 4.6 | 31 | 5640 | 26.7 | 304 | 10.72 | 78% |
| GWS HD 9x5 | 1 | 7.9 | 5.6 | 44 | 6210 | 29.4 | 375 | 13.23 | 75% |
| GWS HD 9x5 | 1 | 8.9 | 6.55 | 58 | 6780 | 32.1 | 447 | 15.77 | 73% |
| GWS HD 9x5 | 1 | 9.9 | 7.6 | 75 | 7320 | 34.7 | 528 | 18.62 | 70% |
| GWS HD 9x5 | 1 | 10.8 | 8.7 | 93 | 7770 | 36.8 | 602 | 21.23 | 69% |
