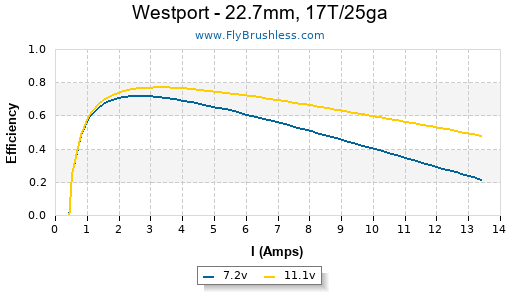

Westport - 22.7mm, 17T/25ga



Specifications

  • Type: Outrunner
  • Weight: 22.00g (0.78oz)
  • Diameter: 26.60mm (1.05in)
  • Length: 11.50mm (0.45in)
  • Shaft Diameter: 3.00mm (0.12in)
  • Maximum Amps: 6

Constants

  • kV: 1605
  • Rm: 0.42
  • Io: 0.4



Io Test Data

Dr Kiwi test results
Volts Amps RPM
7 0.3 11060
8 0.35 12620
10 0.4 15730

Test Data

Dr Kiwi test results
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
APC E 5x5 1 7 2.95 20 9450 44.7 94 3.32 84%
APC E 5x5 1 7.9 3.6 28 10530 49.9 116 4.09 83%
APC E 5x5 1 8.9 4.3 38 11580 54.8 142 5.01 81%
APC E 5x5 1 9.9 5.1 50 12600 59.7 172 6.07 79%
APC E 5x5 1 10.9 5.9 64 13590 64.3 198 6.98 78%
APC E (Broad) 5.1x4.5 1 7 3.45 24 9210 39.2 146 5.15 82%
APC E (Broad) 5.1x4.5 1 8 4.25 34 10170 43.3 181 6.38 79%
APC E (Broad) 5.1x4.5 1 8.9 5.05 44 11130 47.4 216 7.62 78%
APC E (Broad) 5.1x4.5 1 9.9 6.05 59 12090 51.5 254 8.96 76%
APC E (Broad) 5.1x4.5 1 10.9 6.95 75 12780 54.5 292 10.30 73%
Zagi Carbon 5.1x4.9 1 7 2.1 14 9400 43.6 101 3.56 84%
Zagi Carbon 5.1x4.9 1 7.9 3.5 27 10590 49.1 157 5.54 84%
Zagi Carbon 5.1x4.9 1 8.9 4.2 37 11640 54.0 195 6.88 81%
Zagi Carbon 5.1x4.9 1 9.9 5 49 12660 58.7 234 8.25 80%
Zagi Carbon 5.1x4.9 1 10.9 5.8 63 13590 63.1 270 9.52 78%
APC E 5.5x4.5 1 7 3.4 23 9210 39.2 125 4.41 82%
APC E 5.5x4.5 1 7.9 4.2 33 10200 43.5 155 5.47 80%
APC E 5.5x4.5 1 9 5 45 11160 47.6 189 6.67 77%
APC E 5.5x4.5 1 9.9 5.9 58 12030 51.3 222 7.83 76%
APC E 5.5x4.5 1 10.9 6.9 75 12930 55.1 260 9.17 74%
APC E 5.7x3 1 7 2.65 18 9690 27.5 128 4.52 86%
APC E 5.7x3 1 7.9 3.2 25 10830 30.8 160 5.64 85%
APC E 5.7x3 1 8.9 3.8 33 11880 33.8 195 6.88 83%
APC E 5.7x3 1 9.9 4.5 44 12990 36.9 236 8.32 82%
APC E 5.7x3 1 10.9 5.25 57 14040 39.9 280 9.88 80%
GWS HD 7x3.5 1 6.9 3.55 24 9120 30.2 209 7.37 82%
GWS HD 7x3.5 1 7.4 3.95 29 9600 31.8 235 8.29 81%
APC SF 7x4 1 6.9 5.5 37 8040 30.4 269 9.49 73%
APC SF 7x4 1 7.4 6.15 45 8400 31.8 296 10.44 71%
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
APC E 7x5 1 6.9 6.4 44 7530 35.6 262 9.24 68%
APC E 7x5 1 7.4 6.85 50 7740 36.6 275 9.70 65%
