Komodo - KH2204-17
Specifications
- Type: Outrunner
- Weight: 26.00g (0.92oz)
- Diameter: 27.15mm (1.07in)
- Length: 15.25mm (0.60in)
- Shaft Diameter: 3.17mm (0.12in)
- Maximum Amps: 8

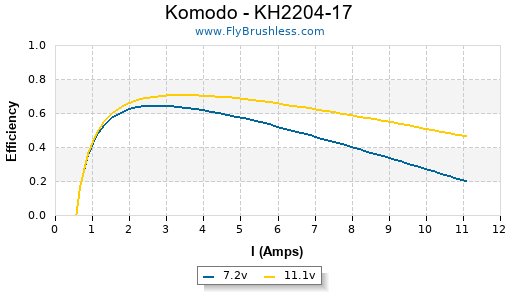

Constants
- kV: 1155
- Rm: 0.514
- Io: 0.55
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 0.45 | 7820 |
| 8 | 0.5 | 8980 |
| 10 | 0.55 | 11130 |
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| Zagi Carbon 5.1x4.9 | 1 | 7 | 1.45 | 10 | 7290 | 33.8 | 76 | 2.68 | 90% |
| Zagi Carbon 5.1x4.9 | 1 | 8 | 1.75 | 14 | 8250 | 38.3 | 95 | 3.35 | 89% |
| Zagi Carbon 5.1x4.9 | 1 | 9 | 2.1 | 18 | 9150 | 42.5 | 118 | 4.16 | 88% |
| Zagi Carbon 5.1x4.9 | 1 | 10 | 2.45 | 24 | 10050 | 46.6 | 143 | 5.04 | 87% |
| Zagi Carbon 5.1x4.9 | 1 | 10.9 | 2.8 | 30 | 10920 | 50.7 | 169 | 5.96 | 87% |
| Zagi Carbon 5.1x4.9 | 1 | 14.7 | 4.35 | 63 | 13980 | 64.9 | 280 | 9.88 | 82% |
| GWS HD 7x3.5 | 1 | 7 | 1.75 | 12 | 7170 | 23.8 | 111 | 3.92 | 89% |
| GWS HD 7x3.5 | 1 | 7.9 | 2.1 | 16 | 8040 | 26.6 | 141 | 4.97 | 88% |
| GWS HD 7x3.5 | 1 | 8.9 | 2.5 | 22 | 8910 | 29.5 | 183 | 6.46 | 87% |
| GWS HD 7x3.5 | 1 | 9.9 | 2.9 | 28 | 9750 | 32.3 | 224 | 7.90 | 85% |
| GWS HD 7x3.5 | 1 | 10.9 | 3.35 | 36 | 10560 | 35.0 | 262 | 9.24 | 84% |
| APC SF 7x6 | 1 | 7 | 3.8 | 26 | 6090 | 34.6 | 181 | 6.38 | 75% |
| APC SF 7x6 | 1 | 7.9 | 4.6 | 36 | 6690 | 38.0 | 221 | 7.80 | 73% |
| APC SF 7x6 | 1 | 8.9 | 5.45 | 48 | 7230 | 41.1 | 261 | 9.21 | 70% |
| APC SF 7x6 | 1 | 9.9 | 6.35 | 62 | 7740 | 44.0 | 305 | 10.76 | 68% |
| APC SF 7x6 | 1 | 10.9 | 7.25 | 79 | 8190 | 46.5 | 342 | 12.06 | 65% |
| GWS RS 7x6 | 1 | 6.9 | 3.95 | 27 | 5970 | 33.9 | 207 | 7.30 | 75% |
| GWS RS 7x6 | 1 | 7.9 | 4.7 | 37 | 6570 | 37.3 | 251 | 8.85 | 72% |
| GWS RS 7x6 | 1 | 8.9 | 5.6 | 49 | 7170 | 40.7 | 300 | 10.58 | 70% |
| GWS RS 7x6 | 1 | 9.9 | 6.45 | 63 | 7650 | 43.5 | 346 | 12.20 | 67% |
| GWS RS 7x6 | 1 | 10.9 | 7.2 | 78 | 8130 | 46.2 | 391 | 13.79 | 65% |
| GWS HD 8x4 | 1 | 6.9 | 3.25 | 22 | 6330 | 24.0 | 215 | 7.58 | 79% |
| GWS HD 8x4 | 1 | 7.9 | 3.9 | 30 | 7050 | 26.7 | 265 | 9.35 | 77% |
| GWS HD 8x4 | 1 | 8.9 | 4.6 | 40 | 7710 | 29.2 | 323 | 11.39 | 75% |
| GWS HD 8x4 | 1 | 9.9 | 5.35 | 52 | 8370 | 31.7 | 379 | 13.37 | 73% |
| GWS HD 8x4 | 1 | 10.9 | 6.05 | 65 | 8910 | 33.8 | 434 | 15.31 | 71% |
| GWS HD 9x5 | 1 | 6.9 | 4.95 | 34 | 5520 | 26.1 | 298 | 10.51 | 69% |
| GWS HD 9x5 | 1 | 7.9 | 5.85 | 46 | 6030 | 28.6 | 357 | 12.59 | 66% |
| GWS HD 9x5 | 1 | 8.9 | 6.8 | 60 | 6480 | 30.7 | 422 | 14.89 | 63% |
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
| GWS HD 9x5 | 1 | 9.9 | 7.75 | 76 | 6930 | 32.8 | 483 | 17.04 | 61% |
Comments
Dr Kiwi on 2011-05-12 07:29:17
Overall length (= shaft length) = 44.87mm
