GPS - HXT C1818-25
Specifications
- Type: Outrunner
- Weight: 12.00g (0.42oz)
- Maximum Amps: 10
Constants
- kV: 3630
- Rm: 0.8
- Io: 0.55
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 0.45 | 24300 |
| 8 | 0.5 | 27600 |
| 10 | 0.55 | 34350 |

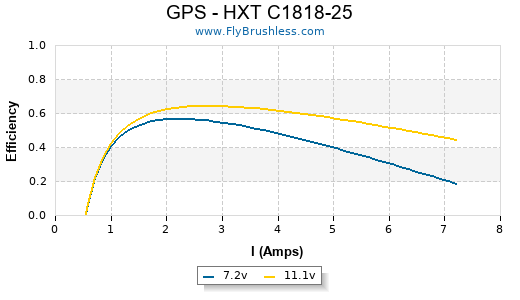

Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| Graupner CAM Speed 3x3 | 1 | 7 | 3.1 | 21 | 16650 | 47.3 | 74 | 2.61 | 66% |
| Graupner CAM Speed 3x3 | 1 | 7.4 | 3.4 | 25 | 17370 | 49.4 | 78 | 2.75 | 65% |
| Graupner CAM Speed 3x3 | 1 | 7.9 | 3.7 | 29 | 18180 | 51.6 | 87 | 3.07 | 63% |
| Graupner CAM Speed 3x3 | 1 | 8.9 | 4.2 | 37 | 19530 | 55.5 | 104 | 3.67 | 60% |
| Graupner CAM Speed 3x3 | 1 | 9.9 | 4.7 | 46 | 20760 | 59.0 | 116 | 4.09 | 58% |
